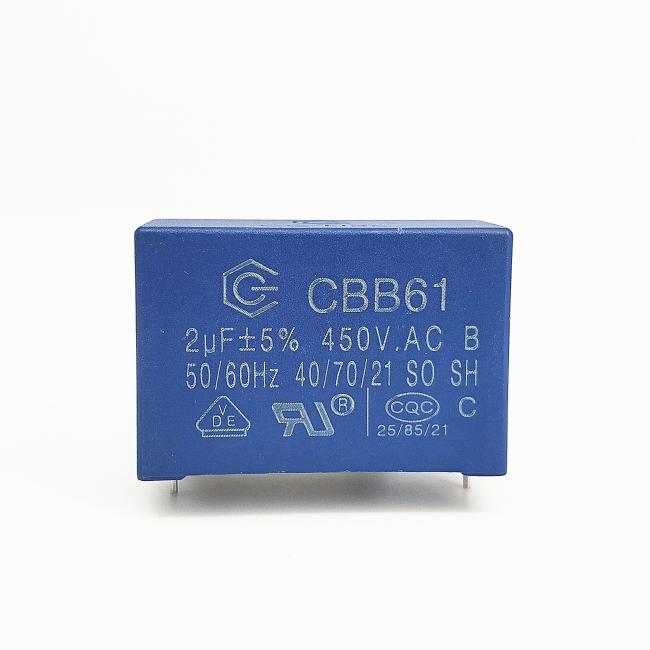

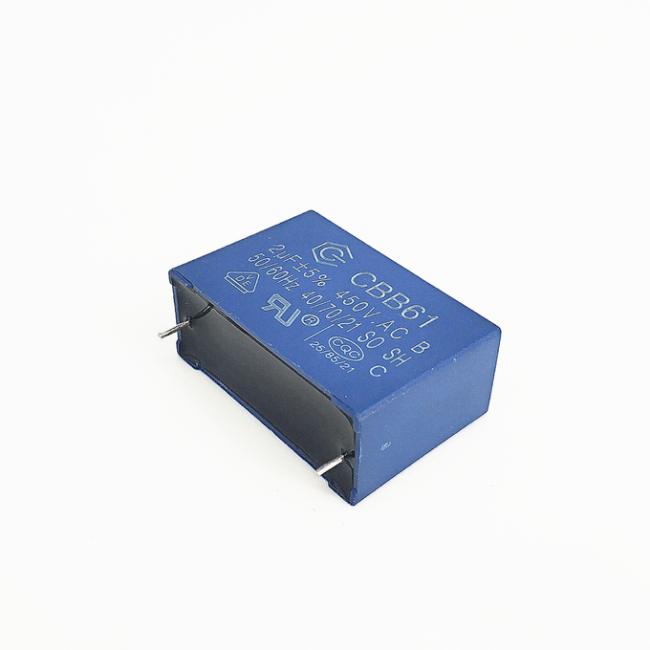

CBB61 450V 2.0UF Starting Running AC Motor CP-1.0mm Self Healing Home AC Capacitor
CBB61 450V 2.0UF Starting Running AC Motor CP-1.0mm Self Healing Home AC Capacitor
The CBB61 capacitor is a flame-retardant epoxy resin encapsulated in a PBT clinker shell by winding polypropylene film as a medium. Motor running capacitors are mostly used in AC motors. The role is to maintain the operation of the motor. Plastic square shell, the leading end is mostly lead wire, pin type or metal insert.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
2.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2.0Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40~+70℃(40/70/21) | |
Outline Drawing
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
