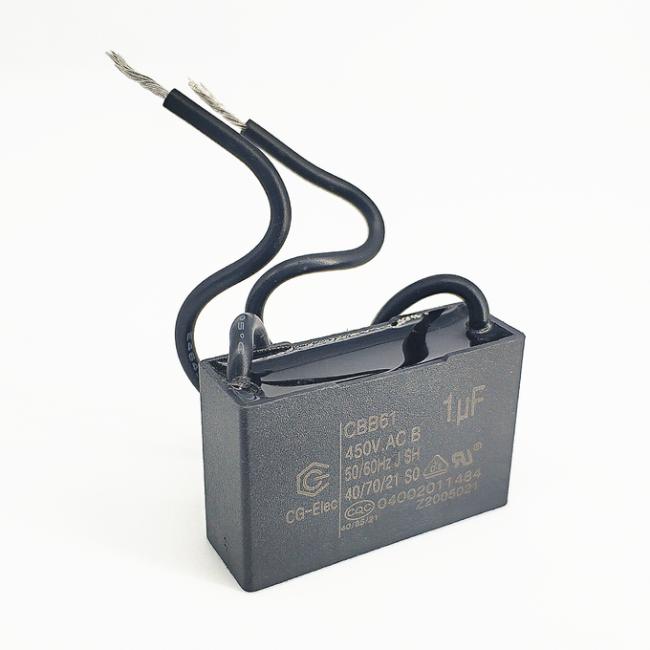

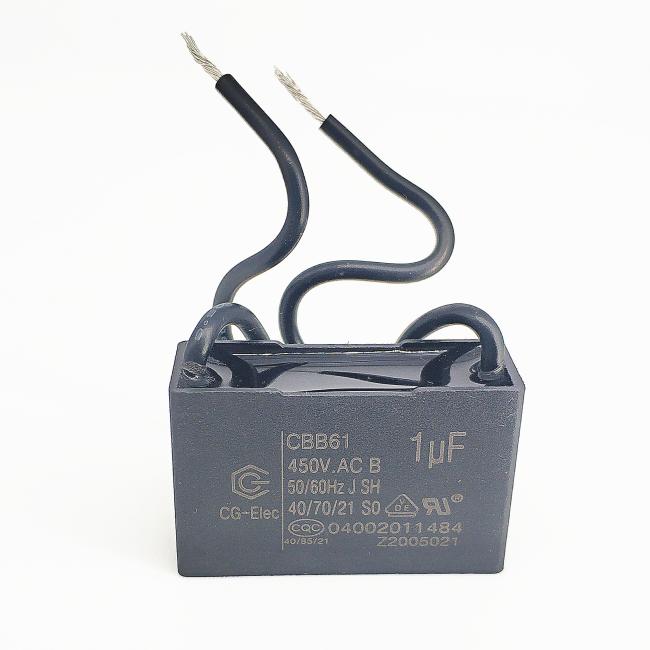

CBB61 Air Conditioner Fan Capacitor 450V 1.0mfd 100 Line Length Self-Healing
CBB61 Air Conditioner Fan Capacitor 450V 1.0mfd 100 Line Length Self-Healing
The main function of commercial air conditioner capacitors is to provide high current when the air conditioner is started to help the motor start. When the motor is started, the capacitor is automatically disconnected to reduce the current consumption. In addition, capacitors can also help adjust the power factor of the air conditioner and improve the efficiency of the air conditioner.
Applications
Mainly used in refrigerators, air conditioners, electric fans, central appliances, electronic products, and so on.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+70℃ ( 40/70/21 ) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
1.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|
Outline Drawing
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packing and Transport
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
