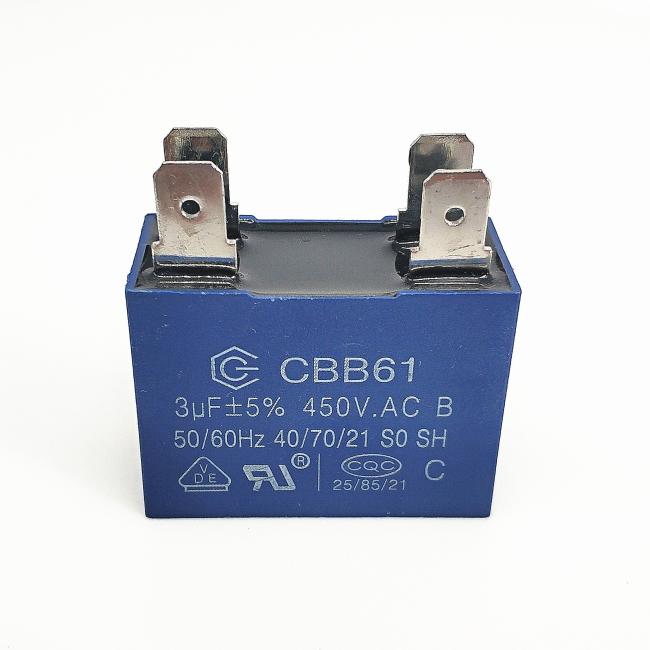

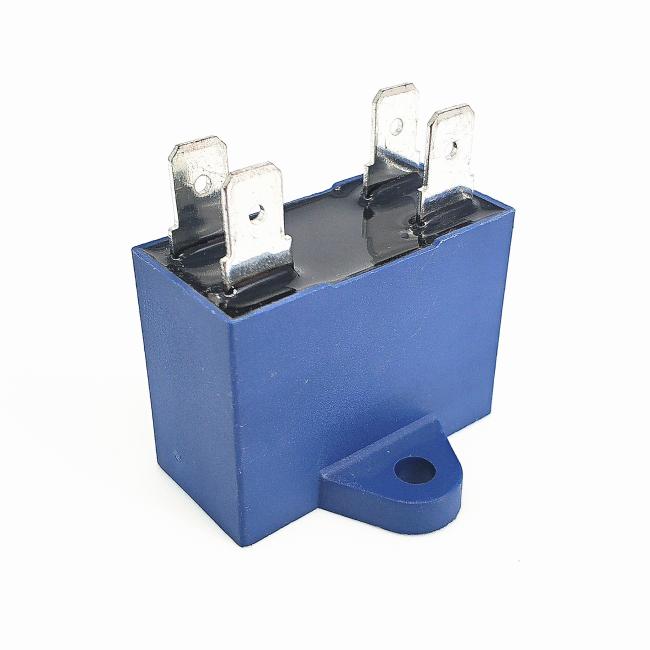

450V 3.0UF Fan Motor Run Capacitor CBB61 Four Quick Connect Terminal Protected 10000AFC
450V 3.0UF Fan Motor Run Capacitor CBB61 Four Quick Connect Terminal Protected 10000AFC
Capacitor is a component that stores electricity and electrical energy, and its structure is mainly composed of components, outlet connecting pieces, insulators, connecting pieces, clamps, outlet bushings and shells. Among them, the component is the basic capacitance unit of the capacitor, and it is also one of the important components. Capacitors play an important role in tuning, bypassing, coupling, filtering and other circuits, so they are widely used in electrical systems.
Applications
It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.
Basic Info.(Techical Parameters)
|
Rated frequency |
50/60Hz |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
3.0UF |
|
|
Capacitance tolerance |
±5% |
|
|
Withstand voltage test |
2.0Un 2S | |
|
Flammability |
UL94V-0 |
|
|
Operating temperature range |
-40~+70℃(40/70/21) | |
Outline Drawing
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Workshop and Transport
Why Choose XWD Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
