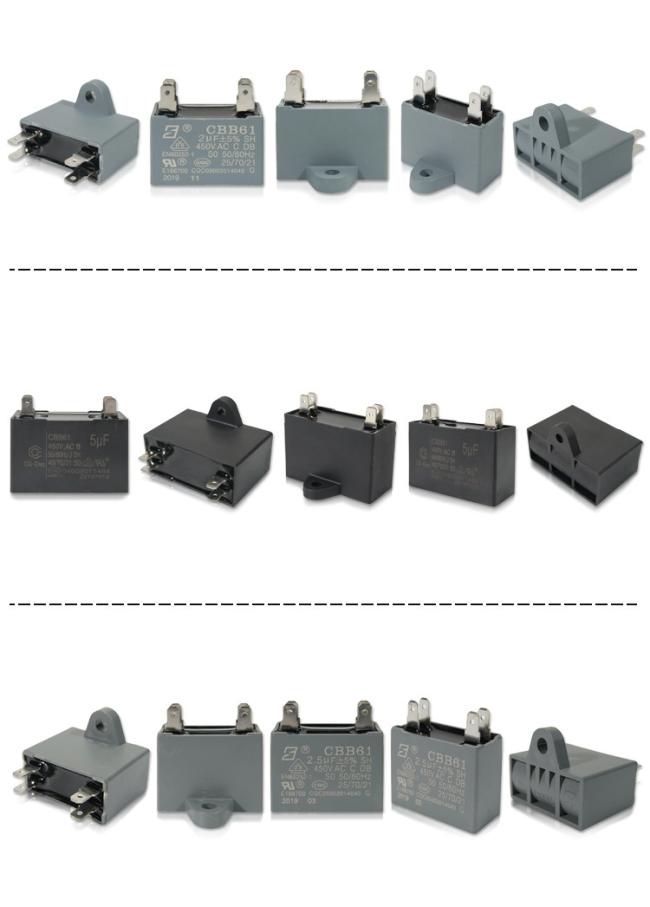

CBB61 450V 2.5UF S3 Explosion Proof Capacitor four Quick Connector terminals
CBB61 450V 2.5UF S3 Explosion Proof Capacitor Four Quick Connector Terminals
Adopting a metalized polypropylene film non inductive winding structure, equipped with a high reliability explosion-proof device.
It has the characteristics of good stability, resistance to impact current, strong overload capacity, low loss, high insulation resistance, long rated working life, excellent self-healing performance, low internal temperature rise, non-toxic and leak free capacitors, and liquid materials, which are conducive to environmental protection.
Applications
Mainly used in refrigerators, air conditioners, motors, water pumps, household appliances, electronic products, etc.
Basic Info.(Techical Parameters)
|
Operation temperature range |
-40℃～+85℃ (40/85/21) |
|
|
Rated Voltage |
450V.AC |
|
|
Capacitance Range |
2.5UF |
|
|
Capacitance tolerance |
±5% |
|
|
Lifetime |
10000 hours | |
|
Flammability |
UL94V-0 |
|
| Operation temperature range | -40℃~+85℃ |
| Rated Voltage | 110V.AC-630V.AC |
| Capacitance Range | 0.1uF~20uF |
| Capacitance tolerance | ±5% (J),±10%(K) |
| Dissipation factor | tgō0.001(at 100Hz) |
| Withstand voltage Between terminals | 2.0Un(10s) |
| Withstand voltage Terminals to case | 2000V.AC |
| Insulation resistance | CXRs>5000s |
| Flame retardation | UL94V-0 |
| Referenced standard | IEC 6025 UL810 GB3667-2005 |
