Round-Shaped Single Capacitance Value 450VAC CBB65 air conditioning Motor Running Capacitor
Price:
Negotiable
MOQ:
50pieces
Delivery Time:
7-20 workdays
Brand:
Xunwande-HN
Product Description
PRODUCT MODEL:
CBB65 model compressor capacitor
PRODUC INTRODUCTION:
Use metallized film irresponsive winding and RoSH metal spray technology,retardant aluminumu case and Rosh insulat-edmedium filling,outlet by electric wire or copper terminal .
MAIN FEATURES:
Small dimension,big capacitance,high stability,good self-hearling,tiny disspiation,small inductance,good anti-explosion performance .
APPLICATION:
The capacitors are mainly apply to the 50/60Hz power supply,it's the essential components for air conditioner and refrigerator motors ,help to start and run single-phase AC motors.
REFERENCE STANARD:IEC60252 ,GB/T3667,EN60252
TECHNICAL PARAMETER
| Rate Voltage | 250V.AC~600V.AC |
| Capacitance | 3~100μF |
| Capacitance Tolerance | ±5%(J),±10%(K) |
| Dissipation Factor | ≤0.2%(100Hz) |
| Climatic Cctegory | -40~105°C |
| Withstand Vlotage |
T-T UL:1.5Un/2S Others :2.0Un/2S |
| T-C ≥ 20000VAC/2S | |
| Life Class | A Class (30000h) |
| B Class(10000h) | |
| C Class(3000h) | |
| D Class (1000h) | |
| Safety Class | P2 |
| Apply Certificate | CQC ,VDE,UL,CUL,CSA |

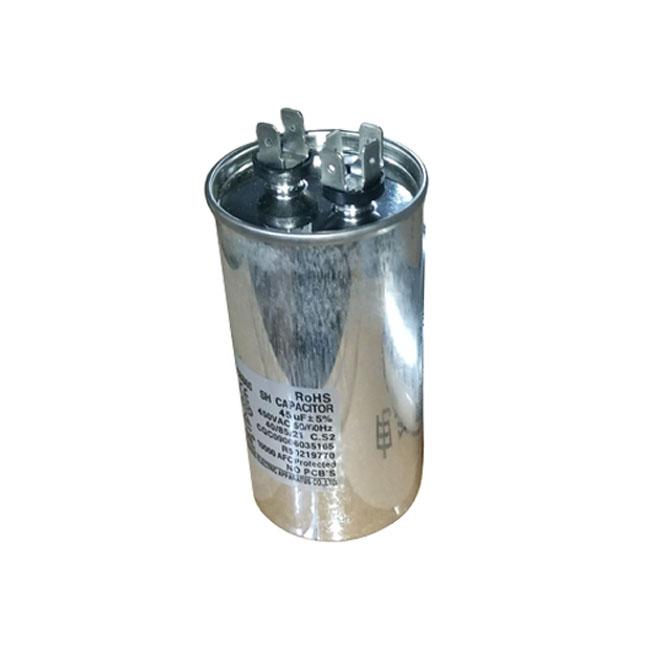

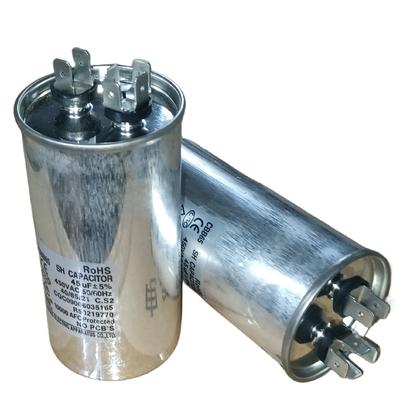

PICTURE:
