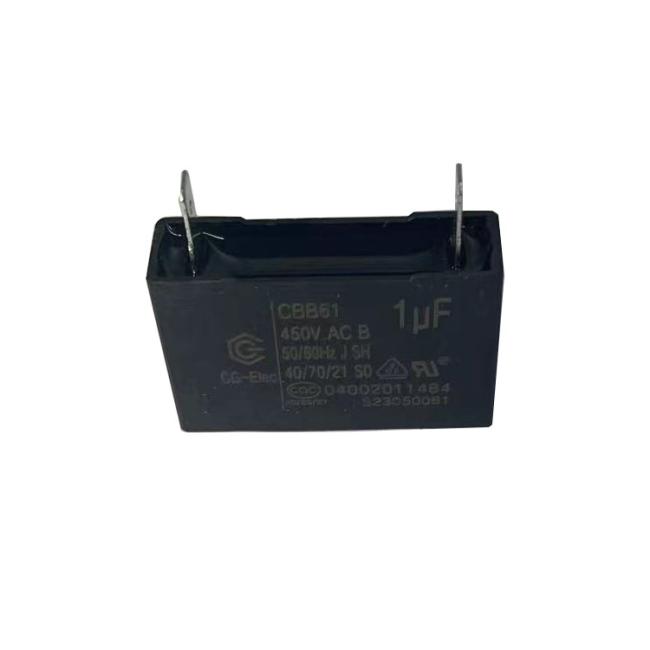

CBB61 450V 1.0UF Retardant Plastic Box Air Conditioner Fan Capacitor
CBB61 450V 1.0UF UL810 94-V0 Retardant Plastic Box Air Conditioner Fan Capacitor with Epoxy Filling
CBB61 type capacitor gengrally use the quadrate anti-flaming plastic shell,epoxy resin packing .The type is of little shape and light weight,little wastage,high insulation resistance,excellent natural repair,good stability,suitable for alternating current circuit.
Can be used in air conditioners ,ventilator,electric fan etc.
Basic Info.(Techical Parameters)
| Operation temperature range | -40°C~85°C( 40/85/21 ) | |
| Rated Voltage | 450V | |
| Capacitance Range | 1.0UF | |
| Capacitance tolerance | ±5% | |
| Technology standard | GB/T 3667.1-2016 IEC 60252-1:2013 UL810 | |
| Withstand voltage | 2Un .5s | |
| Flammability | UL94V-0 级 | |
Outline Drawing(W=1-15/32in,T=7/16in,H=57/64in)
Manufacturing Process Flow
1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection
8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery
Packaging
Facting Information
| Factory Size | 30,000-40,000 square meters | |
| Factory Country/Region | No.7,East Xinyou Road, Ronggui | |
| Number of Production Lines | 10 Automatic Lines | |
| Contract Manufacturing | OEM Service Offered / Design Service Offered / Buyer Label Offered | |
| Annual Output Value | Above US$50 Million | |
Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;
√ Fast lead time due to fully automatic production and vertical raw materials supply;
√ With world-class lab center, strong R&D research and self-owned film metallization technology;
√ Highly consistent quality products by strictly adhering to ISO and IATF16949;
√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
