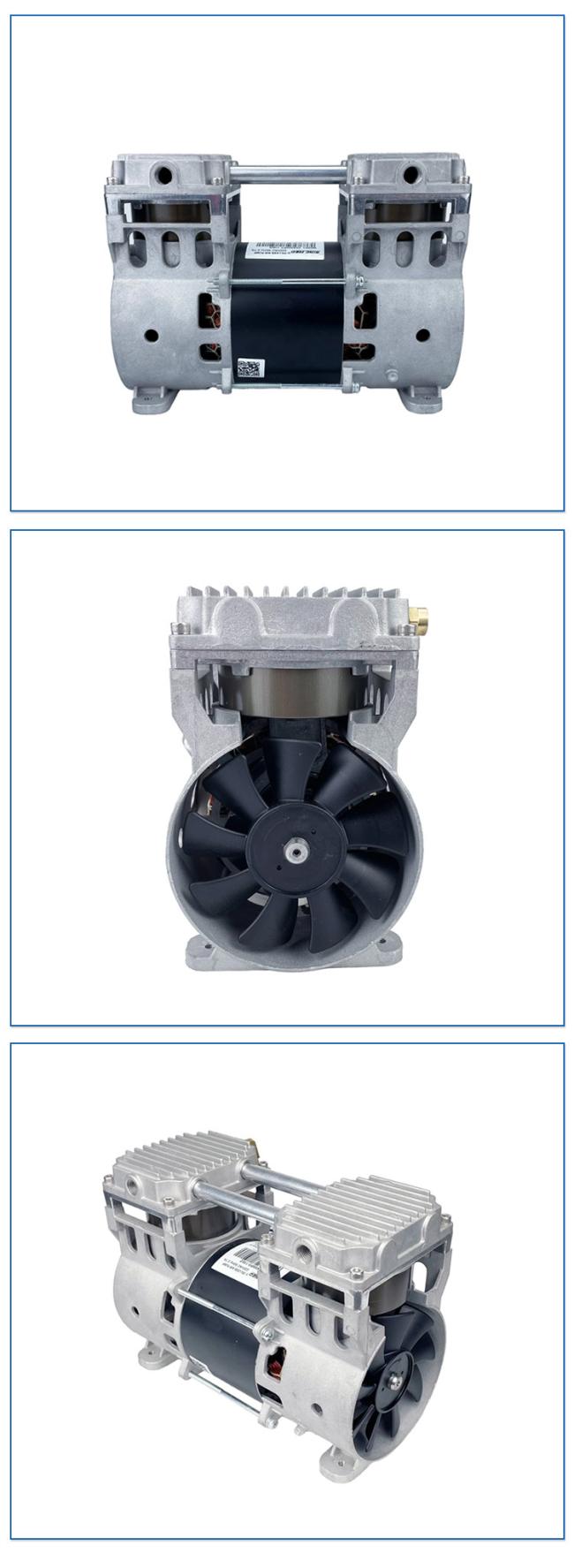

10KG Weight ETL Certificate 600W 60L Medical Use Air Compressor Head
Price:
Negotiable
MOQ:
100 PCS
Delivery Time:
15-30 days
Brand:
XWD
Product Description
Complete solution leader in oilless air pump field
our 10KG Weight ETL Certified 600W 60L Medical Use Air Compressor Head offers unmatched reliability, performance, and safety for various medical applications. Backed by ETL certification and precision engineering, it is the ideal choice for healthcare professionals seeking a dependable air compressor solution. Trust in our compressor head to deliver consistent performance and peace of mind in your medical facility.
* Oilless operation
* Permanently lubricated bearings
* High performance piston seal
* ETL certificated (Safety)
| Model Number | ZGK500-110/2-218 | |
| Performance Data | ||
| Head configuration | Pressure parallel flow | Pressure parallel flow |
| Nominal voltage | 110V/60HZ | 220V/50HZ |
| Current at rated load | 5.6A | 2.7A |
| Power at rated load | 110L/min | 110L/min |
| Pressure at rated load | 30PSI(2bar) | 30PSI(2bar) |
| Speed at rated load | 1650rmp | 1400rmp |
| Noise | <59dB(A) | <59dB(A) |
| Electrical Data | ||
| Motor type(Capacitance) | P.S.C(35uF) | P.S.C(14uF) |
| Motor Insulation class | B | |
| Power lead wire color,gauge | Thermally protected(145℃) | |
| Hall sensor wire color,gauge | White (hot),black(neutral)18AWG |
Brown(hot),blue(neutral),18AWG |
| General Data | ||
| Operating ambient air temperature | 50° to 104°F(10° to 40°C) | |
| Safety certification | ETL | |
| Dimension(LXWXH) | mm | |
| Net weight | 0.39KG | |
| Application | For 10L oxygen concentrator use | |
