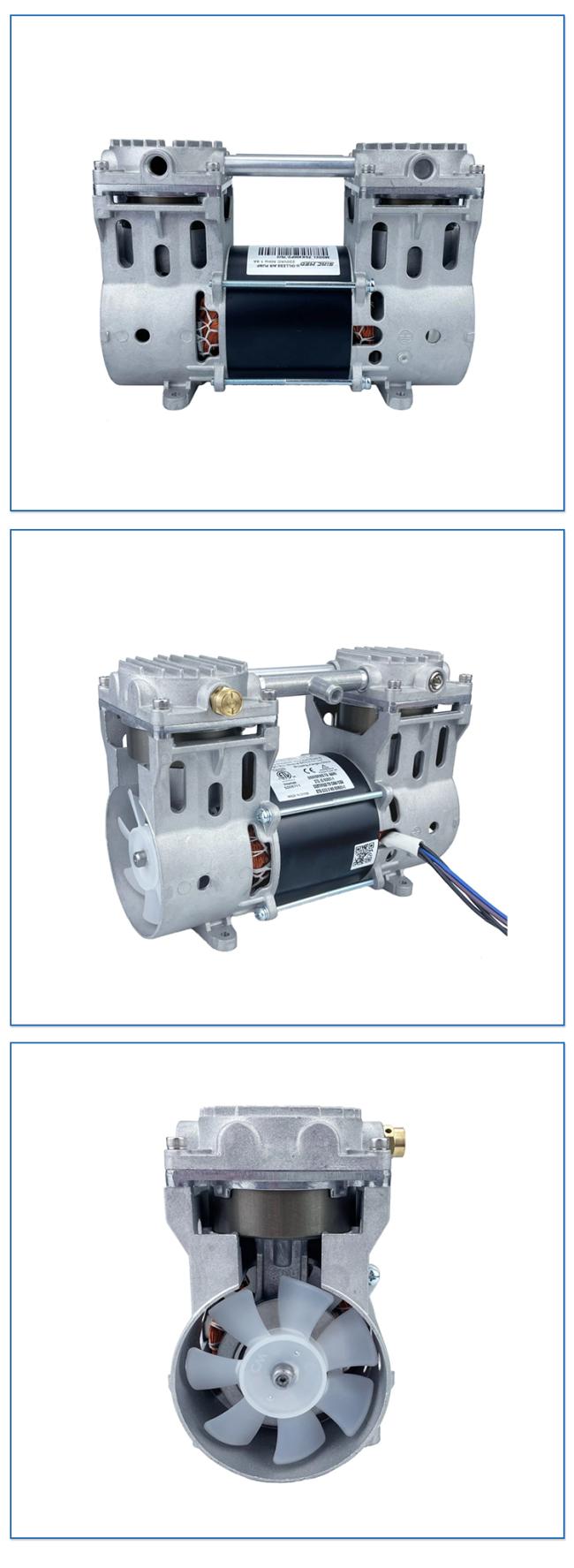

Air Compressor Head 350W Vacuum Pump No Oil Max Flow 75L/Min Twin Cylinder Piston Engine
Price:
Negotiable
MOQ:
100 PCS
Delivery Time:
15-30 days
Brand:
XWD
Product Description

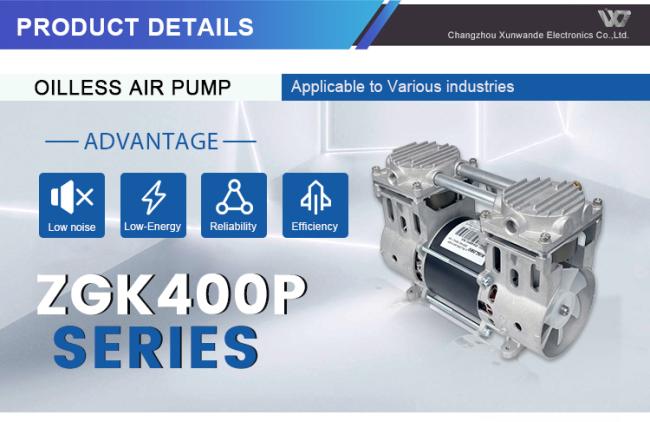

Complete solution leader in oilless air pump field
* Oilless operation
* Permanently lubricated bearings
* High performance piston seal
* ETL certificated (Safety)

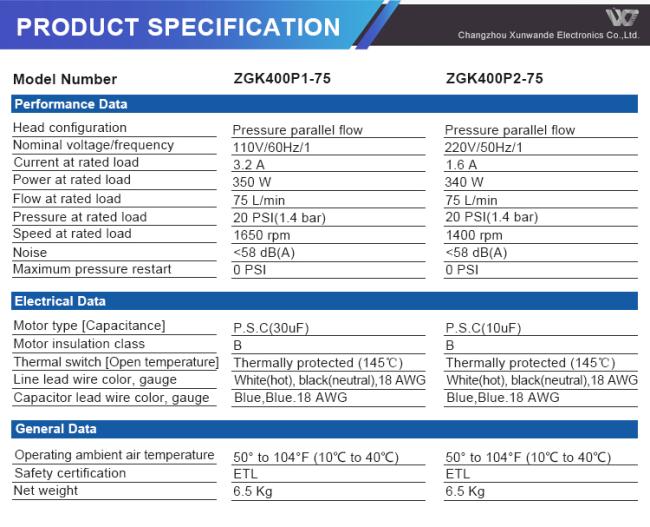

| Model Number | ZGK400P-75 | |||
| Performance Data | ||||
| Head configuration | Pressure parallel flow | Pressure parallel flow | ||
| Nominal voltage | 110V/60HZ | 220V/50HZ | ||
| Variable output speed | 1650 rpm | 1400rpm | ||
| Max.open air flow | 75L/min | 75L/min | ||
| Max.rated pressure | 20PSI | 20PSI | ||
| Current at rated pressure | 3.2A | 1.6A | ||
| Power at rated pressure | 350W | 340W | ||
| Electrical Data | ||||
| Motor insulation class | B | |||
| Motor protection | Not included-Customer to integrate into system controller | |||
| Power lead wire color,gauge | Green(phase A),black(phase B),red(phase C),22AWG | |||
| Hall sensor wire color,gauge | Yellow(+VDC),brown(HS1),orange(HS2),blue(HS3),gray(ground),22AWG | |||
| General Data | ||||
| Operating ambient air temperature | 32° to 104°F(0° to 60°C) | |||
| Safety certification | ETL | |||
| Dimension(LXWXH) | 147*84*168mm | |||
| Net weight | 6.5KG | |||
| Application | Portable medical battery pulse oxygen concentrator | |||
