Mounting Solar Panel Power System Monocrystalline Silicon Panel 4KW 5KW
Price:
$0.60/watts 5000-9999 watts
MOQ:
5000 watts
Delivery Time:
Negotiable
Brand:
ZZLYSUN
Product Description

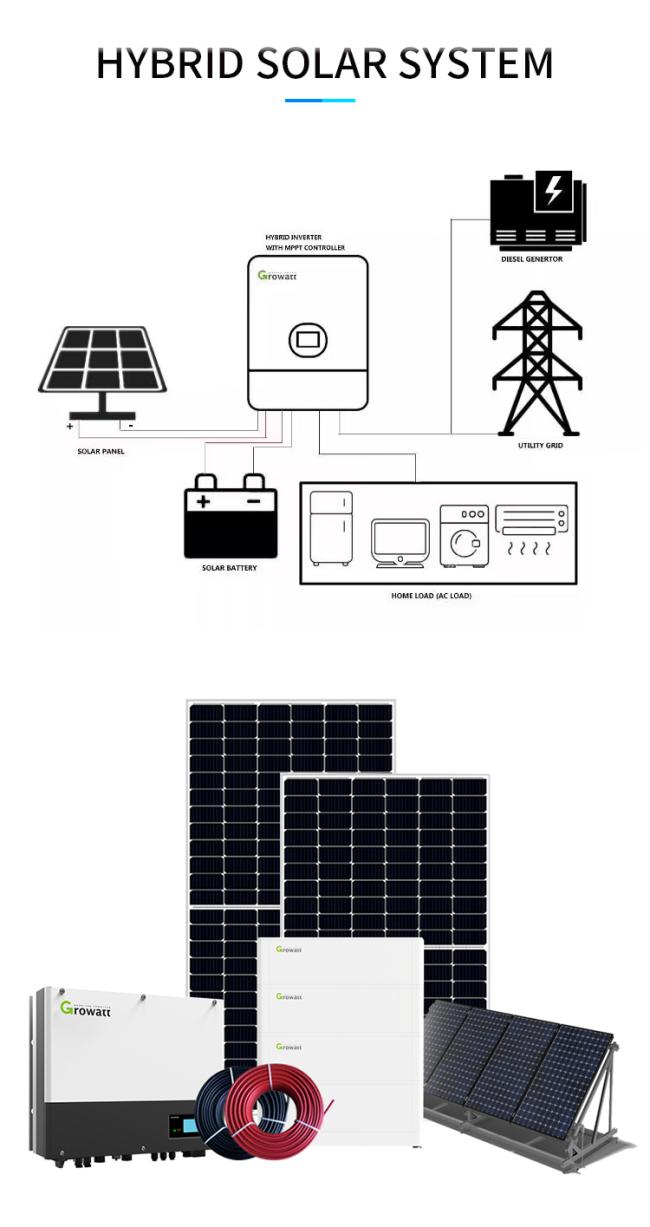

Hybrid Solar System 4KW 5KW With Hybrid Solar Inverter 4KW 5KW
❖ General mode:
When the PV is sufficient, the load is given priority to use, and the excess power is charged to the battery, and the excess power will be fed to the grid when the battery is full; when the PV is insufficient, the battery is discharged, and they will together meet the load; The electricity in the PV and the battery is not enough for the load, and it is supplemented by the large power grid;
|
Product List
|
4KW Hybrid Solar System
|
|
5KW Hybrid Solar System
|
|
|
PV module
|
445W*9PCS
|
|
445W*11PCS
|
|
|
PV combiner box
|
1 Input 1 output
|
|
1 Input 1 output
|
|
|
Inverter
|
Growatt 4KW hybrid inverter
|
|
Growatt 5KW hybrid inverter
|
|
|
Monitor
|
Wifi Module
|
|
Wifi Module
|
|
|
Battery
|
Lithium Battery 102.4V 100ah
|
|
Lithium Battery 102.4V 100ah
|
|
|
Mounting System
|

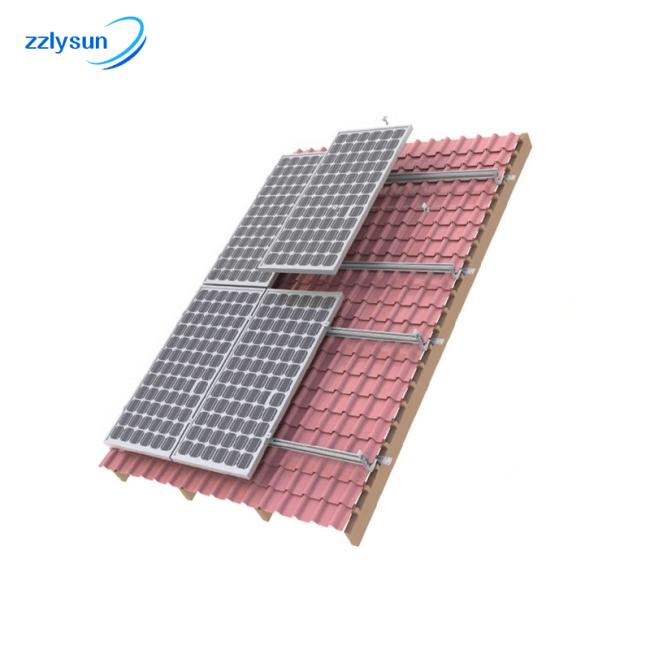

Roof mounting/Ground mounting (Design by your requirement)
|
|
Roof mounting/Ground mounting (Design by your requirement)
|
|
|
Accessories
|
MC4 Connector,PV cable,Installations
|
|
MC4 Connector,PV cable,Installations
|
|

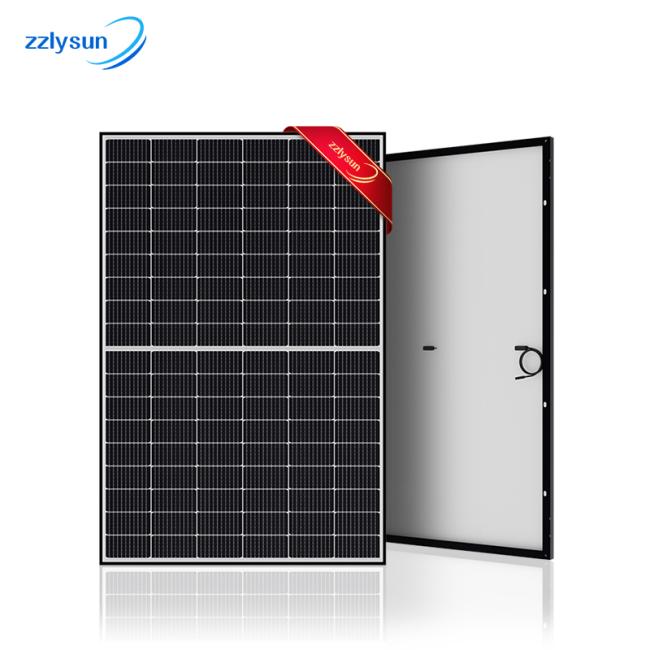

* Power:455W~470W
* The quantity of Cell:144PCS
* Solar cells size:166*83mm
* Dimensions:2094x1038x35mmmm(LxWx H)
* Front Glass:3.2mm high transmisson tempered glass
* Encapsulation:EVA
* Backsheet:Composite film
* Frame:Anodized aluminum profile
*Junction Box:Rated current:25A,IP68
* Solar cells size:166*83mm
* Dimensions:2094x1038x35mmmm(LxWx H)
* Front Glass:3.2mm high transmisson tempered glass
* Encapsulation:EVA
* Backsheet:Composite film
* Frame:Anodized aluminum profile
*Junction Box:Rated current:25A,IP68

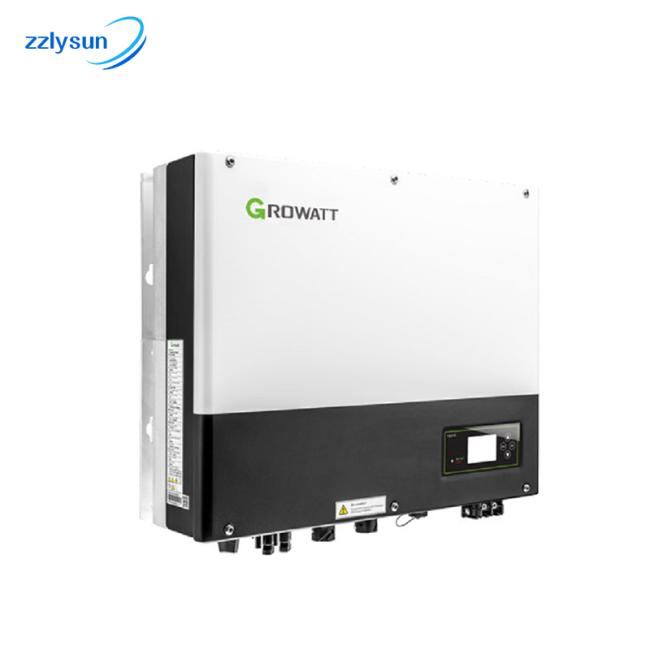

* Rate Power: 4500W/5000W
* Battery Voltage:100~550V
* Battery Type:Lithium
* MPP voltage range:160V-1000V / 600V
* AC Voltage Regulation:230V/400V
* AC grid frequency:50Hz/60Hz
* Max PV Power:5200W/6500W
* Max. Efficiency :97.6%/97.8%
* AC grid connection type:3W+N+PE
* Switch time:<0.5S
* Max PV Power:5200W/6500W
* Max. Efficiency :97.6%/97.8%
* AC grid connection type:3W+N+PE
* Switch time:<0.5S

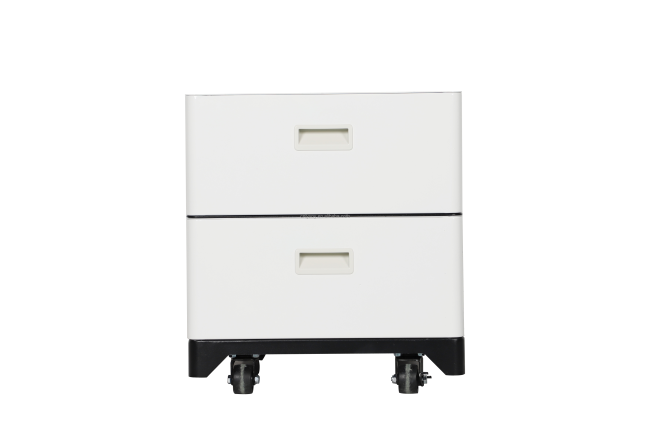

* Nominal Voltage:51.2V
* Capacity:200Ah
* Energy:10240Wh
* Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
* Design Life:≥10 years
* Charge Cut-off Voltage:56.0V±0.5V
* Dimensions:680 x485 x180(220)mm
* Weight:Approx:98kg
* Nominal Voltage:51.2V
* Capacity:200Ah
* Energy:10240Wh
* Cycle Life:
≥5000 cycles @ 80% DOD, 25℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
≥4000 cycles @ 80% DOD, 40℃, 0.5C
* Design Life:≥10 years
* Charge Cut-off Voltage:56.0V±0.5V
* Dimensions:680 x485 x180(220)mm
* Weight:Approx:98kg
* Good Appearance
* Easy and flexible installation.* Diversified design
* Light dead-weight
* Save installation materials
❖ Peak valley arbitrage model
The hybrid soar system are suitable for the country,which are the payment bill is expensive .The charging and discharging time of the battery is set.When the local grid price is in the peak stage ,the battery is discharged to the load,when the local grid price is in the trough stage,the battery will be charged by the power grid.
❖ Company
The company has been committed to customer requirement as a guide to achieve win -win cooperation since its establishment.We are focus on the on grid solar system ,off grid solar system ,hybrid solar system of home use and Commercial solar system .All your requirement can contact us directly, we can provide the pre-sale service,quotation and after service,warmly welcome your come!
❖ Quality gurantee
The solar panel should be implement the strict quality control,such as Glass uplifting,EVA Slitting,IV test,Cleaning and so on.For that,the quality can be higher guarantee.
❖ Plywood Package
The on grid solar system ,off grid solar system and hybrid solar system will be packaged with plywood Case in order to avoid the damage from the transportation.Any special requirement about the package,pls advice us in advance!
❖ Certificate
1.The solar panel will past the certificate ,such as ISO,TUV,IEC,BIS ,CQC.
2.The solar inverter certificate is depend on the different brand,the accurate certificate will be provided by us if you can contact with us directy.
FAQ
1.What kind of product can you provide ?
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your deposit of payment.
Re:We can provide the solar energy system such as on grid solar system,off grid solar system and hybrid solar system.They are including the solar panel,solar inverter,PV combiner box,battery,mounting system and installation tools.
2.How much power energy can your company provide?
Re:We can provide the home use solar system from 5kw to 20kw and also provide the commercial solar system from 20kw to 500kw with excellent design.
3.Who is your service customer?
Re:Individual client for house solar systems; distributor; importer and solar energy system installer.
4.What is your warranty and after-sales policy?
Re:Warranty term: PV panel, cable, mounting frame for 15 years, Inverter for 1-3 years, battery for 5 years. Any quality problem,will let us freely.
5.How many days will the product delivery?
Re:All the package will shipped within 10~20 working days after your deposit of payment.
