Easy Mounting Split Slip Ring with 2 Circuits for Rapid Maintenance in Industrial Applications
Split Slip Ring
Panlink understands that down time is extremely expensive. Consequently, we have developed split slip rings practice to significantly reduce the lead time on repairs, allowing for a rapid return.
Split Slip Ring is a type of slip ring with an openable housing for maintenance. Its stator and brush holder assembly features a detachable split housing structure, enabling flexible installation and rapid component replacement. This design is specifically engineered for: Large continuously operating equipment with high downtime costs, Long-shaft/enclosed structures where conventional slip rings cannot be installed and Critical infrastructure requiring short maintenance time.
| Applications | |
| • Wind Turbines (Pitch/Yaw Systems) | • Medical CT Rotating Gantries |
| • Industrial Mixers | • Radar Antennas |
| • Large-scale Centrifuges | • Mining Machinery |
| • Marine Propulsion Shafts |
| Features |
| • Easy Mounting |
| • Rapid Maintenance |
| • Low-Cost Upkeep |

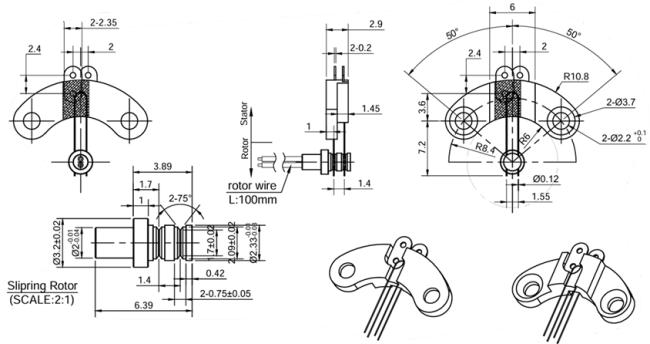

| Specification | |
| Model | OPEN2SR |
| Circuit | 2 |
| Voltage | 24VDC |
| Current | 1 A / ring |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | ≤30MΩ |
| Dielectric Strength | 200VAC@50Hz, 60s |
| Operating Speed | 30rpm |
| Lifetime | 10 million revolutions |
| Contact Material | Precious Metal |
| Lead Wire | AWG30#Teflon Wires |
| Working Temperature | -55℃~+70℃ |
| Humidity | 60%RH |
| Protection Level | IP00 |
