20-channel Miniature Through Bore Slip Ring with 0.53inch Bore and IP51 Protection
Price:
Negotiable
MOQ:
1
Delivery Time:
4 Weeks
Brand:
Panlink
Product Description
20-channel Miniature Through Bore 0.53inch Bore
PSR-F11-6P14S

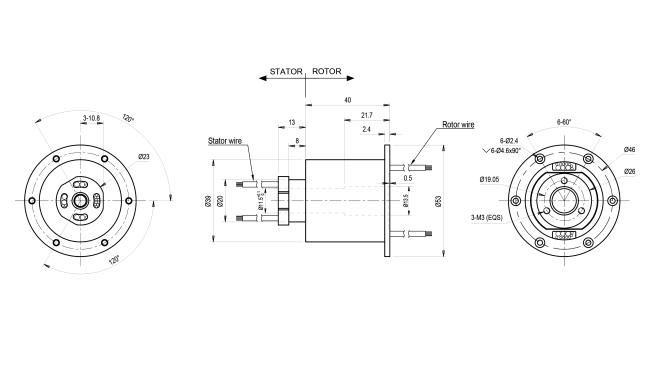

Drawing (Dimensions in Millimeters)
Specification:
| Channels | 14 for Signal Transmission, 6 for Power Transmission |
| Electrical Specifications | |
| Voltage Rating | 28VDC |
| Current Rating | Power: 15A, Signal: 2A |
| Insulation Resistance | Max 500MΩ @ 500VDC |
| Dielectric Noise | 500VAC @ 50Hz, 60s |
| Electric Noise | Max 40mΩ |
| Lead Cable | Power: AWG16 Teflon, Signal: AWG24 Teflon |
| Mechanical Specifications | |
| Working Life | 10 million revolutions |
| Rotating Speed | 50rpm |
| Operating Temperature | -40℉ to +122℉ (-40℃ to +50℃) |
| Storage Temperature | -67℉ to +158℉ (-55℃ to +70℃) |
| Operating Humidity | 0~95%RH |
| Torque | 0.5N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
| Weight | 120g |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
