Hybrid RF Rotary Joint with Multiple Signal Transmission Up to 200A Current and RS422/485/232 Interfaces for Radar Systems
Hybrid RF Rotary Joint With Multiple Signal Transmission Capabilities For Radar Systems, Wind Turbines, And Aerospace Applications
RF Rotary Joint
RF rotary joints are electromechanical devices designed to transmit RF signals between a fixed platform and a rotating platform. They are essential components in various high-performance systems, including high-definition camera systems, defense radar systems, and satellite communications (SATCOM).
Panlink RF rotary joints are engineered with a compact design, ensuring low insertion loss, excellent voltage standing wave ratio (VSWR), minimal fluctuation of electrical characteristics, and high crosstalk attenuation across all channels and frequencies.
Our product range includes a variety of RF rotary joints to meet diverse application needs:
Hybrid (Slip Ring+ RF Joint + Waveguide Joint+ FORJ)
|
Key Feature |
|
| • Power up to 200A | • RS422/485/232 interfaces |
| • Up to 200 channels | • Up to 10 medium frequency channels at 300MHz |
| • HD SDI video signals | • RF Joint supports up to 8 channels at 18G |
| • G-bit Ethernet | • Waveguide rotary joint combination |
| • 1553B signals | • FORJ (Fiber Optic Rotary Joint) |
| • Encoder combination | • 2-4 media channels at 35Mpa for cooling |

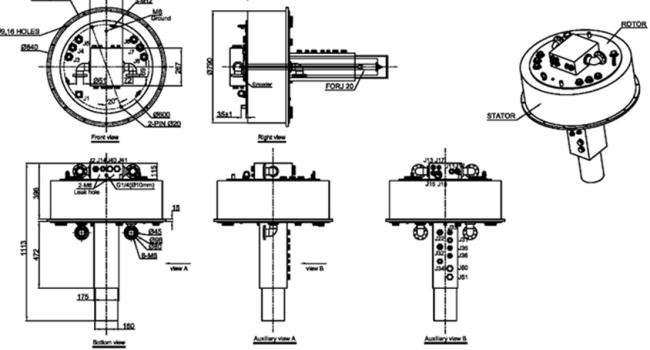

Example1

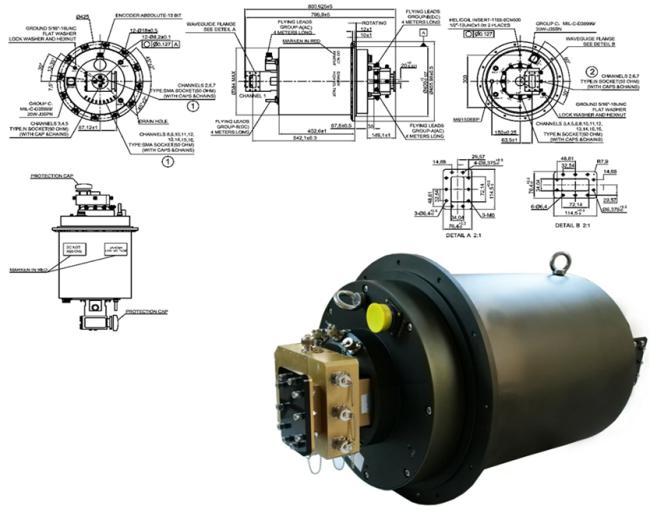

Example 2
Example 3
