Plastic Injection Mold Base , Large Car Bumper Mold With Polishing

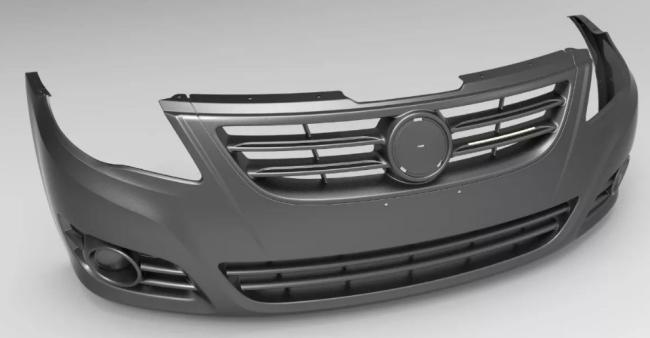

Automotive Bumper Mold Base, Large Scale Plastic Injection Mold Base

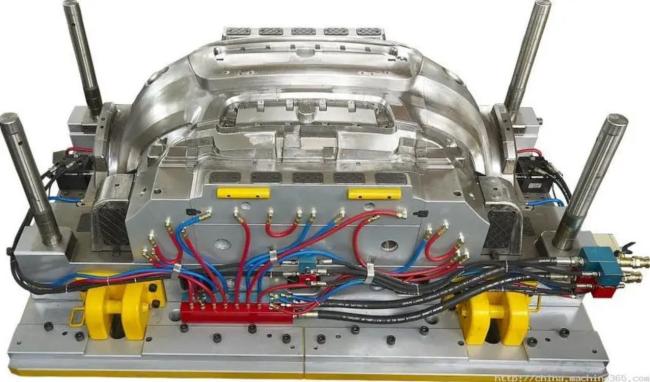

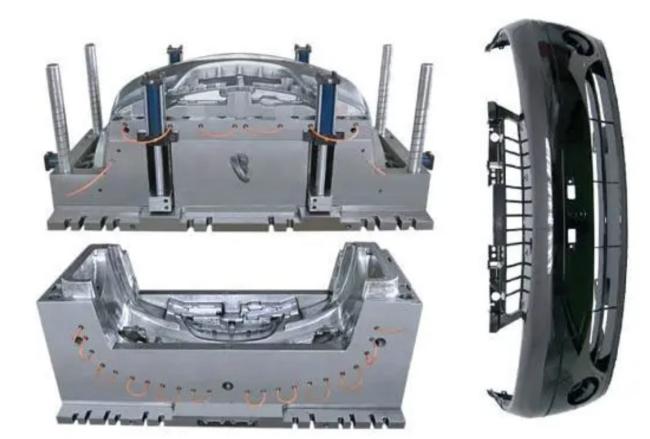

large scale mold base for automotive mold, Bumper mold

Specifications

Features:

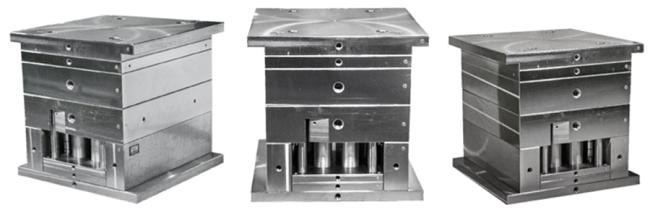

Mold Base Type: The mold base is available in different types, including CI, DI, FCI, DCI, and more, providing flexibility to meet various molding needs.

Additional Machining: The mold base can be further machined to include water lines and rough machining, enhancing its functionality.

Material: It is constructed with 1.2738 steel, known for its high strength and durability, ensuring long-lasting performance.

Outside of Mold Base: The mold base undergoes grinding, resulting in a smooth and refined surface finish.

Life Shots: This mold base is designed to withstand up to 1,000,000 shots, offering high durability and reliability.

Accessory Part: It is compatible with accessory parts from reputable brands such as DME, HASCO, and LKM, facilitating easy integration and customization.

File Formats: Acceptable CAD file formats include X-T, STP, IGS, and Solidworks, ensuring efficient communication with design teams.

Customer Customization: The mold base can be customized according to specific customer requirements, providing tailored solutions.

Unit of Dimension: The mold base is available in both metric (MM) and inch dimensions, catering to different measurement systems.

Hot Runner Need: It can be equipped with a hot runner system, optimizing the injection molding process.

Packing: The mold base is vacuumized and packed in wooden cases to ensure safe transportation.

Applications:

We supply mold base to the automotive mold maker worldwide. 70% of our mold are ship to the customer inside  China, and 30% are ship to oversea customer.

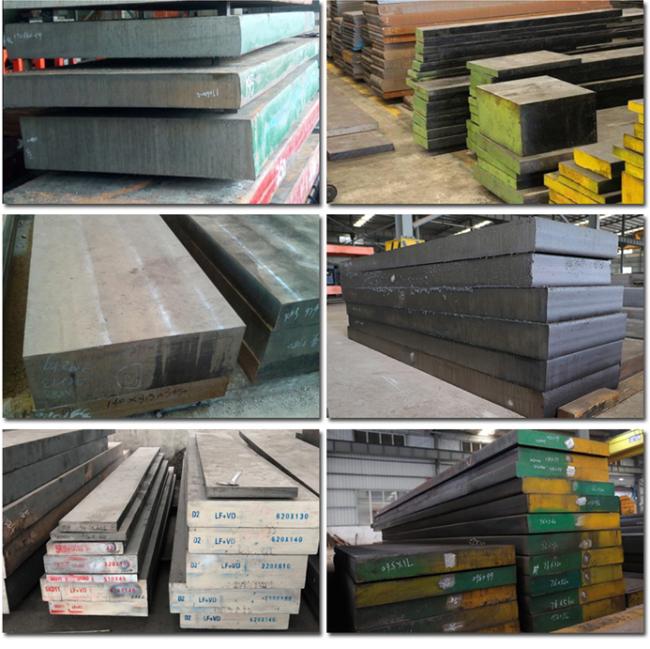

Good quality mold start with good mold steel,

Valve add service.

1. Can be do mold design for customer.
2. Assist customer to order standard part, such as ejector pin core pin, water line plug, machine mold insert.
3. Machining the cavity pocket, or core from A/B sold of moldbase.

Questionary

1. How to order?

Please send me the drawing and require, and then we make offer the most competitive price, and deliver the moldbase after finished.

2. How to maintain the quality?

A side plate and B side plate are machine by same machine, the can maintain the guide pin and bush are in same position, We do fully inspection before shipment, we can rework a new plate if dimension is reject.

3. What’s the CAD file format?

X-T, STP, format is fine for us.

4. How about the shipment?

We can handle the shipment by our company, we can deal with EXW, FOB, CIF and DAP term.

5. How about the lead time?

For the size below 500mm, the lead time is 5-10days, for the size from 600-1200mm the lead time will be 10-15 days, for the size over 1500mm, the lead time will be about 15-20days.

But we can put you work in top priority if you order are very urgent. Lead time can be adjustable.
