S136H SKD61 Material Assembly Jig And Fixture For Automation Production Line
Cell Phone Body Holding Jig For Automation Production Line
Cell phone Production line jig
Specifications
| Name | Production line jig | |
| Materials | Aluminum: 2000 series, 6000 series, 7075, 5052, etc. | |
| Stainless steel: SUS303, SUS304, SS316, SS316L, 17-4PH, etc. | ||
| Steel: 1214L/1215/1045/4140/SCM440/40CrMo, etc. | ||
| Brass: 260, C360, H59, H60, H62, H63, H65, H68, H70, Bronze, Copper | ||
| Titanium: Grade F1-F5 | ||
| Plastic: Acetal/POM/PA/Nylon/PC/PMMA/PVC/PU/Acrylic/ABS/PTFE/PEEK etc. | ||
| Surface Treatment | Anodized, Bead Blasted, Silk Screen, PVD Plating, Zinc/Nickel/Chrome/Titanium Plating, Brushing, Painting, Powder Coated, Passivation, Electrophoresis, Electro Polishing, Knurl, Laser/Etch/Engrave etc. |
|
| Tolerance | ±0.002 ~ ±0.005mm |
|
| Surface Roughness | Min Ra 0.1~3.2 | |
| Material | Aluminum, stainless steel, copper, brass, galvinized etc. | |
| Size | Customized | |
| Surface treatment | Powder coating, electroplating, oxide,anodization | |
| Technics | laser cut, bend, weld, stamp | |
| Certification | ISO9001:2015 | |
| OEM | Accept | |
| Drawing Format | 3D/CAD/Dwg/IGS/STP | |
| surface treament | Customized | |
| Application | Appliance, Auto, Building, Capital equipment, Energy, Instrumentation, Medical device, Telecommunications | |
The fixtures are fully customizable to meet specific requirements. They can be tailored in terms of size, design, and surface treatment. The surface treatment options include powder coating, which provides a protective layer and enhances the appearance of the fixtures.
With a quick lead time of 5-10 days, these fixtures are readily available for production needs. They are packaged securely in air bubble bags or cartons to prevent any damage during transportation.
Applications:

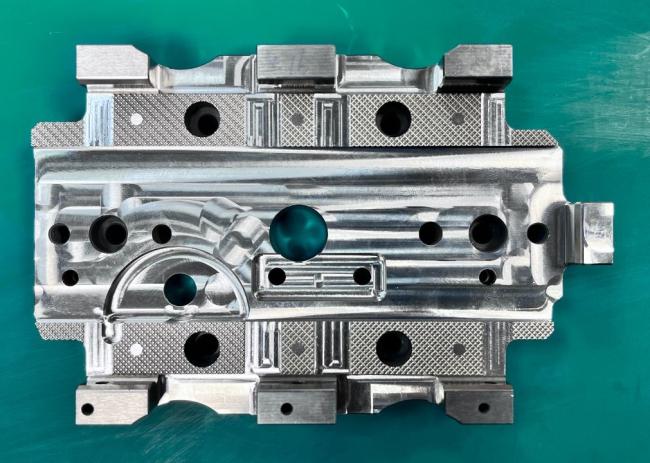

We supply the precision jig for the cell phone automation production line. This hold the main PCB in position for assemble, welding, and inspection.
Valve add service.
- We can help customer to do the design.
- Assist customer to order standard part.
- Can do the fitting and assemble check in case of customer order whole sets of fixture.
Questionary
- How to order?
Please send me the drawing and require, and then we make offer the most competitive price, and deliver the piece after finished and got the payment.
- How to maintain the quality?
We use the good steel bought from the regular steel agent, all steel can have the specification sheet, and do the full dimension inspection after finished machining.
- What’s the CAD file format?
X-T, STP, format is fine for us.
- How about the shipment?
Small part will ship via DHL or FedEx.
Big size cargo will ship with handle by forwarder, we can deal with EXW, FOB, CIF and DAP term.
- How about the lead time?
5-10 days for machine the insert. It depend on the size and quantity of part.
