PCB Functional Circuit Board Test Fixture With CNC Machining
CNC Machining Manufacture Build The Precision PCB Fixture Of Cell Phone For Production Line
Specifications
|
Industrial, agricultural, military Automatic Equipment, Medical Instrument, Electronic communication, robot, optical instrument, petrochemical, LED |
||
| Materials | Aluminum, copper/brass/bronze, iron, stainless steel, titanium alloy, POM plastic, ABS, nylon and so on. | ||
| Processing | Wire cutting, automatic cutting , drilling, tapping, stamping , CNC turning, CNC milling , CNC precision auto machining, grinding , aluminum extrusion , Die casting, |
||
| Surface finishing | Polishing, grinding, sandblasting, anodic oxidation(anodizing), spraying (painting, powder spraying), electroplating, electrophoresis, Black oxidation , heat treatment, electrolytic polishing |
||
| Shipment solution | Express(DHL,Fedex, UPS,TNT,EMS), By Sea, By air, By train, or on your requirement |
||
|
Inspection
|
Salt spray tester Two dimension measuring instrument The projector Industrial micrometer Caliper Height gauge Trough through micrometer Tool microscope |
||
| Shipment solution | Rust Preventative PP/PE bags Foams Carton boxes Wooden cases Pallets |
||
|
Technical support |
Consultancy in the field of mechanical engineering Development of projects in 2D and 3D Production consultancy Project Management RFQ Files fomats: jpg/.pdf/.dxf/.dwg/.igs./.stp/x_t. etc |

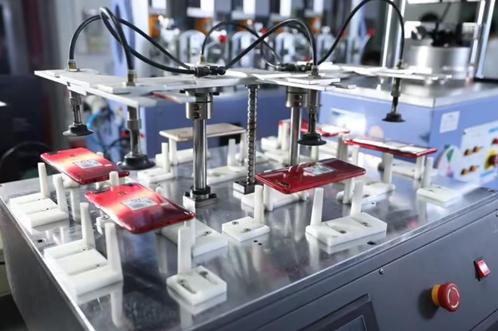

We supply the precision jig for the cell phone automation production line. This hold the main PCB in position for assemble, welding, and inspection.
Valve add service.
- We can help customer to do the design.
- Assist customer to order standard part.
- Can do the fitting and assemble check in case of customer order whole sets of fixture.
Questionary
- How to order?
Please send me the drawing and require, and then we make offer the most competitive price, and deliver the piece after finished and got the payment.
- How to maintain the quality?
We use the good steel bought from the regular steel agent, all steel can have the specification sheet, and do the full dimension inspection after finished machining. ship 1 piece to customer for test before start mass production.
- What’s the CAD file format?
X-T, STP, format is fine for us.
- How about the shipment?
Small part will ship via DHL or FedEx.
Big size cargo will ship with handle by forwarder, we can deal with EXW, FOB, CIF and DAP term.
- How about the lead time?
5-10 days for machine the insert. It depend on the size and quantity of part.
