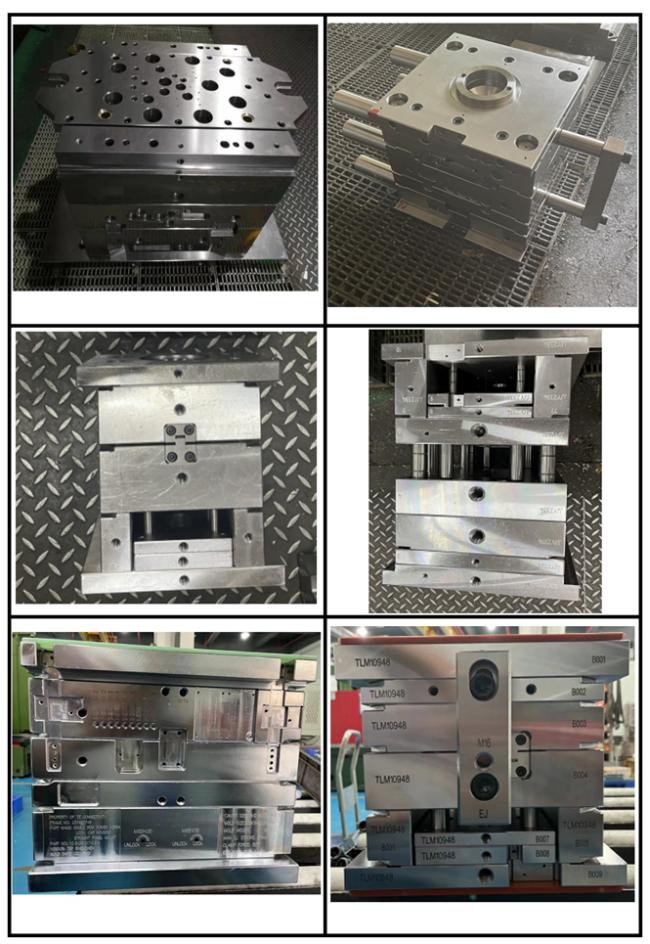

Stainless Steel Injection Mold Base Precision For Thin Wall Molding
Stainless Steel Mold Base For Precision Injection Mold Thin Wall Molding
Product Description:
The Stainless Steel Injection Mold Base Precision for Thin Wall Molding is a high-quality mold base designed specifically for thin wall molding applications. It is constructed using premium stainless steel material, ensuring excellent strength, durability, and corrosion resistance. This mold base is engineered with precise dimensions and a tolerance of +/- 0.01, making it suitable for achieving accurate and intricate mold designs.
The mold base is compatible with a pressure range of 100-1000T, allowing for the production of thin wall molded parts with high precision. It has a long-lasting durability of up to 1,000,000 shots, making it ideal for large-scale production requirements. The Stainless Steel Injection Mold Base is designed to withstand the demanding conditions of the injection molding process and ensure consistent performance over its lifespan.
Specifications
|
Details info for mould steel
|
||
|
Steel Grade
|
Hardness
|
Mould life
|
|
P20
|
HRC 28-33
|
>300,000 SHOTS
|
|
718
|
HRC 33-36
|
>500,000 SHOTS
|
|
H13
|
HRC >43
|
>800,000 SHOTS
|
|
1.2344
|
HRC >48
|
>800,000 SHOTS
|
|
S136
|
HRC 48-52
|
>10,00,000 SHOTS
|
|
Description of Plastic Injection Mould base
|
|
|
Mould Material
|
#45, P20, H13, 718, 1.2738, NAK80, S136 , CENA-1 ETC.
|
|
Mould Base
|
LKM HASCO ETC
|
|
Standard componet
|
DME HASCO JIS AISI DIN
|
|
Cavity
|
Single/multi
|
|
Runner
|
Hot/cold
|
|
Mould Life
|
50,0000-5,000,000 shots
|
|
Design Software
|
UG, RROE, CAD, Soildworks etc.
|
|
Plastic Material
|
PP, PC, PE, PS, PU, ABS, PVC, PA, POM, PMMA, PET, PPR ETC
|
|
Delivery time
|
45-60 days
|
Applications:
Building mold base and spply to the mold maker build precision mold.
Valve add service.
- Can be do mold design for customer.
- Assist customer to order standard part, such as ejector pin core pin, water line plug, machine mold insert.
- Machining the cavity pocket, or core from A/B sold of moldbase.
Questionary
- How to order?
Please send me the drawing and require, and then we make offer the most competitive price, and deliver the moldbase after finished.
- How to maintain the quality?
A side plate and B side plate are machine by same machine, the can maintain the guide pin and bush are in same position, We do fully inspection before shipment, we can rework a new plate if dimension is reject.
- What’s the CAD file format?
X-T, STP, format is fine for us.
- How about the shipment?
We can handle the shipment by our company, we can deal with EXW, FOB, CIF and DAP term.
- How about the lead time?
For the size below 500mm, the lead time is 5-10days, for the size from 600-1200mm the lead time will be 10-15 days, for the size over 1500mm, the lead time will be about 15-20days.
But we can put you work in top priority if you order are very urgent. Lead time can be adjustable.
