180HP Heavy Duty Bulldozer Yellow Precision Control Multi Purpose Construction

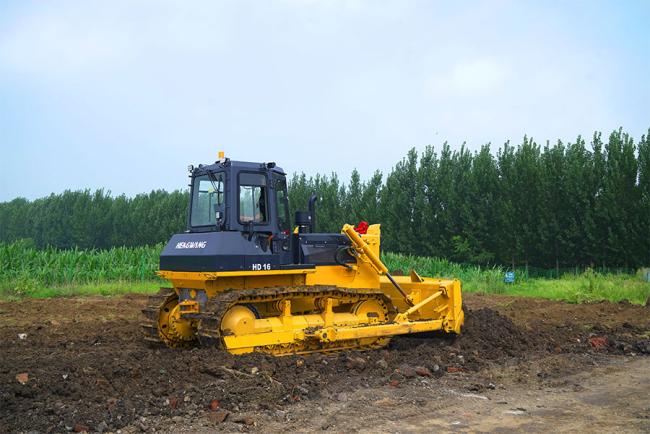

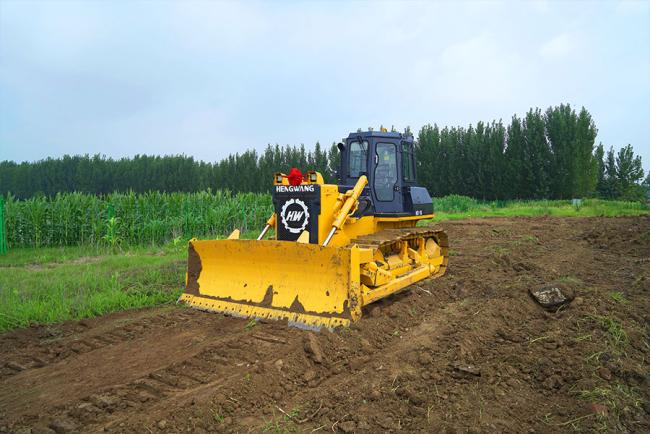

HW16DE Bulldozer - Unleash Power and Precision from Hengwang Group
Product Description: Introducing the HW16DE Bulldozer, a powerhouse designed for heavy-duty operations. Manufactured by Hengwang Group, this bulldozer offers robust performance at a competitive bulldozer price. With a working weight of 17,500kg, it's engineered to handle challenging terrains with ease. Equipped with the reliable WD10G178E25 engine, it ensures power and efficiency, making it an excellent bulldozer for sale.
|
Model |
HW16D |
HW16DE |
|---|---|---|
|
Working Weight |
17,000kg |
17,500kg |
|
Minimum Turning Radius |
4,466mm |
4,513mm |
|
Ground Length |
2,430mm |
2,635mm |
|
Ground Voltage |
0.067kpa |
0.058kpa |
|
Engine Model |
WD10G178E25 |
WD10G178E25 |
|
Engine Power/Speed |
131kw/1850rpm |
131kw/1850rpm |
|
Dimensions |
5,1403,3883,032mm |
5,1403,3883,032mm |
|
Forward Speed |
0~9.63 km/h |
0~9.63 km/h |
|
Reverse Speed |
0~12.53 km/h |
0~12.53 km/h |
|
Ground Clearance |
400mm |
400mm |
|
Track Center Distance |
1,880mm |
1,880mm |
|
Track Shoe Width |
510/560mm |
510/560mm |
|
Number of Track Shoes |
37 (single side/piece) |
39 (single side/piece) |
|
Chain Rail Pitch |
203.2mm |
203.2mm |
|
Number of Idler |
2 (single side) |
2 (single side) |
|
Number of Track Roller |
6 (single side) |
7 (single side) |
|
Mailbox Capacity |
320L |
320L |
Key Features:
-
Powerful 131kw engine for optimum performance.
-
Versatile blade options: Straight Tilt / Angle / U.
-
Precise control with a minimum turning radius of 4,513mm.
-
Hydrostatic transmission for smooth operation in all conditions.
Applications: Ideal for large-scale earthwork projects, the HW16DE Bulldozer excels in various applications. With a robust build and powerful engine, it ensures efficiency and precision in tasks like leveling, pushing, and excavating. Hengwang Group's commitment to quality and performance is reflected in every aspect of this heavy-duty bulldozer.
Support and Services: Our dedicated technical support team, backed by Hengwang Group's expertise, is available 24/7 to assist with troubleshooting, repairs, and maintenance. Benefit from on-site and in-shop services to maximize the performance and lifespan of your HW16DE Bulldozer. Invest in a reliable bulldozer from a trusted bulldozer manufacturer.
Ripper and Blade Specifications:
|
Specification |
HW16D |
HW16DE |
|---|---|---|
|
Blade Form |
Straight Tilt / Angle / U |
Straight Tilt / Angle / U |
|
Blade Capacity |
4.5/4.3/- (m³) |
4.5/4.3/- (m³) |
|
Blade Weight |
2,454/2,289/2,672 (kg) |
2,454/2,289/2,672 (kg) |
|
Blade Width |
3,388/3,970/3,556mm |
3,388/3,970/3,556mm |
|
Blade Height |
1,149/1,090/1,120 (mm) |
1,149/1,090/1,120 (mm) |
|
Max Lifting Height |
1,095/1,110/1,095mm |
1,095/1,110/1,095mm |
|
Max Cutting Depth |
400/-/400mm |
400/-/400mm |
Ripper Specifications:
-
Three Shank Ripper with a weight of 1,709kg.
-
Maximum Ripping Depth: 572mm.
-
Maximum Lifting Height: 592mm.
Choose the HW16DE Bulldozer for unparalleled power, precision, and reliability from Hengwang Group, a leading bulldozer manufacturer, all at a competitive bulldozer price.
