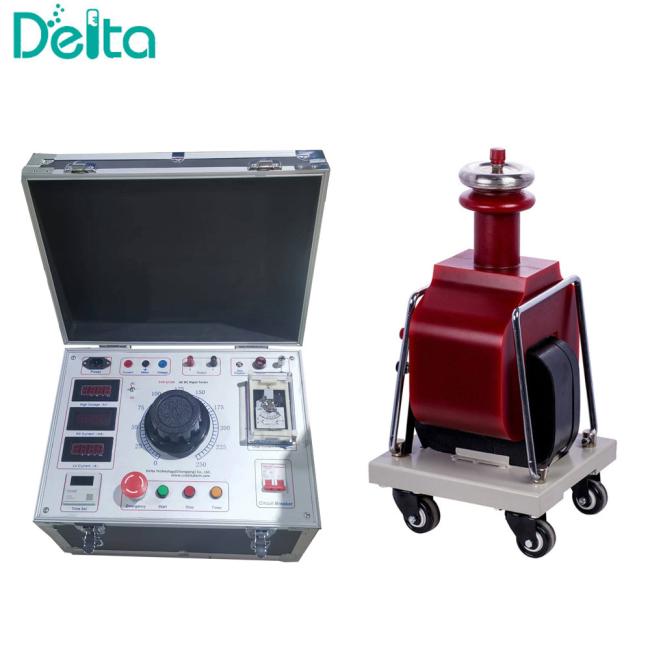

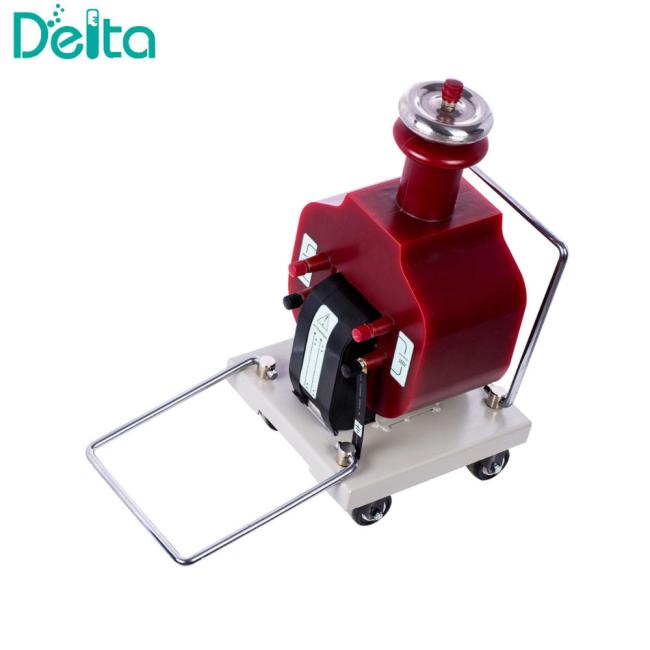

GTB Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer

Introduction:
GTB Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer uses advanced production equipment, and new technology of coil winding epoxy vacuum pouring and CD-type iron core, which obviously reduces weight and volume, improves insulating strength and humidity resistance level, effectively weakening leakage magnet resulting in greatly enhancing the ability to withstanding the impact of testing short circuit current of the transformer. This series of products are new generation high voltage testing transformers used for AC and DC in China.

Features:

1. GTB Dry Type Testing Transformer has features of light weight, small volume, beautiful appearance, stable performance, convenient usage and carrying, especially suitable for site operation.
2. GTB Dry Type Testing Transformer is applicable to the power system and all power users to detect on-site the insulating performance test of all electrical equipment, high voltage power sources of all appliance's voltage system, or equipment with DC high voltage small current.

Parameters:

1. Impedance voltage: 4.5%-8%
2. Surface temperature rise: sine wave
3. Idle load loss consumption: 0.2%-0.35%
4. Allowable continuous operation time: 2 hours
5. Interrupted operation time: Continuous
