Two Piece Hydraulic Piston Seals Double Acting Easy Installation
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7-15 work days
Brand:
Kelong
Product Description
KL40 Is A Two Piece Double Acting Sealing Set Consists Of A Hard PU Seal Ring And An NBR Elastomer Ring As Energizer
KL40 is a two piece double acting sealing set which consists of a hard polyurethane seal ring and an NBR elastomer ring as energizer. It has good sealing ability at heavy duty applications thanks to the PU sealing ring having high resistance against wear, pressure and extrusion as well as NBR energizer ring.
Advantages
• High static and dynamic sealing effect
• Simple and small groove design suitable with ISO 7425-1
• Operating without vibration even with low speeds
• No twisting in the house due to profile ring energizer
• Easy installation
• Simple and small groove design suitable with ISO 7425-1
• Operating without vibration even with low speeds
• No twisting in the house due to profile ring energizer
• Easy installation
Area of Application
• Construction machinery
• Injection moulding machines
• Mobile machinery
• Forklifts
• Agricultural machinery
• Standard industrial cylinders
• Injection moulding machines
• Mobile machinery
• Forklifts
• Agricultural machinery
• Standard industrial cylinders

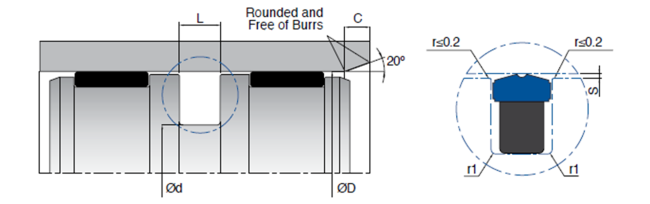

| D (H9) | d (h9) | L (+0.2/-0) | r1 | C | MATERIAL | |
| KL40 025-017.5 | 25 | 17.5 | 3.2 | 0.5 | 2 | PU |
| KL40 028-020.5 | 28 | 20.5 | 3.2 | 0.5 | 2 | PU |
| KL40 032-021 | 32 | 21 | 4.2 | 0.5 | 2.5 | PU |
| KL40 032-024.5 | 32 | 24.5 | 3.2 | 0.5 | 2 | PU |
| KL40 035-024 | 35 | 24 | 4.2 | 0.5 | 2.5 | PU |
| KL40 040-029 | 40 | 29 | 4.2 | 0.5 | 2.5 | PU |
| KL40 045-034 | 45 | 34 | 4.2 | 0.5 | 2.5 | PU |
| KL40 050-039 | 50 | 39 | 4.2 | 0.5 | 2.5 | PU |
| KL40 055-039.5 | 55 | 39.5 | 6.3 | 0.5 | 3 | PU |
| KL40 055-044 | 55 | 44 | 4.2 | 0.5 | 2.5 | PU |
| KL40 060-044.5 | 60 | 44.5 | 6.3 | 0.5 | 3 | PU |
| KL40 060-049 | 60 | 49 | 4.2 | 0.5 | 2.5 | PU |
| KL40 063-047.5 | 63 | 47.5 | 6.3 | 0.5 | 3 | PU |
| KL40 063-052 | 63 | 52 | 4.2 | 0.5 | 2.5 | PU |
| KL40 065-049.5 | 65 | 49.5 | 6.3 | 0.9 | 4 | PU |
| KL40 065-054 | 65 | 54 | 4.2 | 0.9 | 2.5 | PU |
| KL40 070-054.5 | 70 | 54.5 | 6.3 | 0.9 | 4 | PU |
| KL40 070-059 | 70 | 59 | 4.2 | 0.9 | 2.5 | PU |
| KL40 075-059.5 | 75 | 59.5 | 6.3 | 0.9 | 4 | PU |
| KL40 075-064 | 75 | 64 | 4.2 | 0.9 | 2.5 | PU |
| KL40 080-064.5 | 80 | 64.5 | 6.3 | 0.9 | 4 | PU |
| KL40 085-069.5 | 85 | 69.5 | 6.3 | 0.9 | 4 | PU |
| KL40 090-069 | 90 | 69 | 10.5 | 0.9 | 7 | PU |
| KL40 090-074.5 | 90 | 74.5 | 6.3 | 0.9 | 4 | PU |
| KL40 095-079.5 | 95 | 79.5 | 6.3 | 0.9 | 4 | PU |
| KL40 100-079 | 100 | 79 | 8.1 | 0.9 | 5 | PU |
| KL40 100-084.5 | 100 | 84.5 | 6.3 | 0.9 | 4 | PU |
| KL40 105-089.5 | 105 | 89.5 | 6.3 | 0.9 | 4 | PU |
| KL40 110-089 | 110 | 89 | 8.1 | 0.9 | 5 | PU |
| KL40 110-094.5 | 110 | 94.5 | 6.3 | 0.9 | 4 | PU |
| KL40 115-094 | 115 | 94 | 8.1 | 0.9 | 5 | PU |
| KL40 120-099 | 120 | 99 | 8.1 | 0.9 | 5 | PU |
| KL40 120-099/1 | 120 | 99 | 10.5 | 0.9 | 7 | PU |
| KL40 125-104 | 125 | 104 | 8.1 | 0.9 | 5 | PU |
| KL40 125-104/1 | 125 | 104 | 10.5 | 0.9 | 7 | PU |
| KL40 130-109 | 130 | 109 | 8.1 | 0.9 | 5 | PU |
| KL40 140-119 | 140 | 119 | 8.1 | 0.9 | 5 | PU |
| KL40 150-129 | 150 | 129 | 8.1 | 0.9 | 5 | PU |
| KL40 150-129/1 | 150 | 129 | 10.5 | 0.9 | 7 | PU |
| KL40 160-139 | 160 | 139 | 8.1 | 0.9 | 5 | PU |
| KL40 180-159 | 180 | 159 | 8.1 | 0.9 | 5 | PU |
| KL40 200-179 | 200 | 179 | 8.1 | 0.9 | 5 | PU |
