PU / NBR U Ring Piston Seal Pneumatic Easy Installation For Cylinders
Price:
Negotiable
MOQ:
100
Delivery Time:
15
Brand:
KELONG
Product Description
KL69 pneumatic piston seal is a single acting uring sealing element suitable for use in piston applications with its specially designed outer sealing lip.
Advantages
• Very good static and dynamic sealing
• Easy installation
• Can be used in small housing dimensions
• Long service life
Area of Application
• Recommended for use in cylinders according ISO 15552 and 6432 standards.

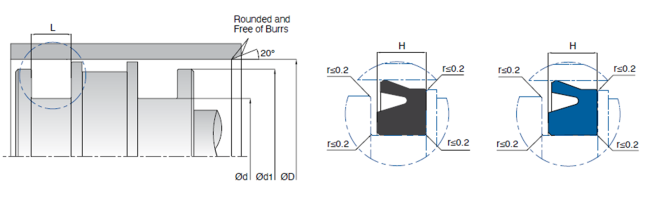

| D (H11) | d (h9) | L (+0.2/-0) | d1 (+0.2/-0) | H | MATERIAL | |
| KL69-008 | 8 | 4.8 | 2.7 | 7.6 | 2.3 | NBR |
| KL69-010 | 10 | 6 | 3 | 9.6 | 2.55 | NBR |
| KL69-010 PU | 10 | 6 | 3 | 9.6 | 2.55 | PU |
| KL69-012 | 12 | 7 | 3 | 11.6 | 2.55 | NBR |
| KL69-012 PU | 12 | 7 | 3 | 11.6 | 2.55 | PU |
| KL69-016 | 16 | 10 | 3 | 15.6 | 2.55 | NBR |
| KL69-016 PU | 16 | 10 | 3 | 15.6 | 2.55 | PU |
| KL69-020 | 20 | 14 | 3 | 19.6 | 2.55 | NBR |
| KL69-020 PU | 20 | 14 | 3 | 19.6 | 2.55 | PU |
| KL69-022 | 22 | 16 | 3 | 21.4 | 2.55 | NBR |
| KL69-024 | 24 | 18 | 3.5 | 23.4 | 3.25 | NBR |
| KL69-025 | 25 | 19 | 3.5 | 24.4 | 3.25 | NBR |
| KL69-025 PU | 25 | 19 | 3.5 | 24.4 | 3.25 | PU |
| KL69-032 | 32 | 24 | 3.5 | 31.4 | 3.25 | NBR |
| KL69-032 PU | 32 | 24 | 3.5 | 31.4 | 3.25 | PU |
| KL69-040 | 40 | 32 | 3.5 | 39.4 | 3.25 | NBR |
| KL69-040 PU | 40 | 32 | 3.5 | 39.4 | 3.25 | PU |
| KL69-045 | 45 | 37 | 3.5 | 44.4 | 3.25 | NBR |
| KL69-050 | 50 | 42 | 3.5 | 49.4 | 3.25 | NBR |
| KL69-050 PU | 50 | 42 | 3.5 | 49.4 | 3.25 | PU |
| KL69-063 | 63 | 53 | 4.5 | 62.4 | 4.25 | NBR |
| KL69-063 PU | 63 | 53 | 4.5 | 62.4 | 4.25 | PU |
| KL69-080 | 80 | 70 | 4.5 | 79.4 | 4.25 | NBR |
| KL69-080 PU | 80 | 70 | 4.5 | 79.4 | 4.25 | PU |
| KL69-100 | 100 | 90 | 4.5 | 99.4 | 4.25 | NBR |
| KL69-100 PU | 100 | 90 | 4.5 | 99.4 | 4.25 | PU |
| KL69-125 PU | 125 | 105 | 8.5 | 123.8 | 8.25 | PU |
| KL69-125/1 | 125 | 107.5 | 7.5 | 123.8 | 7.25 | NBR |
| KL69-160 | 160 | 140 | 8.5 | 158.8 | 8.25 | NBR |
| KL69-160 PU | 160 | 140 | 8.5 | 158.8 | 8.25 | PU |
| KL69-200 | 200 | 182.5 | 7.5 | 198.8 | 7.25 | NBR |
| KL69-250 | 250 | 230 | 8.5 | 248.8 | 8.25 | NBR |
| KL69-320 | 320 | 300 | 8.5 | 318.5 | 8.25 | NBR |
