P0642SALRP Thyristor Surge Protection Devices - TSPD 50A 58V Integrated Circuits

Description

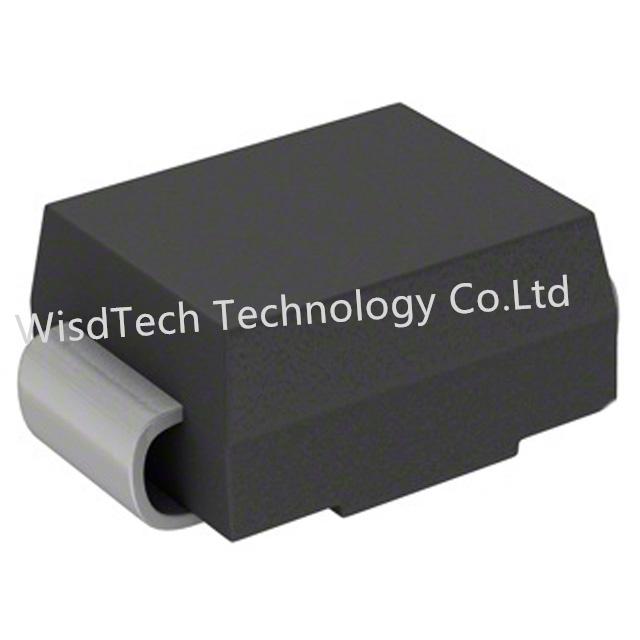

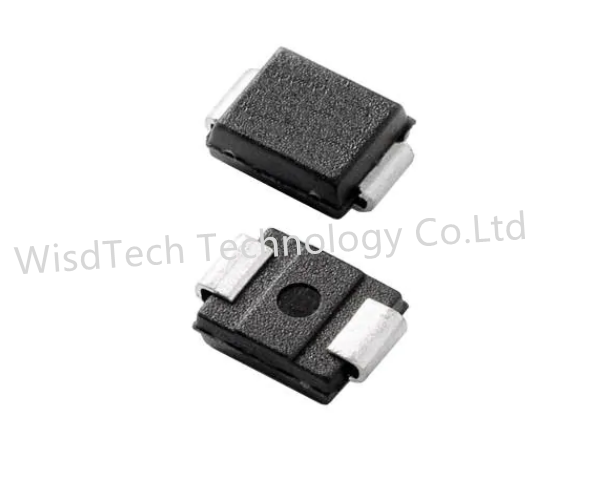

Pxxx2SxL Series Two-Chip SIDACtor® DO-214AA are very lowcapacitance SIDACtor® Protection thyristors

designed to protectbroadband ICT equipment such as VoIP, xDSL modems andDSLAMs from damaging

overvoltage transients. This seriesprovides a surface mount solution that enables equipment tocomply with

global regulatory standards, while limiting the impactto broadband signals.

Features and Benefits

■ Low voltage overshoot

■ Low on-state voltage

■ Does not degrade surgecapability after multiple surgeevents within limit.

■ Low distortion

■ Fails short circuit whensurged in excess of ratings

■ RoHS Compliant and HalogenFree

■ Pb-free E3 means 2nd levelinterconnect is Pb-free andthe terminal finish material

   istin(Sn) (IPC/JEDEC J-STD609A.01)

■ Recognized to UL 497B as anIsolated Loop Circuit Protector

Applicable Global Standards

■ TIA/968-A/B

■ ITU K.20/21/45

■ IEC 61000-4-5 2nd edition

■ GR 1089 Intra-building

■ YD/T 1082

■ YD/T 993

■ YD/T 950

■ ITU K.20/21/45 Enhanced*

■ GR 1089 Inter-building*

Littelfuse P0642SALRP is a product model manufactured by Littelfuse. Based on the information available,

P0642SALRP is a surface-mount fuse that is commonly used for overcurrent protection in electronic devices or circuits.

Here are some potential features and functions associated with Littelfuse P0642SALRP:

1. Protection Function: P0642SALRP fuse is designed to provide overcurrent protection. It can detect and

interrupt the flow of current when it exceeds a certain threshold, safeguarding other electronic components

from damage due to overload or short circuits.

1. Surface-Mount: P0642SALRP is designed for surface-mount applications, which means it can be directly

mounted onto the surface of a printed circuit board (PCB) without the need for additional through-hole soldering.

1. SMD Package: P0642SALRP is likely available in a Surface-Mount Device (SMD) package, which is a

compact and space-saving form factor suitable for modern electronic designs.
