SOCAY Radial Lead TVS Diode Surge Protection KB-058 TVS 6KA High Current
SOCAY Radial Lead TVS Diode KB-058 Blue Powder Surge Suppressor 6KA
DATASHEET: KB_v211.1.pdf
Selection Method
1.To know the customer's product, operating voltage, application port, protection level.
2.VRWM (operating voltage) value of the device ≥ normal operation in the customer's circuit
3.VC (clamp voltage) value < maximum voltage for the back-end chip
4.Select the package and power of the device according to the application port and protection level.
Description:
TVS tubes are widely used for the protection of semiconductors and sensitive devices, usually for diode protection. They are characterised by their fast response time (PS level), small size, high transient pulse suppression power and low clamping voltage.
| Part Number | Reverse Stand-Off Voltage | Breakdown Voltage | Test Current | Current Rating | Maximum Clamping Voltage | Reverse Leakage | |
| VAC(V) | VDC(V) | VBR(V) MIN.@IT | IT (mA) | IPP 8/20μs (KA) | VC(V) @IPP | IR (μA) @VDC | |
| KB-012 | 8.5 | 12.8 | 14 | 10 | 6 | 28 | 20 |
| KB-015 | 11 | 15 | 17 | 10 | 6 | 30 | 20 |
| KB-020 | 14 | 20 | 22 | 10 | 6 | 40 | 20 |
| KB-025 | 17 | 25 | 28 | 10 | 6 | 50 | 20 |
| KB-030 | 21 | 30 | 33 | 10 | 6 | 60 | 20 |
| KB-042 | 30 | 42 | 47 | 10 | 6 | 77 | 20 |
| KB-058 | 40 | 58 | 64 | 10 | 6 | 110 | 20 |
| KB-066 | 45 | 66 | 70 | 10 | 6 | 125 | 20 |
| KB-076 | 54 | 76 | 83 | 10 | 6 | 135 | 20 |
| KB-100 | 72 | 100 | 110 | 10 | 6 | 165 | 20 |
| KB-133 | 100 | 133 | 147 | 10 | 6 | 220 | 20 |
| KB-170 | 130 | 170 | 180 | 10 | 6 | 260 | 20 |
| KB-190 | 145 | 190 | 200 | 10 | 6 | 290 | 20 |
| KB-200 | 150 | 200 | 222 | 10 | 6 | 330 | 20 |
| KB-240 | 180 | 240 | 250 | 10 | 6 | 340 | 20 |
| KB-275 | 210 | 275 | 300 | 10 | 6 | 435 | 20 |
| KB-300 | 230 | 300 | 330 | 10 | 6 | 470 | 20 |
| KB-380 | 275 | 380 | 401 | 10 | 6 | 520 | 20 |
| KB-430 | 310 | 430 | 440 | 10 | 6 | 625 | 20 |

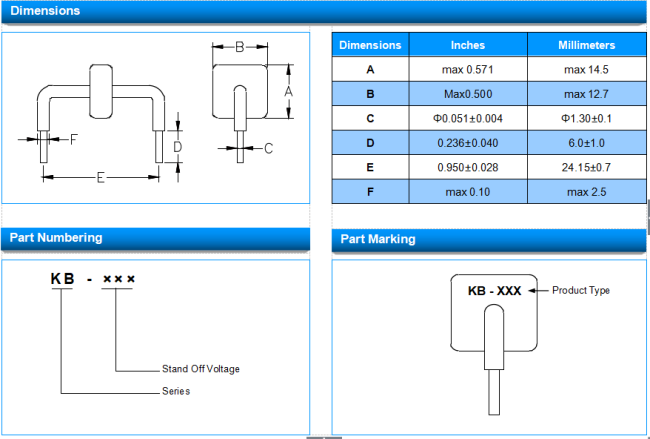

Classification
DIP:D0-41,DO-15,DO-201,P600
SMD:SOD-123(SMF),DO-214AC(SMA),DO-214AA(SMB),DO-214AB(SMC)
power:200W~30000W
Response time＜1PS,With clamping voltage, voltage limiting element.
| Parameter | Symbol | Value | Unit |
| Operating junction | TJ | -55 to +150 | °C |
| Storage Temperature Range | TSTG | -55 to +150 | °C |
| Current Rating1 | IPP | 6 | KA |
Notes: | |||
| Weight | Contact manufacturer |
| Case | Epoxy encapsulated |
| Terminal | Silver plated leads, solderable per MIL-STD-750, Method 2026 |
