Surface Mount Thyristor Surge Suppressors TSS P0080SA 2KV Low Voltage Overshoot

Price Negotiable

Price: Negotiable

MOQ: 2500PCS

Delivery Time: 5-8 work days

Brand: SOCAY

Product Description

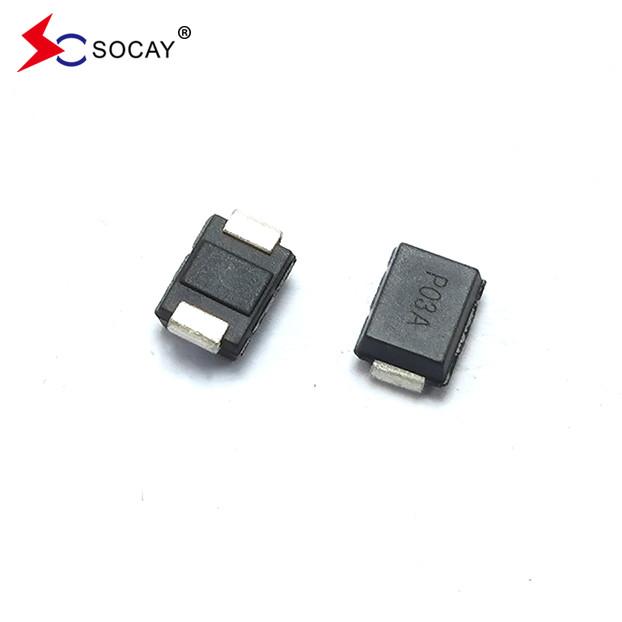

P0080SA @10/700μS,2KV Surface Mount Thyristor Surge Suppressors (TSS) Low Voltage Overshoot

DATASHEET: PXXX0SA_v2103.1.pdf

Part Number	Marking	V_DRM@I_DRM=5μA	VS ① @100V/μS	V_T @I_T=2.2A	I_S	I_T	I_H	C0 ② @1MHz, 2V bias
		V min	V max	V max	mA max	A max	mA min	pF typ
P0080SA	P008A	6	25	4	800	2.2	50	50
P0300SA	P03A	25	40	4	800	2.2	50	70
P0640SA	P06A	58	77	4	800	2.2	150	50
P0720SA	P07A	65	88	4	800	2.2	150	50
P0900SA	P09A	75	98	4	800	2.2	150	45
P1100SA	P11A	90	130	4	800	2.2	150	45
P1300SA	P13A	120	160	4	800	2.2	150	45
P1500SA	P15A	140	180	4	800	2.2	150	40
P1800SA	P18A	170	220	4	800	2.2	150	40
P2300SA	P23A	190	260	4	800	2.2	150	35
P2600SA	P26A	220	300	4	800	2.2	150	35
P3100SA	P31A	275	350	4	800	2.2	150	30
P3500SA	P35A	320	400	4	800	2.2	150	30
Notes: ① Vs is measured at 100KV/s. ② Off-state capacitance is measured in V_DC=2V, V_RMS=1V, f=1MHz.

Description:

PXXX0SA Series are designed to protect broadband equipment such as modems, line card, CPE and DSL from damaging over-voltage transients.
The series provides a surface mount solution that enables equipment to comply with global regulatory standards.

Features:

u Low voltage overshoot

u Low on-state voltage

u Does not degrade surge capability after multiple surge events within limit

u Fails short circuit when surged in excess of ratings

u Low Capacitance

Applicable Global Standards:

u TIA-968-A

u ITU K.20/21 Enhanced level

u ITU K.20/21 Basic Level

u GR 1089 Inter building

u IEC 6100-4-5

u YD/T 1082

u YD/T 993

u YD/T 950

Parameter	Definition
I_S	Switching Current - maximum current required to switch to on state
I_DRM	Leakage Current - maximum peak off-state current measured at V_DRM
I_H	Holding Current - minimum current required to maintain on state
I_T	On-state Current - maximum rated continuous on-state current
V_S	Switching Voltage - maximum voltage prior to switching to on stat
V_DRM	Peak Off-state Voltage - maximum voltage that can be applied while maintaining off state
V_T	On-state Voltage - maximum voltage measured at rated on-state current
C₀	Off-state Capacitance - typical capacitance measured in off state

Series	2/10μS¹	8/20μS¹		10/160μS¹	10/560μS¹	10/1000μS¹	5/310μS¹	I_TSM 50/60 Hz	di/dt
	2/10μS²	1.2/50μS²		10/160μS²	10/560μS²	10/1000μS²	10/700μS²
	A min	A min		A min	A min	A min	A min	A min	Amps/µs max
A	150	150		90	50	45	50	20	500
Notes: Current waveform in µs Voltage waveform in µs			- Peak pulse current rating (I_PP) is repetitive and guaranteed for the life of the product. - I_PP ratings applicable over temperature range of -40ºC to +85ºC - The device must initially be in thermal equilibrium with -40°C < T_J < +150°C

Lead Material	Copper Alloy
Terminal Finish	100% Matte-Tin Plated
Body Material	UL recognized epoxy meeting flammability classification 94V-0

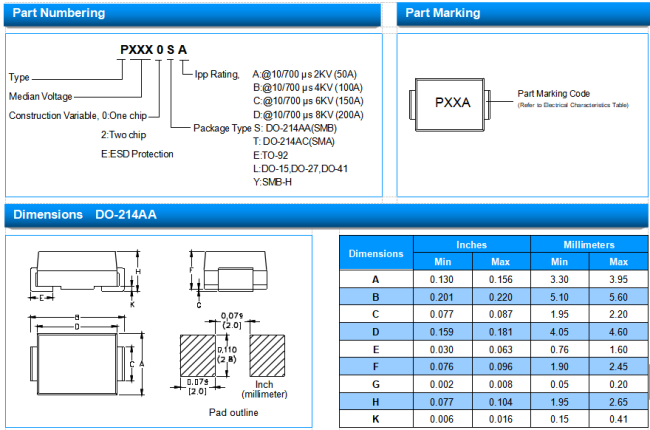

Part Number	Component Package	Quantity	Packaging Option	Packaging Specification
Pxxx0SA	DO-214AA	2500	Tape & Reel -12mm/13″tape	EIA -481 - D
