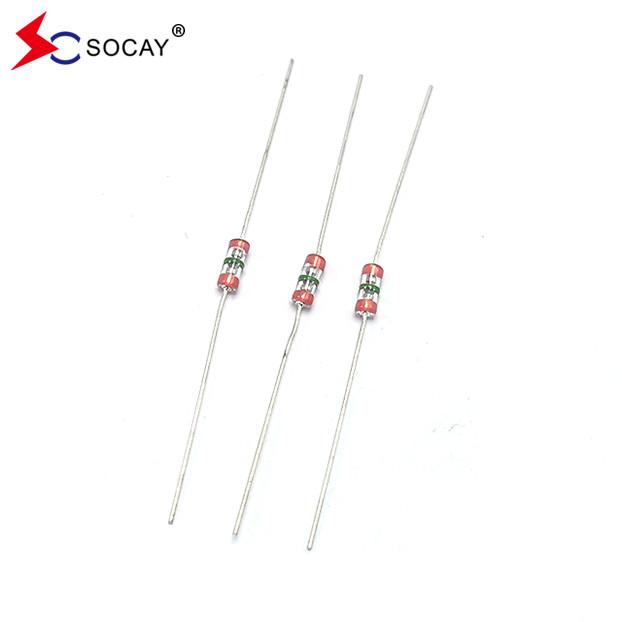

RoHS Compliant Glass Discharge Tube SCC-141N SPG Spark Gap Protectors

DC Spark-over

Voltage

Vs(V)

Minimum

Insulation

Resistance

IR(OHM)/DC

Maximum

Capacitance

1KHZ-6Vmax

C (pF)

Surge Current

Capacity

8/20 μS

u Approximately zero leaking current before clamping voltage

u Less decay at on/off state.

u High capability to withstand repeated lightning strikes.

u Low electrode capacitance (≤1.0pF) and high isolation (≥100MΩ).

u RoHS compliant.

u Bilateral symmetrical.

u Temperature, humidity and lightness insensitive.

u Working temperature: -45℃~ +125 ℃

u Storage temperature: -45℃~ +125℃

u Meets MSL level 1, per J-STD-020

u Power Supplies

u Motor sparks eliminating

u Relay switching spark absorbing

u Data line pulse guarding

u Electronic devices requiring UL497A and UL497B compliant

u Telephone/Fax/Modem

u High frequency signal transmitters/receivers

u Satellite antenna

u Radio amplifiers

u Alarm systems

u Cathode ray tubes in Monitors/TVs
