SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range
SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range
DATASHEET:

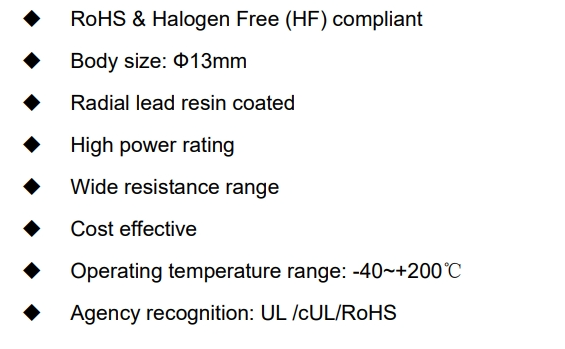

| Features |  |
|||||

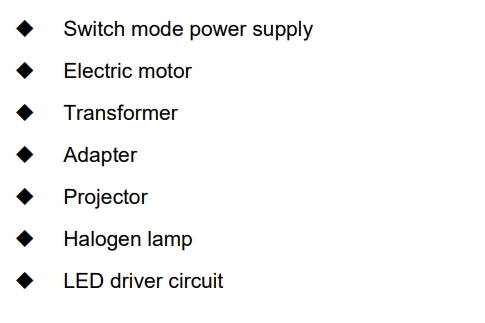

| Recommended Applications |  |
|||||
| Storage Conditions of Products | Storage Conditions: Storage Temperature: -10℃ ~ +40℃. Relative Humidity:≤ 75%RH. Keep away from corrosive atmo Period of Storage: 1 ye |
|||||
| Part Number Code |  |
|||||
| (1) MF72: MF72 Series. (2) SCN: Socay NTC (3) 10D: Zero Power Resistance at 25℃(R25):8 (4) Body Size: 13=Ф13mm |
||||||
Electrical characteristics:
| Part Number | Resistance at 25℃ ±20% |
Max. Permissible Working Current |
Resistance under Load (mΩ) |
Dissipation Factor |
Thermal Time Constant |
Maximum permissible capacitance @240Vac |
| R25(Ω) | Imax(A) | (mΩ) | δ(mW/℃) | τ(Sec.) | C(uF) | |
| MF72-SCN10D-9 | 8 | 4 | 194 | 15 | 60 | 330 |
Maximum Power Rating(Pmax)
Dimensions and Structure (Unit: mm)
| D max | T max | P max | F | H | Lshort / Llong | d | Type |
| 14.5 | 14.5 | 3 | 7.5±0.5 | -- | 7±1/20±1 | 0.75 | S |
| 14.5 | 14.5 | 3 | 7.5±0.5 | 20.5±1 | 4±1/20±1 | 0.75 | K/V/D |
Packing:
| Part Number | Type of L | Quantity (pcs/bag) |
| MF72-SCN8D-13 | Lshort | 250 |
| Llong | 250 |
Dependability:
| Item | Test conditions / Meth | Test Result | |||||
| Tensile Strength of Termin |
Fasten body with a Load Applied to each lead 3.0 | No break out and damage | |||||
| Bending Strength of Terminals |
Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. | No break out and damage | |||||
| Solder Ability | When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95% |
More than 95% so | |||||
| Temp. Cycle Tes | (-40℃×→+25℃×3min) × 5Cycles (-85℃×→+25℃×3min) × 5Cycles |
∣ΔR/R∣≤ ±20% | |||||
| Humidity Test | 45℃ 95%RH×1000 hours | ∣ΔR/R∣≤ ±20 % | |||||
| Load Life | 6 AMP×1000 hou | ∣ΔR/R∣≤ ±20 % | |||||
| Insulation Test | DC 700 | R≥500MΩ | |||||

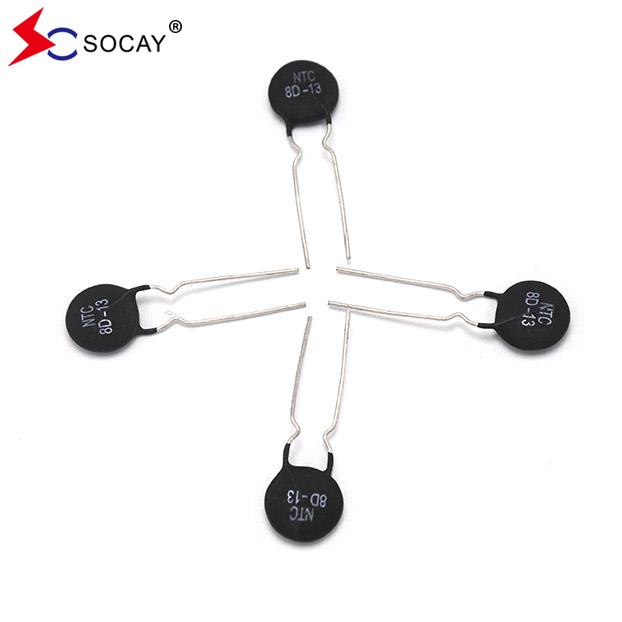

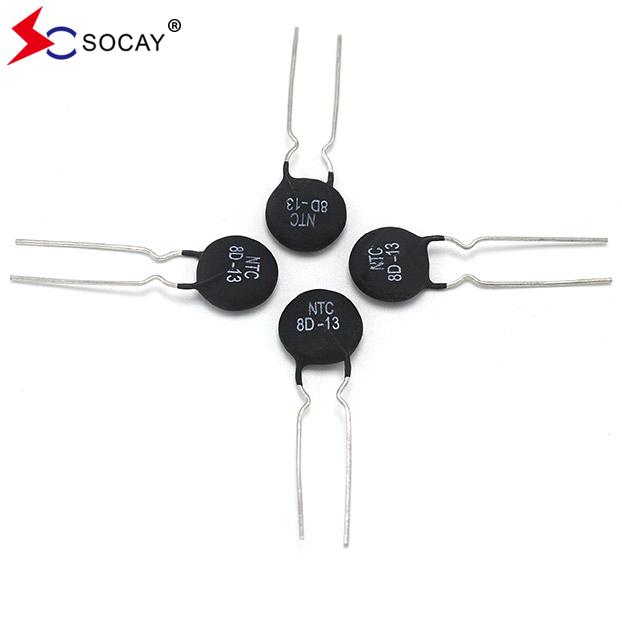

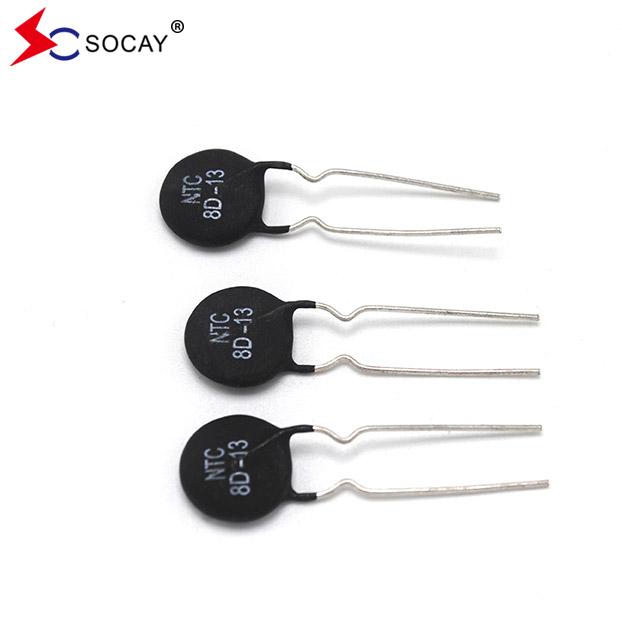

Product Display
