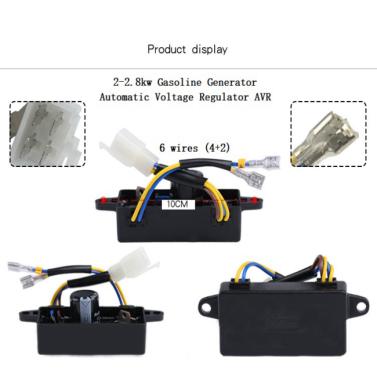

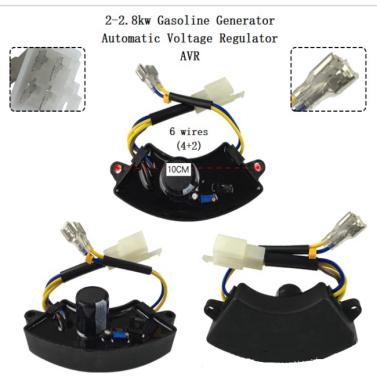

2kw-3kw Aluminium or Plastic Shell Generator Voltage Regulators For Petrol Generator

Overview

1. Supply petrol generator regulator 2kw-3kw general model

2. Applicable brands: Cummins, Kohler, Honda, Yamaha, Robin, Yamaha, Zongshen, Loncin, Generac,Champion,Briggs and

3. Stratton,Onan,Predatoretc etc. AVR automatic voltage regulators.

4. Square shape material: plastic, Fan-shaped material: plastic or aluminium
5. Packaging Details: 100pcs in 1 carton

6. Single gross weight: 0.30kgs

All the following electrical parameters are measured with a true RMS meter.

1. Voltage: 230±2V (factory set parameters environment 25℃±5℃ for generator voltage regulators)
2. Voltage stability: ±1V
3. Steady-state voltage adjustment rate: ≤2％
4. Starting voltage: ≥1.5V
5. generator hot and cold state output voltage stability: ≤ 2V
6. Output voltage temperature drift:≤2V
7. with load capacity:
With 110% of the load, this petrol generator regulator can work for a long time,

with the power factor exceeds the rated load to 1.1, the regulator can work for a long time.

Protection function:

1. Generator rotor excitation short circuit protection.
2. Load output short circuit protection function.
3. Short circuit protection between main and auxiliary windings.
4. Sampling winding dropout protection.
