795315 592841 Ignition Coil For Generator Yamaha M175 MZ360 ET950

Full Spare Parts Generator Ignition Coil For Yamaha MZ175 EF2600 MZ360 EF6600 ET950

Overview

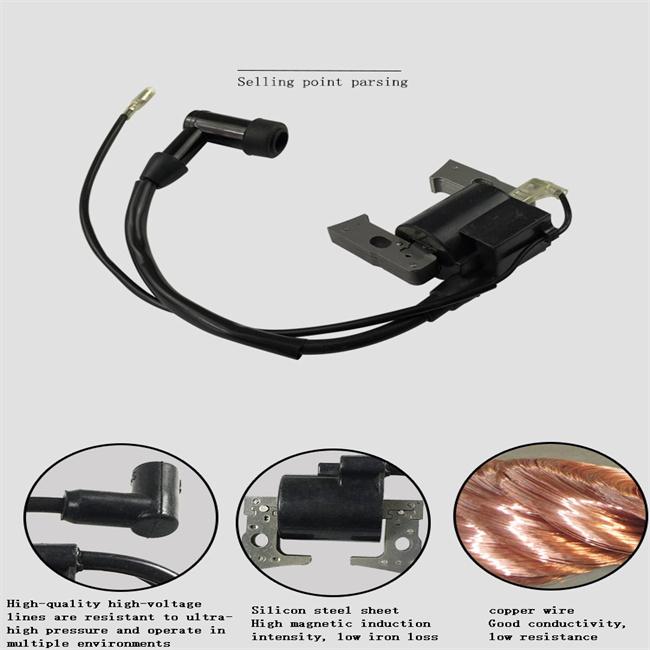

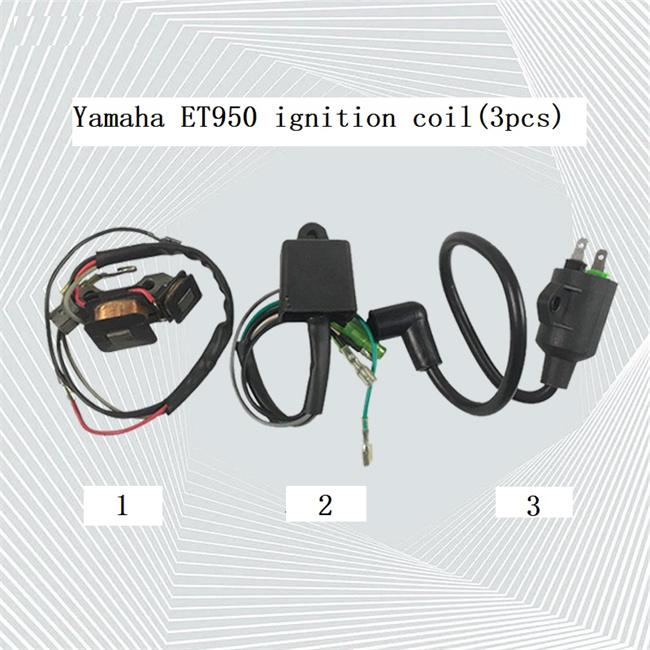

1. Application supply for Yamaha series generator Ignition coil MZ175 EF2600 MZ360 EF6600 ET950

2. Using temp.:-20℃--80℃, Storage temp.: -40℃--100℃

3. Packaging Details: 100pcs in 1 carton

4. Single gross weight: 0.32kgs

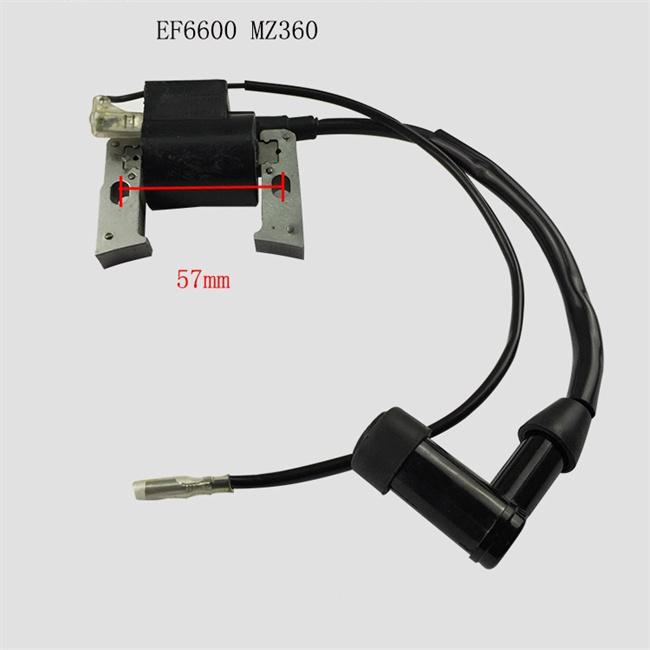

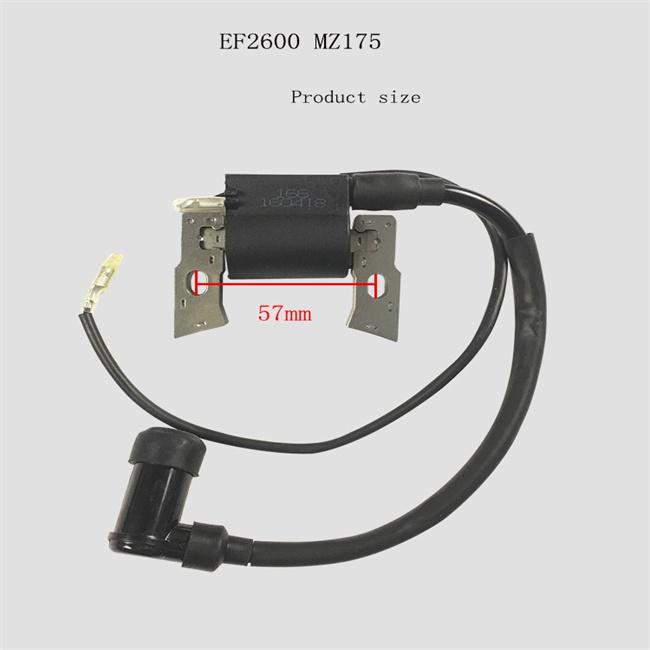

5. The installation size: 57mm/2.24in

6. We can supply the generator ignition coils for follows:

Electrical Specification of Yamaha MZ175 EF2600 MZ360 EF6600 ET950 igntion coil:

Explanation: The following parameters are tested under the condition that the magnetic field strength of the flywheel is not less than 1700      Gauss, the gap between the flywheel and the igniter is 0.4±0.1mm, and the distance between the three needles is 6-6.2mm.
1. The lowest continuous this generator ignition speed of the igniter: ≤ 300rpm.
2. The ignition angle of the igniter at 3000rpm is 25°±1°.
3. Igniter at 3000rpm: secondary output voltage ≥21KV.
4. 3000rpm to provide the oil alarm working voltage peak ≥ 10V.
5. Grounding of the ignition off wire should turn off the ignition within 1 second.
6. In the three needle pole distance of 9-9.5mm, the speed of 3000 rpm can be continuous ignition without breaking fire.
7. The igniter in the high-voltage output open-circuit conditions, at 3000 rpm speed in the above conditions after running more than 5 minutes, its performance meets the above requirements.
