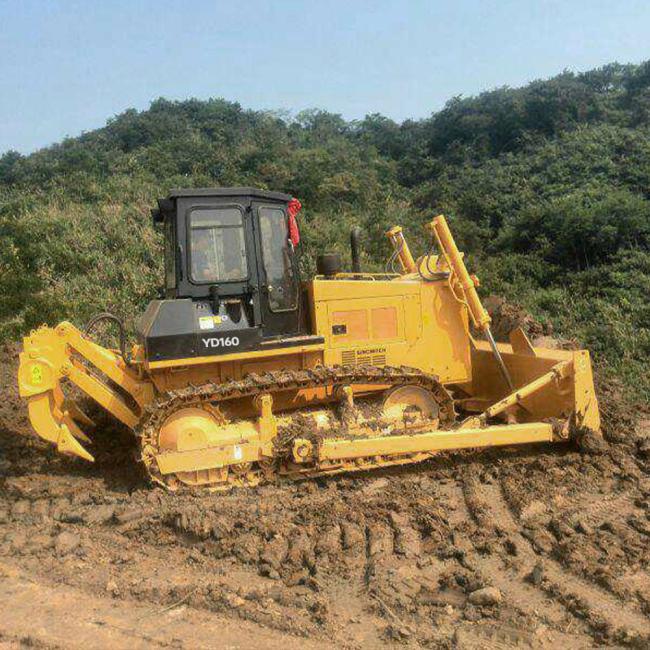

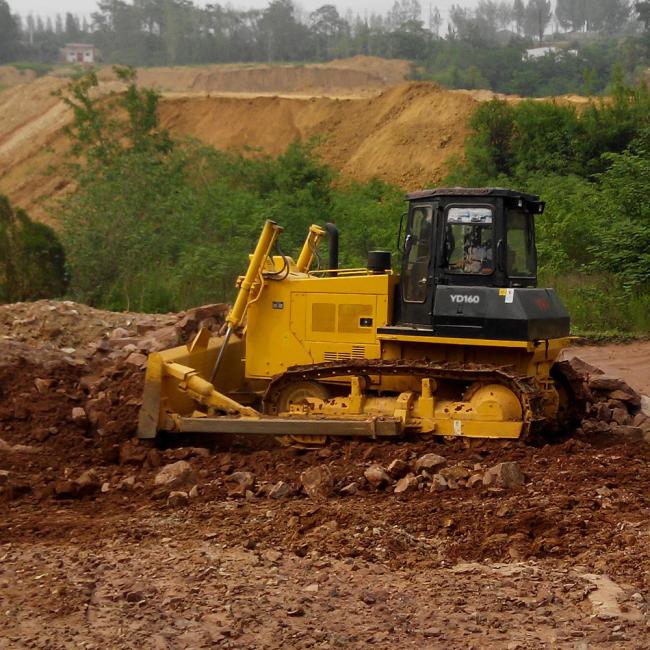

YD160 Hydraulic Crawler Bulldozer 131kw 16.4 Ton 4.55m3 Dozing Capacity
SINOMACH Changlin YD160 Engine Power 131KW 16.4 Ton 4.55m3 Dozing Capacity Hydraulic Crawler Bulldozer
YD160 Crawler Bulldozer
| Operating weight | 16400KG |
| Displacement | 9.726L |
| Engine model | Weichai WD10G178E25 |
| Engine rated power/speed | 131KW/1850r/min |
| Ground pressure | 0.067MPa |
| Engine max torque | 830/1000-1200N.m/rpm |
| Track gauge | 1880mm |
| Dozing capacity |
4.55m3 |
| Blade width | 3440mm |
| Blade height | 1135mm |
| Track shoe width | 510mm |
| Pitch |
203.2mm |
| Grade ability | 30° |
| Max tractor force | 146KN |
| Quantity of Track rollers | 12(8 Double+4 Single) |
FEATURES
1. Cabin Adopt the luxury cab, wider driving vision, more beautiful shape,overhead air-conditioning system,comfortable operating space.
2.GTY16 series bulldozer central transmission assembly is a transmission mechanism between the gearbox and the final transmission, its role is to change the transmission torque and transmission direction of the power system, and the power is transferred to the steering clutch to the final transmission gear, to achieve the bulldozer walking, steering and braking functions. The structure has the characteristics of shifting, smooth transmission and high mechanical efficiency.
3.Under the premise of fully considering the heat dissipation requirements, the front hood and the side rear cover adopt the semi-sealed structure of a long hole grid to facilitate the overall protection of the engine, the suction is smoother, the heat dissipation effect is better, and the noise is greatly reduced.
4. Bulldozer wire harness assembly adopts advanced electrical system design concept, first-class process equipment, to ensure that the line, crimping, assembly, power detection of all aspects of quality control, the manufacturing process strictly implement TS16949 quality system standards, for the reliable operation of the vehicle electrical system to provide a solid guarantee.
5.As the final drive chain rail of the force parts, the tooth block structure strength, wear resistance, service life are very high requirements, Haitui tooth block series products using high-quality alloy steel, advanced forging, die quenching process, to ensure better than the market of similar products good performance.
FAQ
1.Why Choose Us?
CHANGLIN WEA Is Committed To Offer Not Only Products With High Quality And Performance And Competitive
Price, But Also In-Time Delivery And Comprehensive 7*24 After-Sale Services.
CHANGLIN WEA is a large-scale machinery manufacturing enterprise primarily specializes in supplying excavator,wheel
loaders,palm oil tractor and related attachments. We can also customize non-standard products according to customer's
requirements.
3.What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight
with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. and also EPA approval will be available if
needed.
5. How about the delivery time?
About standard products, we always have in stock and can
deliver immediately. But customized products will take more time, depending on the requirements of the order.
