Customization Compact Mini Loader Machine For Road Construction Projects
Hydraulic Agricultural Mini Small Compact Diesel Wheel Skid Steer Loader

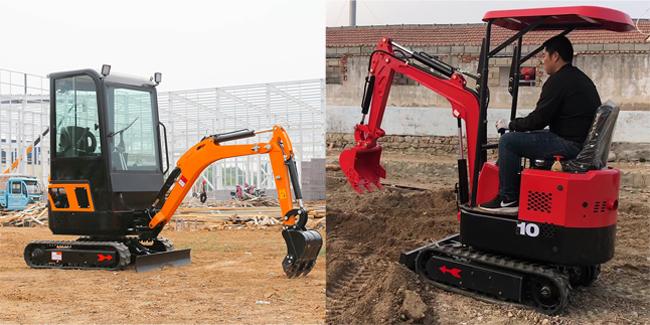

The Mini Excavator has the unique advantage of its smart, lightweight, easy to operate, low price, and convenient for maintenance and repair. Due to its compact size, flexibility, versatility, and high efficiency, it is very hot for excavator users.
Wide applicability. 0.8 Ton Mini Excavator is very suitable for various pipeline excavation, foundation construction, public utilities, and house maintenance operations in towns and cities. The small size and special design make it possible to work in an environment where large excavators cannot be constructed.
Specifications:
| DIMENSIONS | |
| Angle of Departure | 19° |
| Carry Position | 206 mm |
| Dump Angle @ Maximum Height | 36° |
| Dump Height with Standard Bucket | 1272 mm |
| Dump Reach @ Maximum Height | 815 mm |
| Ground Clearance | 159 mm |
| Ground Clearance-under platform | 180 mm |
| Height to Bucket Hinge Pin | 1883 mm |
| Height | 1352 mm |
| Length without Attachment | 1976 mm |
| Length with Standard Bucket | 2637 mm |
| Operating Height | 2649 mm |
| Rollback @ carry | 22° |
| Rollback Fully | Raised |
| Maximum | 94° |
| Ground Contact Length | 918 mm |
| Turning Radius with Standard Bucket | 1593 mm |
| Width | 1104 mm |
| Wheel Tread (over | 904 mm |
| Width with 36" Bucket | 1250 mm |
| Operating Capacity (35%) | 291 kg |
| Operating Capacity (50%) | 416 kg |
| Tipping Capacity | 832 kg |
| Weight (no attachment) | 1069 kg |
| Travel Speed | 5.6 km/h |
| Make/Model | Kubota // D1105-EF02 |
| Fuel/Cooling | Diesel/Liquid |
| Horsepower (SAE Gross) | 18.2kW |
| Maximum Governed RPM | 3000 RPM |
| Torque @ 2200 RPM (SAE Net) | 71.5 Nm |
| Number of Cylinders | 3 |
| Displacement | 1.1L |
| Bore/Stroke | 78mm/78.4 mm |
| Fuel Consumption | 6.1 L/h |
| Lubrication | Gear Pump Pressure |
| Crankcase Ventilation | Closed |
| Air Cleaner | Dry replaceable cartridge with safety element |
| Ignition | Diesel-Compression |
| Engine Coolant | Propylene glycol/water mix (53%-47%) with freeze protection to -37°C Starting Aid |
| Starting Aid | Glow plugs |
| Alternator | Belt Driven; 40 amps; Open |
| Battery | 12 V；45Ah |
| Starter | 12 volt；Gear Reduction Type；1.4 kW |
| Pump Type |
Engine-driven, Two Gear type |
Applications:

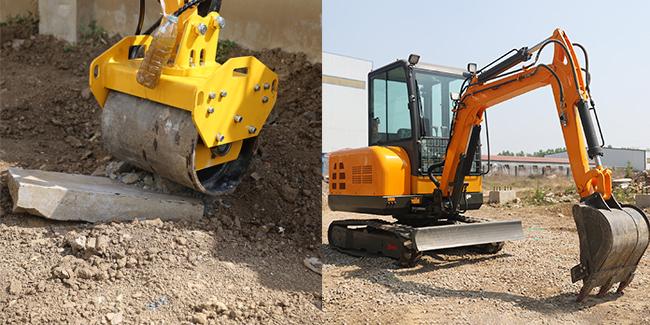

The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining, and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming, and pile pulling.
Our Service:
We support OEM/ODM service, we have professional develop research department, like designs, colors, and also products all can be acceptable customized, we have 3 times supervise on quality control through production line before send out. And quality and service is our first principle of company.We keep 12 months warranty, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).By the way, we support 24Hour customer service by email or phone. Please feel free to contact, we are willing to become your friend and business partner.
