Rectiverter Power Core 220 Vdc 6kVA 1ph MB
Price:
USD1900-3700
MOQ:
10
Delivery Time:
1 week * depends on quantity
Brand:
Eltek
Product Description

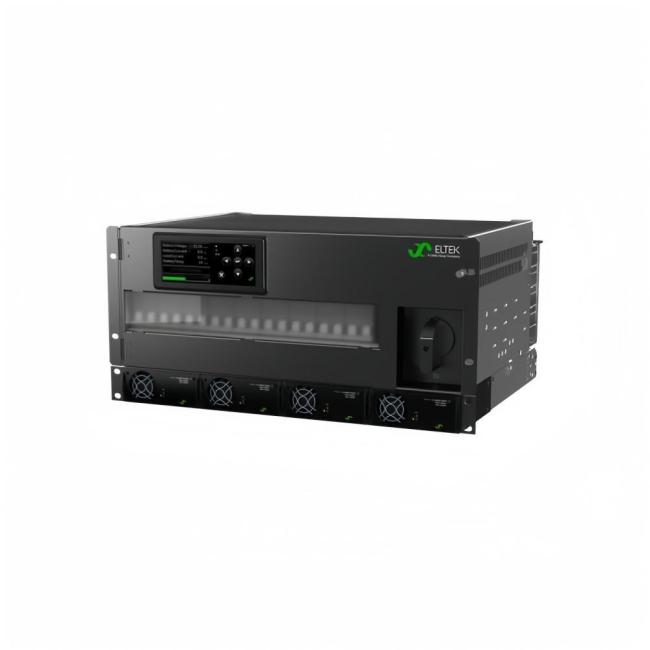

Rectiverter Power Core 220 Vdc 6kVA 1ph MB
- The total output power for both AC and DC output is limited to max 8kW. AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 6kVA and for DC load to max 4,8kW.
- The Rectiverter power core combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 VAC or 115 VAC loads, and 110 VDC power for DC loads and battery charging.
- The total output power for both AC and DC output is limited to max 8 kW. AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 6 kVA and for DC load to max 4,8 kW
Key features
- 230 or 115 Vac input/output
- Single phase input/output
- 110 Vdc input/output
- 8kW total AC + DC output
- Max 6kVA AC output
- Max 4,8kW DC output
- 1 pole AC distribution option
- 2 pole AC distribution option
- Built in manual bypass switch
- Built in transfer technology
- 150% overload capability, 15s
- 600% quick trip current, 20ms
- Hot pluggable
- Smartpack2 controller
