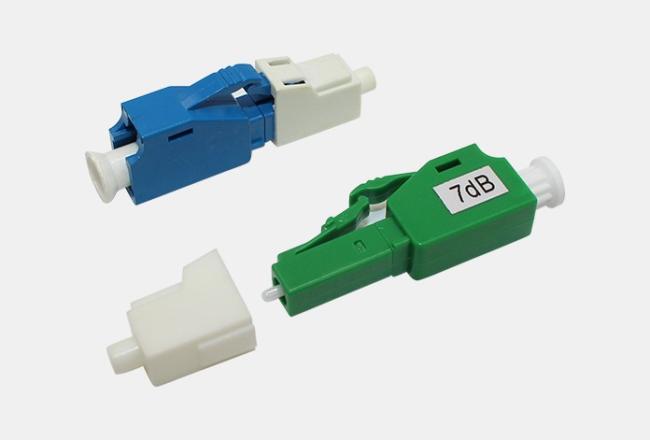

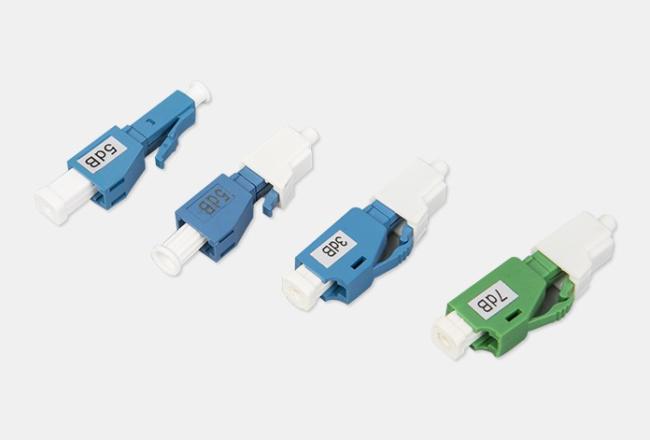

LC UPC Fiber Optical Attenuator Blue 5dB 7dB 10dB 15dB 20dB

LC Attenuator is a passive optical device mainly used to regulate the intensity of optical signals. It can reduce the power of the optical signal to prevent the signal from being too strong and affecting the normal operation of the system.

LC Attenuator adopts LC interface, which is easy to connect with LC fiber, and is usually used in single-mode fiber optic system. Its working principle is to use the interaction between the fiber and the fiber, by adjusting the distance between the fibers or inserting lossy materials to achieve the attenuation of the optical signal.

Products parameters

Parameter	Unit	Value
Operating Wavelength	nm	1310/1550+10
Tolerance for 1-5dB Attenuation	dB	±0.5
Tolerance for 6-30dB Attenuation	dB	±10
Return Loss	dB
Operating Temperature	℃	-40~+75
Polarization Dependent	dB
Mating Durability	cycle	>1000

application

The attenuation of optical signals is a common problem. Too strong or too weak optical signal will affect the stability and reliability of the system.LC Attenuator can be widely used in optical communication, optical sensing, optical measurement and other fields by adjusting the strength of the optical signal to keep it in the appropriate range, which plays an important role in ensuring the quality of the optical signal and at the same time, the stability and reliability of the system.

Our factory

Patch cord workshop

Plastic injection molding workshop

Adapter workshop

Test workshop

Zhejiang Yingfeng Optical Communication Co., Ltd. is a comprehensive enterprise that engages in research and development, manufacturing, sales, and services. With a focus on the field of optical fiber communication, our company specializes in producing and selling a wide range of products. Our primary goal is to provide top-notch connection solutions, site solutions, data center solutions, and professional services to domestic and international telecommunication operators. We are dedicated to delivering innovative and reliable products, as well as excellent customer support, to meet the evolving needs of the telecommunications industry.

Our Certificates



We are committed to providing our customers with high quality products that meet their specific needs and requirements. We conduct strict tests on all our products to ensure their reliability and performance. As a result, our products are highly praised and recognized not only in the domestic market but also in overseas markets.
