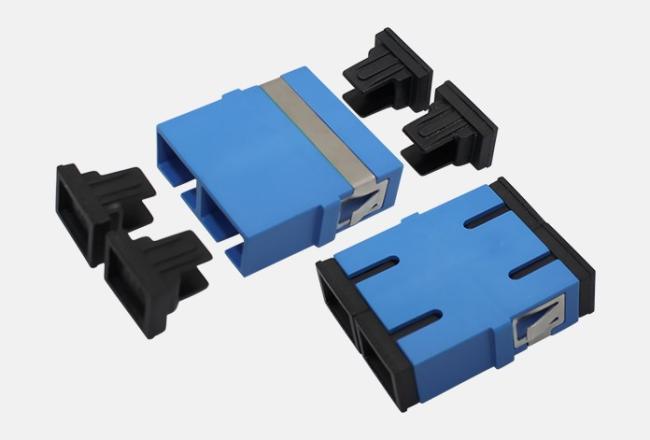

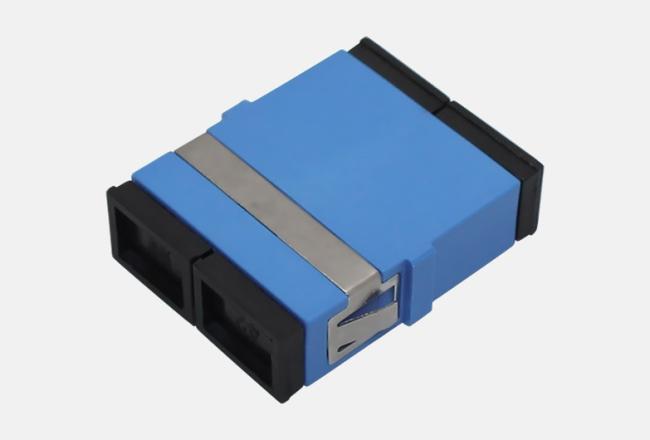

FTTH Fiber Optic Coupler Duplex SC SM Welded Adapter Without Flanges
SC fiber couplers are widely used fiber optic connectors that facilitate the connection of various components, fiber optic communication equipment, and instruments. These couplers ensure stable and reliable performance in optical fiber networks. They enable the connection of optical fibers through an adapter with an internal aperture sleeve.
We offer a wide range of high-performance adapters to ensure optimal connectivity between optical fiber jumpers. These adapters are designed to securely fasten to various panels, and we provide multiple options for fine flange mounting.
The SC fiber couplers are a component that connects two fiber optic connectors, and the fiber is precisely positioned through a ceramic sleeve to achieve low-loss internal connection. It comes with a metal or plastic housing with low insertion loss and high strength. It can achieve high-precision docking and mechanical durability up to 1000 times.
Color: Blue (upc/SM), Green (apc), Beige (pc/MM), Aqua (OM3),Violet(OM4).(Can be customized)
Adapter is supplied with dust caps. Free hanging or panel installation design. The dust cover prevents debris and contamination.
We have many yearsof industry experience, aone-stop service, with astrong production capac-ity to meet the needs ofcustomers for fiber Optic products.
Characteristic
1. SC/LC/FC/ST types are available, allowing flexibility to choose the most suitable connector for your application.
2. UPC and APC options are available, allowing you to choose the polishing type that best suits your needs.
3. Whether you need singlemode or multimode fiber optic cable connections, SC Fiber Couplers are available in both options. You can also choose whether to include a flange on the coupler.
4. Simplex and duplex configurations are available, depending on your specific needs.
5. Low insertion loss and high return loss.
|
Product name |
SC fiber couplers |
|
Connector Polish Type |
UPC |
|
Insertion Loss |
≤0.2dB |
|
Mounting Type |
Without Flange |
|
Color |
Blue |
|
Connector Fiber Mode |
Singlemode |
|
Body Style |
Duplex |
|
Durability |
>500times |
|
Aligment Sleeve Material |
Ceramic |
|
RoHS Compliancy Status |
Compliant |
Application
SC Fiber Couplers are used in a variety of applications including: Fiber Optic Communication Systems, Fiber Optic Access Networks, Fiber Optic Data Transmission, Fiber Optic CATV, Local Area Networks (LANs), Test Equipment, Commercial, Environmental, Security, FTTH, FTTP, FTTA, High EMI, and Commercial applications.
