LC Duplex 3.0 Mm Connector For FTTH Patch Cord

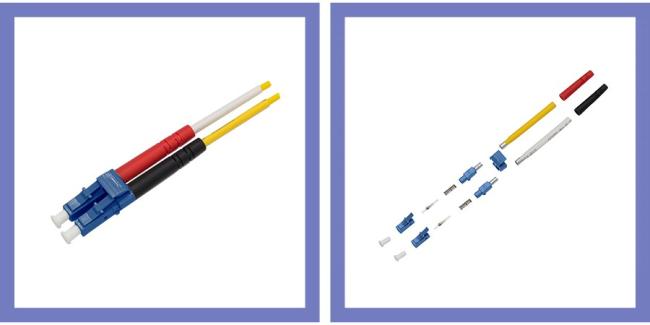

The LC LC Connector contains Dust Cap, Outer Housing, Ferrule Assembly, Spring, Inner Frame, Clip, Riveting Ring, Heat Shrink Tube and Boot. This LC connector (Lucent Connector / Little Connector) product is a fiber-optic cable connector that has advantage in high-density connections. An optical fiber connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing.
Without a doubt, LC LC Connector is the first choice of connector for high-performance networks. From the outside, the LC connection looks like a miniature of the SC connector. The LC connector borrows the split sleeve construction and cylindrical ferrule (usually ceramic) from the SC connector. The LC connectors feature a push-latch design to provide tensile stability in system rack installations.
FEATURES
Low insertion Loss and Back reflection loss
RJ-45 style interface
Polarized and color coded (TIA568-A&ISO 11801)
UL-rated plastic housing and boot
Compact, pull-proof design
Behind-the-Wall style short connector
|
parameter |
LC Connector |
|||
|
SM |
MM | |||
|
PC |
UPC |
APC |
PC | |
|
Insertion loss |
≤0.25dB |
≤0.25dB |
≤0.25dB |
≤0.25dB |
|
Return loss |
≥50dB |
≥55dB |
≥60dB |
/ |
|
operating wavelength |
1310nm, 1550nm |
850nm, 1300nm | ||
|
Ferrule Concentricity |
≤1um |
≤4um | ||
Scope of Application
LC LC connectors are often used in CATV, telecom networks, metro, multimedia, data processing, premises installation, Gigabit Ethernet, etc.
