UPC Simplex Single Mode Fiber Optical Connectors 0.9mm Cable >1000 Times Durability

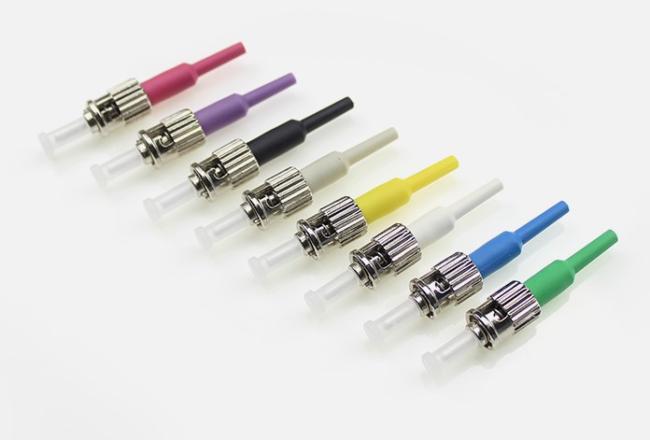

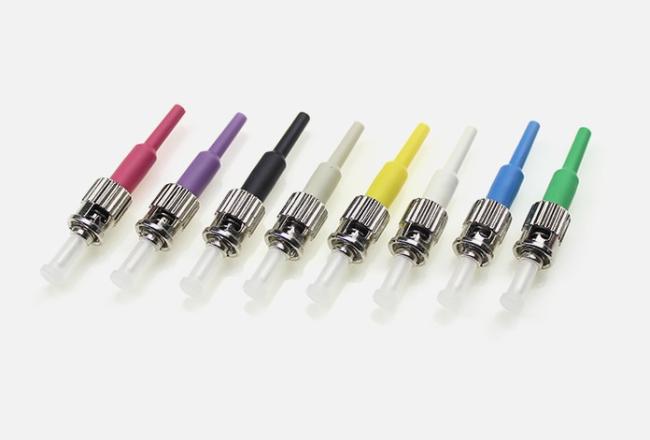

The fiber optic ST connectors used in our patch cords employ half-twist bayonet locking mechanism and high quality 2.5mm zirconia ferrules. They are fully compatible with existing ST type hardware.In addition to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically to guarantee the best quality.
Fiber optic ST connectors require rotary motion to engage and disengage, which makes them easy to install and remove. This design also means that they may not be as convenient to connect and disconnect as frequently compared to other connectors.
Product Features
1.Provides minimal signal loss and reflection
2. Exhibits superior mechanical durability
3. Ensures consistent and reliable performance
4. Good interchangeability
5. Manufactured using environmentally friendly processes, complying with CE and RoHS standards
|
parameter |
Fiber Optic ST Connectors |
|||
|
SM |
MM | |||
|
PC |
UPC |
APC |
PC | |
|
Insertion loss |
≤0.25dB |
≤0.25dB |
≤0.25dB |
≤0.25dB |
|
Return loss |
≥50dB |
≥55dB |
≥60dB |
/ |
|
operating wavelength |
1310nm, 1550nm |
850nm, 1300nm |
||
|
Ferrule Concentricity |
≤1um |
≤4um |
||
Applications
We have many yearsof industry experience, aone -stop service, with astrong production capac-ity to meet the needs ofcustomers for fiber Optic products.
Frequently Asked Questions:
1.Are you a factory or a trader?
......We are the factory.
2.What is your MOQ?
......Regular product MOQ 1 piece.
3.Do you provide sample services?
......Yes, we will provide samples at request.
4.How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
