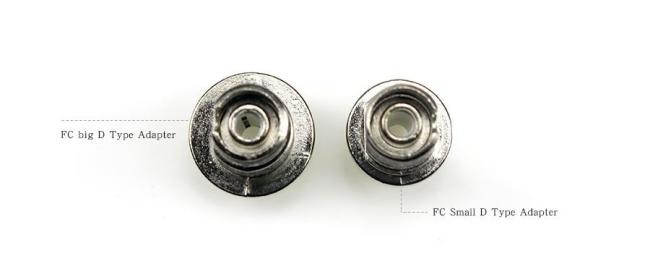

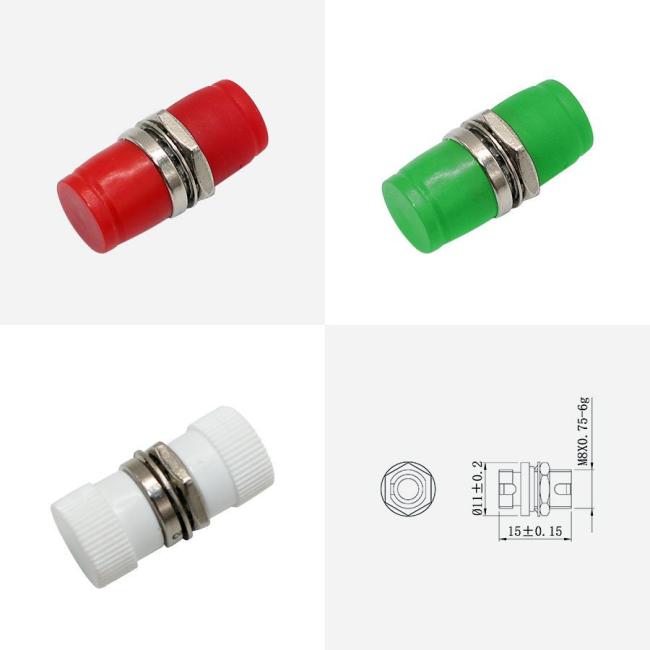

An FC fiber adapter, also known as an FC fiber optic connector adapter, is a type of fiber optic adapter that is designed to connect two FC (Fiber Connector) connectors together. The FC connector is a popular, widely used connector type in telecommunications, networking, and other industries.
Feature
1. High dimensional accuracy, FC Fiber Adapter maintains accurate and consistent dimensions throughout the production or manufacturing process.
2. Good repeatability in that it consistently maintains its performance even after multiple uses.
3. Excellent adaptability, which gives it versatility and flexibility.
4. Good temperature stability, ensuring stable operation over a wide range of temperatures
5. High wear resistance ensures a longer service life
|
Parameter |
Unit |
SM |
MM | ||
|
PC |
UPC |
APC | PC | ||
|
Insertion Loss (Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
|
Exchangeability |
dB |
≤0.2 |
|||
|
Repeatability |
dB |
≤0.2 |
|||
|
Durability |
Time |
500 |
|||
|
Operating Temperature |
°C |
-40~+85 |
|||
|
Storage Temperature |
°C |
-40~+85 |
|||
|
Housing Color |
silver |
||||
|
Dust Cap Color |
Standard red, green dust cap is optional or customized |
||||
|
Sleeve type |
Zirconia |
||||
Application
FC Fiber Adapter supports a variety of applications including CATV systems, telecommunications, optical networking, test and measurement instrumentation, and fiber-to-the-home (FTTH) networks. Providing solutions in a variety of industries and applications ensures that customers can find the right solution for their needs.

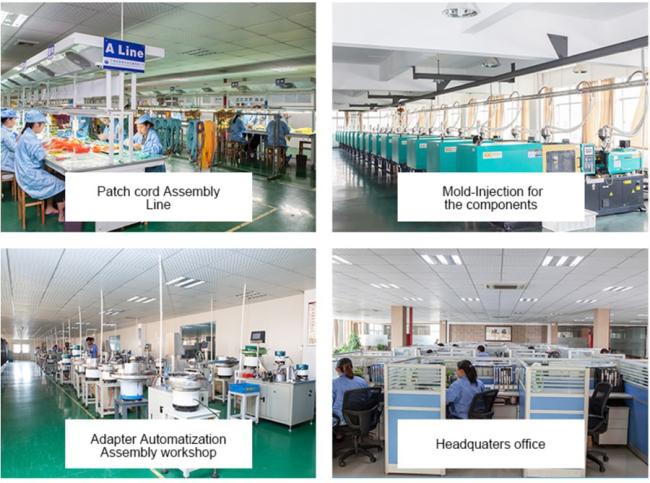

Company Show
Zhejiang Yingfeng Optical Communication Co., Ltd. is an enterprise integrating R&D, production, sales and service. Specializing in the manufacture and sale of products in the field of optical fiber communication. We are committed to providing first-class connection solutions, site solutions, data center solutions and professional services for domestic and foreign operators.
Package
Packing Box : Normally , the packing is 1 pcs in PE bag, then certain pcs into inner carton,at last packed with export carton .
Outer Carton : We will support you to make your own brand carton .
Mode of transport
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea , these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
Our Certificate
Frequently Asked Questions:
1. Can I request customized services?
You can customize a product through the product details page or by contacting your account manager. We will do our best to meet the needs of all customers.
2. How do I change items in my order?
If you have not completed payment for the order, please cancel the order and place a new one with all of the required items.
If you have already paid, please contact your account manager to change items for you. You can then place a new order. Changes or modifications can be made to an order as long as it is before shipping has been processed.
3.How will you ship to me?
We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity
4. What payment methods are supported on Zhejiang Yingfeng?
We accept Paypal, Credit Card, Bank Transfer, and Net Terms. For more information, please talk with our sales team.
5.What is your MOQ?
Normally is 1pcs/item,could be coordinated if you have detail requirements.
