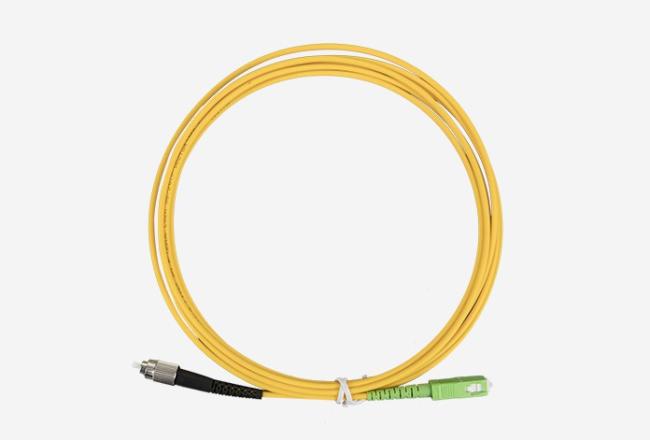

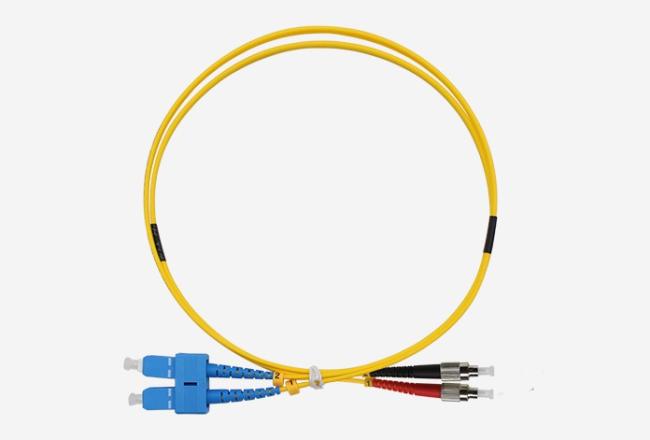

SC to FC patch cord is used as a patch cord from the equipment to the fiber optic cabling link. One end has a SC fiber connector, the other end has a SC fiber connector, there are simplex duplex options. Generally used between the optical end and the junction box at the connection.
We can provide a full range of fiber optic connectors according to customers' needs, and the quality of all our products meet or exceed industry standards. Fiber optic cable can be provided as single core, dual core and multi-core, and connectors can be provided as SC/FC/LC/ST/MU/MTRJ/MPO/E2000 etc.
Characteristic
1. Fiber mode: MM /SM
2. Low insertion loss and high return loss.
3. Excellent repeatability and variability
4. Simplex and duplex selectable.
5. PVC&LSZH fiber optic cable.
6. 100% factory tested.
|
SC to FC patch cord |
|||
|
Characteristic |
SM , MM |
||
|
Connector type |
FC/SC/ST/LC/MU/MTRJ/E2000/MPO |
||
|
Diameter(mm) |
0.9,2.0,3.0 |
||
|
Polishing grade |
SM |
APC |
MM |
|
Insertion loss |
≤0.2dB |
≤0.2dB |
≤0.2dB |
|
Return loss |
≥50dB |
≥60dB |
≥30dB |
|
Interchangeability |
≤0.2dB |
||
|
Repeatability |
≤0.2dB |
||
|
Operation temperature |
-40~+85℃ |
||
Applications
SC to FC patch cord can be used in fiber optic communication systems, fiber to the home (FTTH), fiber optic data transmission, fiber optic cable television (CATV), local area networks (LAN), optical test equipment, fiber optic sensors and other applications. Transmission of optical signals is achieved by connecting two types of fiber optic connectors, SC and FC.SC and FC are common fiber optic connector types that provide reliable fiber alignment and connection performance.
Company Profile
We have a high degree of confidence in the quality of our products. If you find a product is faulty or does not meet your expectations, we will provide a replacement. Simply contact our customer service team with the relevant details and we will deal with your request as soon as possible and ensure you receive a satisfactory solution.
FAQ
1. Are you a manufacturer?
We have been manufacturing and specializing in fiber optic products for over 30 years
2. Can you customize our logo?
No problem, please contact our sales for more details
3. Can I provide samples for quality testing?
There is no minimum order quantity for this, you can purchase 1PCS for testing.
4. What are the payment methods?
We accept TT, Western Union, Paypal.
