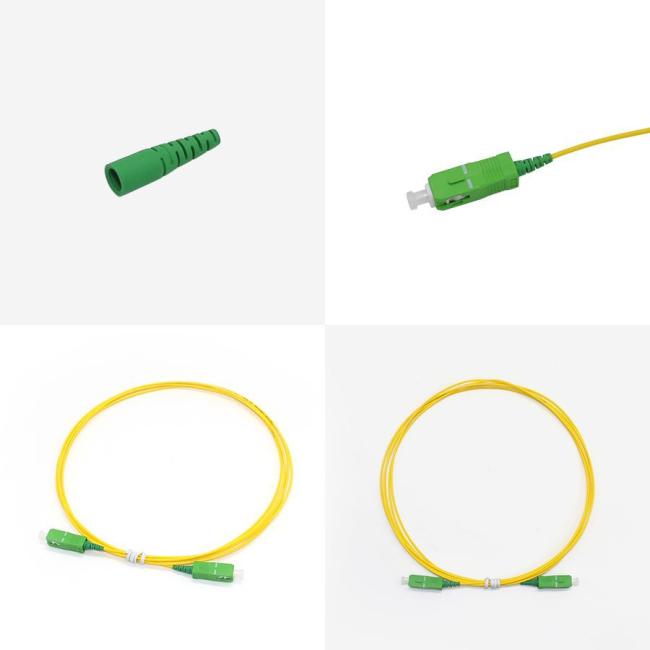

SC APC Fiber Optic Patch Cables Jump Cord Customized SX DX PVC LSZH
SC fiber optic patch cables are very reliable components with low insertion loss and return loss. They are available in simplex or duplex cable configurations.YingFeng provides optical fiber connectors of ST, SC, LC, FC, MU and MTRJ PC, UPC or APC polish types are available in any combination to meet your needs.
This SC fiber optic patch cables has the following options to customize
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, SMA
2. Core endface: PC, UPC, APC
3. Core type: single mode (SM: 9/125um), multimode (MM: 50/125um or 62.5/125um)
4.The number of cables: Simplex, Duplex
5. Cable diameter: 0.9mm 1.2mm 2.0mm 3.0mm
6. Cable length: customized
7. Cable type: PVC, low smoke and halogen-free
Features
1. Low insertion loss and back reflection loss
2. Pre-dome on the end face of the collar
3. Excellent mechanical durability
4. Good repeatability
5. CE, RoHS compliant
|
parameter |
SC Connector |
|||
|
SM |
MM | |||
|
PC |
UPC |
APC |
PC | |
|
Insertion loss |
≤0.25dB |
≤0.25dB |
≤0.25dB |
≤0.25dB |
|
Return loss |
≥50dB |
≥55dB |
≥60dB |
/ |
|
operating wavelength |
1310nm, 1550nm |
850nm, 1300nm |
||
|
Ferrule Concentricity |
≤1um |
≤4um |
||
Scope of application
SC Fiber Optic Patch Cables are a versatile and reliable choice for a variety of fiber optic applications, including fiber optic communication systems, fiber optic access networks, fiber optic data transmission, fiber optic CATV, local area networks (LANs) and test equipment.

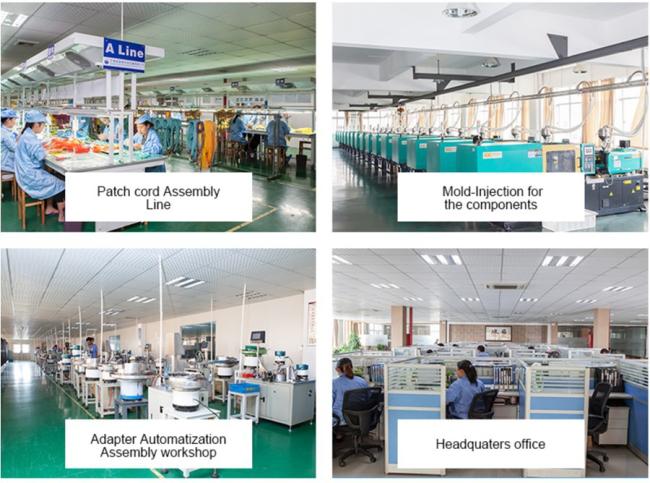

Company Show
Why choose us?
1.We have first-class production line and strict quality management system.
2.We can give customers the most competitive price to meet your budget.
3.We have big production capacity to guarantee fast delivery and on-time shipment.
4.We have professional team to provide comprehensive one-stop service for you.
Our Certificate
Common Problems
1. When will I receive a quote?
Normally, the quotation will be replied within 24 hours (excluding weekends), but in special cases it will take a few days.
2.What is the quality of the products?
Our factory has been in the industry for over 30 years and sells to many countries around the world. We have a range of professional testing equipment and manufacturing instruments to ensure the reliable quality of our products.
3.How can I be sure that you are a reliable supplier?
Alibaba acts as a third party to verify our factory and office to confirm that we are a real and reliable supplier. If you want you can verify by phone or video, our factory is in Ningbo near Shanghai, you are welcome to come and visit us any time.
4.Can you accept OEM and what is the MOQ?
Of course, we always welcome your custom order. regular product MOQ 1 piece.
