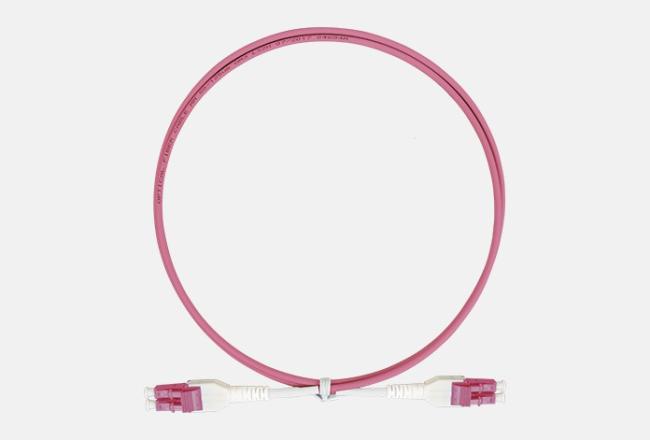

LC Uniboot Fiber Cable
An optical patch cord, also known as a fiber patch cord or fiber optic patch cable, is a cable that is used to connect optical devices, such as fiber optic transceivers, switches, and routers. It consists of two fiber optic connectors on each end, and a length of fiber optic cable between them.
LC (Lucent Connector): LC connectors are small, with a latch mechanism for secure connections. They are commonly used in high-density applications.
Features
1.Unique Push-Pull Design and Function
2.Easy to Assemble and Use
3.Low Insertion Loss and Back Reflection
4.High Repeatability and Reliability
| parameter | LC Connector | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Ferrule Concentricity | ≤1um | ≤4um | ||
Packaging and Transportation
|
|
|
LC Uniboot Fiber Cable is packaged in a clear plastic bag. This simple method of packaging provides basic protection, and the package is usually labeled or marked with a tag or logo indicating the fiber optic cable's model number, specifications, length, and other pertinent information.

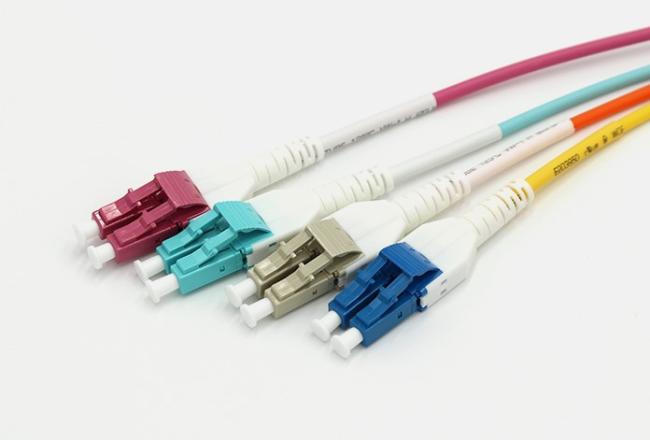

More UNIBOOT Patch Cords
In addition to LC Uniboot fiber cable, we also produce Uniboot fiber optic patch cords with switching polarity, connectors and fiber optic cable colors can be customized.
Company Profile
FAQ
1.Are you a factory or a trader?
......We are the factory.
2.What is your MOQ?
......Regular product MOQ 1 piece.
3.How do we pay
......Multiple payment methods such as T / T and Paypal,Western Union.
4.How long is your product warranty?
......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.
