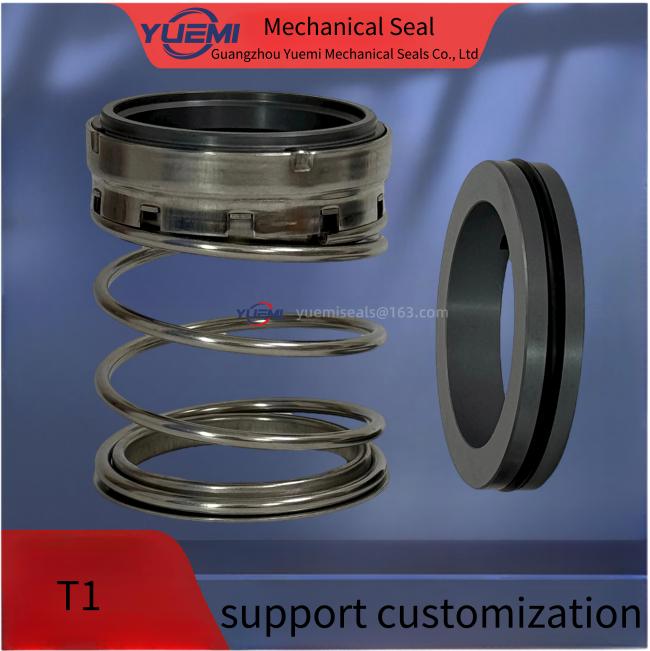

John Crane Type 1 Mechanical Seals For Chill Water Pumps Goulds 3196 St Pump
Operating Limits
Pressure: ≤2.8MPa
Speed: ≤13m/s
Temperature: -30℃ ~+200℃
·Rotary Ring(Carbon/SiC/TC)
·Stationary Ring(Ceramic/SiC/TC/SUS304)
·Secondary Ring(NBR/EPDMNITON)
·Spring & Other Parts(SUS304/SUS316)
Replace John Crane Type 1 (US Standard).

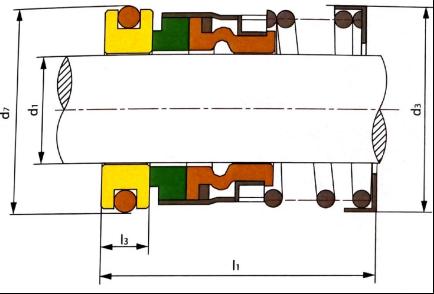

| Model | d,(inches) | d, | d, | 1 | 1, |
|
T1-1" T1-1 1/8" T1-1 1/4" T1-1 3/8" T1-1 1/2" T1-1 5/8" T1-1 3/4" T1-1 7/8" T1-2" T1-2 1/8" T1-2 1/4" T1-2 3/8" T1-2 1/2" T1-2 5/8" T1-2 3/4" T1-2 7/8" T1-3" |
25.400 28.575 31.750 34.925 38.100 41.275 44.450 47.625 50.800 53.975 57.150 60.325 63.500 66.675 69.850 73.025 76.200 |
38.1 41.5 46.0 47.6 50.8 57.2 60.5 63.5 66.7 71.4 74.6 77.8 81.0 85.7 88.9 92.0 95.2 |
41.275 44.450 47.625 50.800 53.975 60.325 63.500 66.675 69.850 76.200 79.375 82.550 85.725 85.725 88.900 95.250 98.425 |
50.77 52.40 52.40 53.90 53.90 63.50 63.50 66.70 66.70 74.60 74.60 77.80 77.80 85.75 85.75 88.90 88.90 |
11.1 11.1 11.1 11.1 11.1 12.7 12.7 12.7 12.7 14.3 14.3 14.3 14.3 15.9 15.9 15.9 15.9 |
Product Description
Replace John Crane Type 1 (US Standard).
Operating Limits:
Pressure: ≤2.8MPa
Speed: ≤13 m/s
Temperature: -30ºC~+200ºC
Rotary Ring(Carbon/Sic/tc)
Stationary Ring(Ceramic/Sic/Tc/SUS304)
Secondary Ring(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)
Sleeve material SUS304 or SUS316 and coating with Cr2O3
We use the very best in Ceramics, Carbon, Tungsten Carbides and other exotic materials for a quality fit and operation in-between servicing and maintenance.
We also make cartridge seals to replace Type1 seals when pumps run under harsh conditions.
