Aesseal W01 Mechanical Seal Roten 7K Wave Spring Seal For Water Pump
Price:
consult
MOQ:
1/PCS
Delivery Time:
5-8 word days
Brand:
YUE MI
Product Description
Product Description

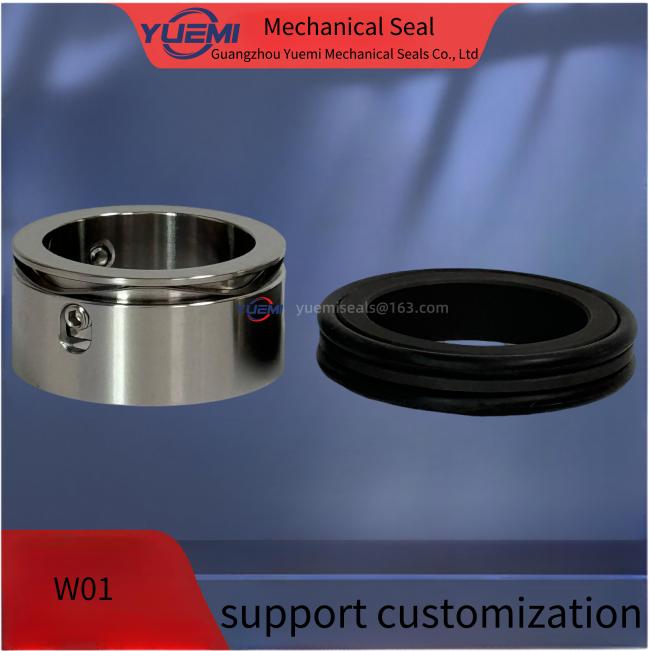

Aesseal W01 Mechanical Seal Roten 7K Seal For Water Pump
Operational Conditions:
-
Wave sprung grub screwed thin Cross Section' short working length mechanical seal.
Available in Food Grade materials as standard (With FDA compliant materials).
-
Wave spring mechanical seal
- Mediums: Water, oil, weak acid, weak alkali, etc.
It is equivalent to
- Roten 7K/Uniten 7K mechanical seal
- John Crane 80 (DF/ FP) seal
- Aesseal W01 seal
- Flowserve 168 seal
- Latty T510
- Roplan 800/ 850 seal
- Sterling 280 seal
|
P (mm) |
D1 | D3 | L1 | L2 |
| 15.8 | 28.5 | 27.0 | 19.1 | 6.3 |
| 16.0 | 28.5 | 27.0 | 19.1 | 6.3 |
| 19.1 | 31.7 | 30.0 | 19.1 | 6.3 |
| 24.0 | 35.4 | 34.1 | 19.1 | 7.6 |
| 28.0 | 42.0 | 40.0 | 19.1 | 7.6 |
| 28.6 | 41.2 | 39.5 | 19.1 | 7.6 |
| 30.0 | 42.7 | 41.0 | 19.1 | 7.6 |
| 31.7 | 44.2 | 42.4 | 19.1 | 7.6 |
| 32.0 | 44.4 | 42.4 | 19.1 | 7.6 |
| 35.0 | 47.6 | 45.5 | 19.1 | 7.6 |
| 38.0 | 53.9 | 51.8 | 21.1 | 8.1 |
| 44.4 | 60.3 | 58.2 | 21.1 | 8.1 |
| 47.6 | 63.5 | 61.4 | 21.1 | 8.1 |
| 50.0 | 63.9 | 61.9 | 21.1 | 8.1 |
| 50.8 | 66.6 | 64.6 | 22.1 | 9.6 |
| 53.9 | 73.0 | 71.0 | 22.1 | 9.6 |
| 54.0 | 73.9 | 71.0 | 22.1 | 9.6 |
| 54.6 | 75.0 | 72.0 | 22.1 | 9.6 |
| 55.0 | 75.0 | 72.0 | 22.1 | 9.6 |
| 63.0 | 83.0 | 79.3 | 25.8 | 9.1 |
| 63.5 | 88.9 | 79.3 | 25.8 | 9.1 |
| 69.8 | 95.2 | 88.9 | 25.8 | 9.1 |
| 73.0 | 98.4 | 94.0 | 25.8 | 9.1 |
| 75.0 | 100.4 | 96.0 | 25.8 | 9.1 |
Description:
|
Temperature
|
-20ºC to 200ºC, Dependent on the elastomer
|
|
Pressure
|
≤0.8MPa |
|
Speed
|
≤ 15m/Sec |
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
From 15.8 to 75
|
|
Brand
|
YueMi
|
|
Face
|
Carbon, SiC
|
|
Seat
|
Ceramic, Silicon Carbide, TC
|
|
Elastomer
|
NBR, EPDM, VIT etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
