Wemco Hidrostal Pump Kb Mechanical Seal Rubber Bellows Sanitary Pump Seal

Price Negotiable

Price: consult

MOQ: 1/PCS

Delivery Time: 5-8 word days

Brand: YUE MI

Product Description

Mechanical seals compatible for Hi-drostal® pumps.
Type M and Type G and X seals are available.
Possibility of supplying these special designs for different shaft diameters in inches.

Equivalent with HIDROSTAL PUMPS seals
Shaft size:5/8 inch, 1 1/8 inch, 1 1/2 inch,2 inch, 28mm, 35mm and 50mm .

(If you need other sizes, please contact with us).

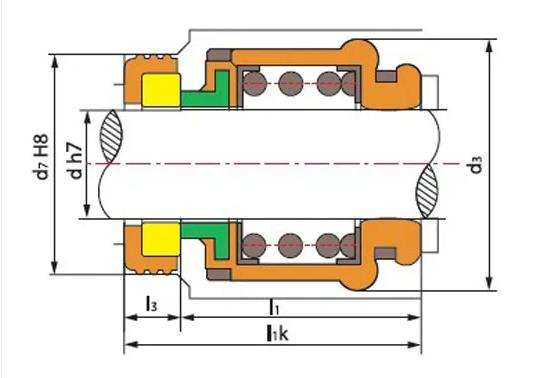

Seal size (mm)		d		d3		d7		l1k		l1		b
28		28 35 50		50.0 64.0 74.5		44 54 70		40.0 45.5 57.4		30.0 35.5 45.2		10.0 10.0 12.2
35
50
Seal size (inch)	d		d3		d7		l1k		l1		b
1-1/8"	28.575 38.100 50.800		50.0 66.0 75.5		44.450 53.975 69.850		41.1 45.5 58.2		30.0 35.5 45.2		11.1 10.0 13.0
1-1/2"
2"

Mechanical Seals for Hidristahle HIDROSTAL

Temperature	-30ºC to 200ºC, Dependent on the elastomer
Pressure	Up to 10 bar
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Brand	yuemi
Size	1 1/8' , 1 1/2" , 2.000"
Face	Carbon,Sic,TC
Seat	SiC,TC
Elastomer	NBR, EPDM, VITON
Spring	SS304, SS316
Metal parts	SS304, SS316
