Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring
Price:
consult
MOQ:
1/PCS
Delivery Time:
5-8 word days
Brand:
YUE MI
Product Description
Product Description
Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.
High Quality Mechanical Seals
156 mechanical seal
|
Temperature
|
-30ºC to 200ºC, dependent on the elastomer
|
|
Pressure
|
Up to 5 bar
|
|
Speed
|
Up to 10 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
8mm to 50mm
|
|
Brand
|
YM
|
|
Face
|
Ceramic, SIC, TC
|
|
Seat
|
Carbon, SIC, TC
|
|
Elastomer
|
NBR, EPDM, VITON
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
Operating Limits:
Pressure: ≤0.5MPa
Speed: ≤10m/s
Temperature: -30ºC~+200ºC
Rotary Ring(Plastic Carbon/Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)

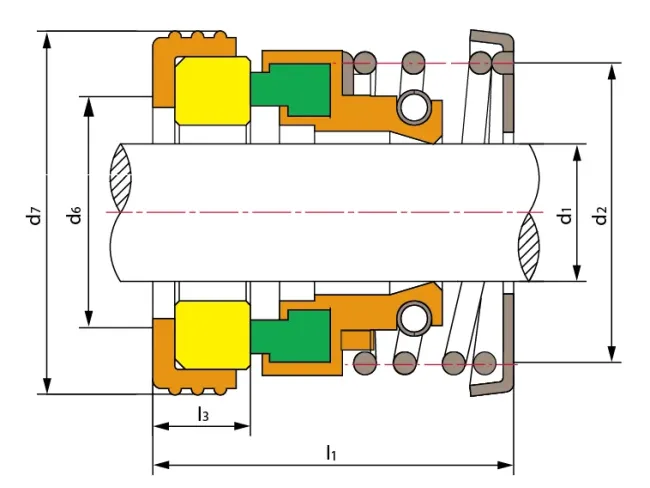

| Model | d1 (mm) | d2 | d6 | d7 | l1 | l3 |
| 156-8 | 8 | 16 | 13 | 18/21 | 18 | 5/6 |
| 156-9 | 9 | 18 | 16 | 21 | 23 | 6 |
| 156-10 | 10 | 20 | 16 | 20/22/24 | 23 | 6.5 |
| 156-11 | 11 | 20 | 16 | 24 | 23 | 7 |
| 156-12 | 12 | 22.5 | 17 | 26 | 24 | 7 |
| 156-13 | 13 | 22.5 | 17 | 26 | 24 | 7 |
| 156-14 | 14 | 24.5 | 21 | 28/30 | 25 | 7 |
| 156-15 | 15 | 24.5 | 21 | 28/30 | 25 | 7 |
| 156-16 | 16 | 28.5 | 22 | 32 | 27 | 8 |
| 156-17 | 17 | 28.5 | 22 | 32 | 27 | 8 |
| 156-18 | 18 | 31.5 | 25 | 35 | 29 | 8 |
| 156-19 | 19 | 31.5 | 25 | 35 | 29 | 8 |
| Model | d1 (mm) | d2 | d6 | d7 | l1 | l3 |
| 156-20 | 20 | 31.5 | 27 | 38 | 31 | 8 |
| 156-22 | 22 | 34.5 | 29 | 40 | 32 | 8 |
| 156-25 | 25 | 37.5 | 32 | 44 | 33 | 9 |
| 156-28 | 28 | 40.5 | 34 | 46 | 34 | 9 |
| 156-30 | 30 | 44.5 | 38 | 50 | 35 | 9 |
| 156-32 | 32 | 47.5 | 40 | 54 | 37 | 9 |
| 156-35 | 35 | 50.5 | 44 | 58 | 40 | 10 |
| 156-38 | 38 | 55 | 46 | 60 | 42 | 10 |
| 156-40 | 40 | 56.5 | 48 | 64 | 43 | 10 |
| 156-45 | 45 | 61.5 | 52 | 66 | 45 | 10 |
| 156-50 | 50 | 66.5 | 58 | 72 | 47 | 10 |
