Mechanical Seal Glf-12mm 16mm 22mm Replace Grundfos Type H Seals For Grundfos Pump Cr
Price:
consult
MOQ:
50/PCS
Delivery Time:
5-8 word days
Brand:
YUE MI
Product Description
It is suitable to GLF Pumps:
Model:CR1,3,5,10,15,20,32,45,64,90;
Model:CRN1,3,5,10,15,20,32,45,64,90
Working Conditions
Temperature:-30ºC to 180ºC
Pressure: ≤1.0MPa
Speed: ≤10m/s
Materials
Faces: Sic,Ssic,TC,Car
Secondary Seal : Viton ,EPDM, NBR
Metal Parts : SUS304,SUS316
springs: SUS304,SUS316
| Description: Mechanical Seal HQQE Series Material : Sic/Sic/V and TC/TC/V |
Operating Limits Temperature: - 30ºC~+200ºC Pressure: ≤10Mpa Speeds:≤12m/s |
| Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc.It is ideal with high or pulsing counterpressure or with viscous or sticky fluids. | |
| Suit to replace original mechanical seal: CRIL shaft size 3,5,10,15,20,32,45,64,90HQQE Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards |
|

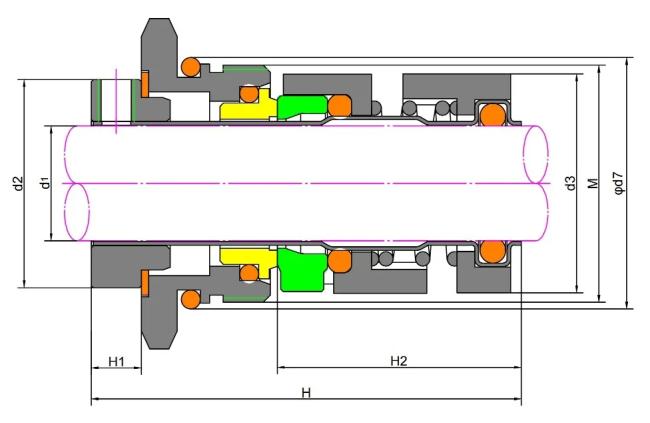

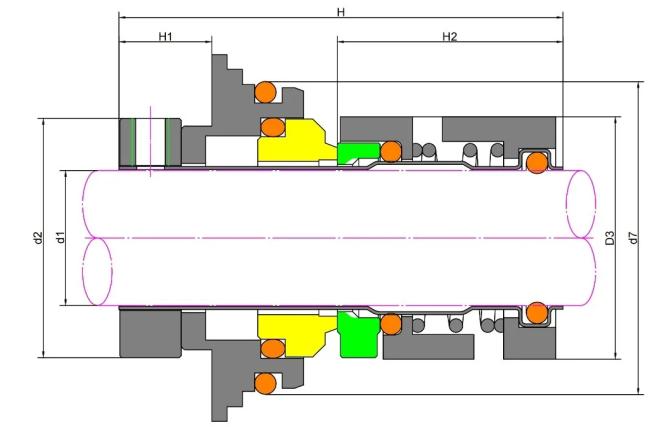

| d | D1 | D2 | D3 | D4 | L | L1 | L2 | |
| 12 | 25 | 29 | 33.5 | 25 | 55.5 | 4 | 44.5 | |
| 16 | 30.5 | 34 | 40.5 | 29 | 58 | 5 | 46 |
