AES Roten Type 2 Single Spring Water Pump Mechanical Seal Hot Oil Pump

Price Negotiable

Price: consult

MOQ: 20/PCS

Delivery Time: 5-8 word days

Brand: YUE MI

Product Description

Operational Conditions:
Temperature: -20ºC to +180ºC
Pressure: ≤1.0MPa
Speed: ≤15m/s

Materials:
Stationary Ring: Silicon Carbide, Carbon, TC
Rotary Ring: Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel

Applications:
Clean water,
Sewage water
Oil and other moderately corrosive fluids

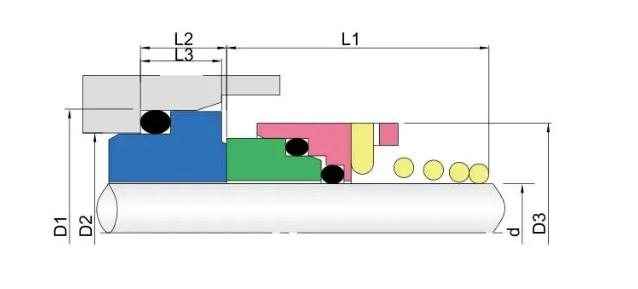

Dimensions

Size/	D3	D1	L2	L1
Metric	D3	D1	L2	L1
8	16	17.1	5.5	15.2
10	17.5	18.1	5.5	15.2
12	20	20.6	5.5	18.2
14	23	23.1	6	22.2
15	24	26.9	7	22.2
16	26	26.9	7	23.2
17	27	26.9	7	23.2
18	29	30.9	8	24.2
19	30	30.9	8	25.2
20	30	30.9	8	25.2
22	34	35.4	8	25.2
24	35	35.4	8	27.2
25	37	38.2	8.5	27.2
26	38	38.2	8.5	27.2
28	42	43.3	9	29.2
30	43	43.3	9	30.2
32	45	43.3	9	30.2
33	48	53.5	11.5	39.2
35	50	53.5	11.5	39.2
38	54	60.5	11.5	39.2
40	56	60.5	11.5	39.2
42	59	60.5	11.5	39.2
43	60	60.5	11.5	39.2
45	64	65.5	11.5	41.2
48	68	65.5	11.5	41.2
50	69	72.5	11.5	45.2
55	74	72.5	11.5	47.2
60	80	79.3	11.5	49.2
65	87	84.5	11.5	51.2
70	92	89.5	11.5	51.2
75	97	94.5	11.5	57.2
80	102	99.5	11.5	59.2
85	110	105.5	13.5	59.2
90	117	111.5	13.5	62.2
95	122	116.5	13.5	62.2
100	127	119.5	13.5	75.2

Technical specifications

Temperature	-20 till 200 °C
Pressure	10 bar
Rotational velocity	20 m/s
Rotating left	Yes
Rotating right	Yes
Balanced	No
Stationary faces	-
Rotary faces	Carbon, Silicon carbide, Stainless steel 316, Tungsten carbide,
Elastomers	Aflas, EPDM, FEP Viton/Silicone, Kalrez, Nitrile, Silicone, Viton,
