104 Mechanical Seal Dyeing Tank / Printing / Emulsifying Pot TC/TC/FKM
Price:
consult
MOQ:
20/PCS
Delivery Time:
5-8 word days
Brand:
YUE MI
Product Description
104U series specifictIion:
| Seal Type | 104U series |
| Shaft size | Full size(16-120mm) |
| Temperature | -20 degree to 180 degree |
| Pressure | not supaass 1.0MPa |
| Speed | Up to 3000R/MIN |
| Face | SIC,TC |
| Seat | Carbon ,Sic,TC |
| Elastomer | NBR,EPDM,VITON, |
| Spring | SS304 SS316 |
| Metal parts | SS304 SS316 |

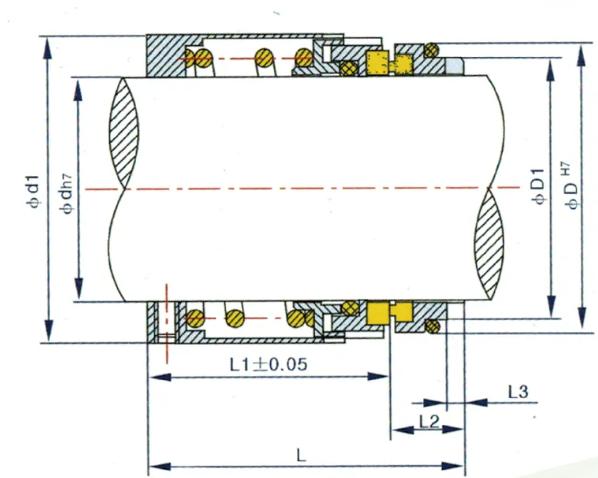

| SIZE | d | D | D1 | D2 | L | L1 | L2 | L3 |
| 20 | 20 | 40 | 30 | 37 | 63 | 44 | 16 | 58 |
| 22 | 22 | 42 | 32 | 39 | 67 | 48 | 20 | 62 |
| 25 | 25 | 45 | 35 | 42 | 67 | 48 | 20 | 62 |
| 30 | 30 | 50 | 40 | 52 | 75 | 56 | 22 | 70 |
| 35 | 35 | 55 | 45 | 57 | 79 | 60 | 26 | 74 |
| 40 | 40 | 60 | 50 | 62 | 83 | 64 | 30 | 78 |
| 45 | 45 | 65 | 55 | 67 | 90 | 71 | 36 | 85 |
| 50 | 50 | 70 | 60 | 72 | 94 | 75 | 40 | 89 |
| 55 | 55 | 70 | 60 | 77 | 94 | 75 | 40 | 89 |
| 60 | 60 | 80 | 70 | 82 | 96 | 77 | 42 | 91 |
| 65 | 65 | 90 | 80 | 92 | 111 | 89 | 50 | 106 |
| 70 | 70 | 97 | 85 | 97 | 116 | 91 | 52 | 110 |
| 75 | 75 | 102 | 90 | 102 | 116 | 91 | 52 | 110 |
| 80 | 80 | 107 | 95 | 107 | 123 | 98 | 59 | 117 |
| 85 | 85 | 112 | 100 | 112 | 125 | 100 | 59 | 119 |
| 90 | 90 | 117 | 105 | 117 | 126 | 101 | 60 | 120 |
| 100 | 100 | 127 | 115 | 127 | 126 | 101 | 60 | 120 |
