2100, 2102, 2103 Replacement To John Crane 2100 Aesseal B05 Seal For Multi Water Pump
Price:
consult
MOQ:
30/PCS
Delivery Time:
5-8 word days
Brand:
YUE MI
Product Description
Mechanical Seal T2100
Replacement to:
John Crane 2100S, Hermetica M212.K, Flowserve 140, AESSEAL B05U, AESSEAL B05,Vulcan 14DIN, US SEAL G, Sterling 540, LIDERING LRB25
Operational Conditions:
- John Crane seal 2100 is structural simple and reliable. It has a wide application scope.
2100, mechanical seal is suitable for clean water pumps, sewage pumps, submerged pumps, process pumps, etc.
This also can provide important material certifications available. Salvador, Senior, Sandy. - Temperature: -40ºC to 150ºC, depend on o-ring material
- Pressure: Up to 2 bar
- Speed: Up to 13 m/s
- End play/axial float allowance ±1mm
- Materials:
- Stationary Ring: Ceramic, Silicon Carbide, TC
- Rotary Ring: Carbon, Silicon Carbide
- Secondary Seal: NBR, EPDM, , PTFE
- Spring and Metal Parts: Steel
- 3. Seat Type:2100
- 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
Performance Capabilities:
|
Temperature
|
-40ºC to 150ºC, dependent on the elastomer
|
|
Pressure
|
≤2.0MPa |
|
Speed
|
≤13m/s |
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
14-100MM
|
|
Brand
|
yuemi
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Ceramic, SiC, TC
|
|
Elastomer
|
NBR, EPDM, etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|

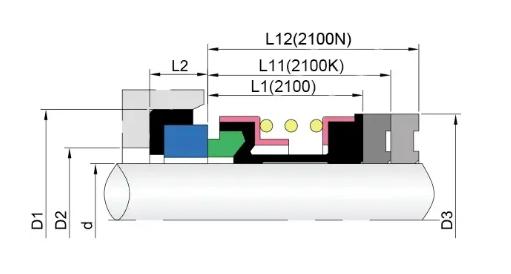

| Metric | d | D3 | D2 | D1 | L1 | L11 | L12 | L2 | Size/ | d | D3 | L1 |
| Inch | ||||||||||||
| 10 | 10 | 20 | 15 | 21 | 15 | 27.5 | 35 | 5 | 0.375 | 9.5 | 20 | 15 |
| 12 | 12 | 22 | 17 | 23 | 15 | 26.5 | 34 | 6 | 0.500 | 12.7 | 24 | 15 |
| 14 | 14 | 24 | 19 | 25 | 15 | 29 | 34 | 6 | 0.625 | 15.8 | 26 | 15 |
| 15 | 15 | 25 | 20 | 26 | 15 | 29 | 34 | 6 | 0.750 | 19 | 32 | 20 |
| 16 | 16 | 26 | 23 | 27 | 15 | 29 | 34 | 6 | 0.875 | 22.2 | 36 | 20 |
| 18 | 18 | 32 | 25 | 33 | 20 | 31.5 | 39 | 6 | 1.000 | 25.4 | 38 | 20 |
| 20 | 20 | 34 | 27 | 35 | 20 | 31.5 | 39 | 6 | 1.125 | 28.5 | 42.3 | 26 |
| 22 | 22 | 36 | 29 | 37 | 20 | 31.5 | 39 | 6 | 1.250 | 31.7 | 46 | 26 |
| 24 | 24 | 38 | 31 | 39 | 20 | 34 | 44 | 6 | 1.375 | 34.9 | 49 | 26 |
| 25 | 25 | 39 | 32 | 40 | 20 | 34 | 44 | 6 | 1.500 | 38.1 | 54 | 30 |
| 28 | 28 | 42 | 35 | 43 | 26 | 36.5 | 44 | 6 | 1.625 | 41.2 | 56 | 30 |
| 30 | 30 | 44 | 37 | 45 | 26 | 35.5 | 43 | 7 | 1.750 | 44.4 | 61 | 30 |
| 32 | 32 | 46 | 40 | 48 | 26 | 35.5 | 48 | 7 | 1.875 | 47.6 | 64 | 30 |
| 33 | 33 | 47 | 40 | 48 | 26 | 35.5 | 48 | 7 | 2.000 | 50.8 | 66 | 30 |
| 35 | 35 | 49 | 42 | 50 | 26 | 34.5 | 47 | 8 | 2.125 | 53.9 | 69 | 30 |
| 38 | 38 | 54 | 47 | 56 | 30 | 37 | 47 | 8 | 2.250 | 57.1 | 77 | 33 |
| 40 | 40 | 56 | 49 | 58 | 30 | 37 | 47 | 8 | 2.375 | 60.3 | 80 | 33 |
| 43 | 43 | 59 | 52 | 61 | 30 | 37 | 52 | 8 | 2.500 | 63.5 | 83 | 33 |
| 45 | 45 | 61 | 54 | 63 | 30 | 37 | 52 | 8 | 2.625 | 66.6 | 88 | 33 |
| 48 | 48 | 64 | 57 | 66 | 30 | 35 | 50 | 10 | 2.750 | 69.8 | 89 | 33 |
| 50 | 50 | 66 | 60 | 70 | 30 | 37.5 | 50 | 10 | 2.875 | 73 | 96 | 33 |
| 53 | 53 | 69 | 63 | 73 | 30 | 37.5 | 60 | 10 | 3.000 | 76.2 | 99 | 40 |
| 55 | 55 | 71 | 65 | 75 | 30 | 37.5 | 60 | 10 | 3.125 | 79.3 | 103 | 40 |
| 58 | 58 | 78 | 68 | 78 | 33 | 42.5 | 60 | 10 | 3.250 | 82.5 | 104 | 40 |
| 60 | 60 | 80 | 70 | 80 | 33 | 40.5 | 58 | 12 | 3.375 | 85.7 | 108 | 40 |
| 63 | 63 | 83 | 73 | 83 | 33 | 40.5 | 58 | 12 | 3.500 | 88.9 | 112 | 40 |
| 65 | 65 | 85 | 75 | 85 | 33 | 40.5 | 68 | 12 | 3.625 | 92 | 114 | 40 |
| 68 | 68 | 88 | 79 | 90 | 33 | 40.5 | 68 | 12 | 3.750 | 95.2 | 118 | 40 |
| 70 | 70 | 90 | 81 | 92 | 33 | 48 | 68 | 12 | 3.875 | 98.4 | 122 | 40 |
| 75 | 75 | 99 | 86 | 97 | 40 | 48 | 68 | 12 | 4.000 | 101.6 | 124 | 40 |
| 80 | 80 | 104 | 92 | 105 | 40 | 47.5 | 77.5 | 12.5 | ||||
| 85 | 85 | 109 | 97 | 110 | 40 | 47.5 | 77.5 | 12.5 | ||||
| 90 | 90 | 114 | 102 | 115 | 40 | 52.5 | 77.5 | 12.5 | ||||
| 95 | 95 | 119 | 117 | 120 | 40 | 52.5 | 77.5 | 12.5 | ||||
| 100 | 100 | 124 | 122 | 125 | 40 | 52.5 | 77.5 | 12.5 |
.
