China 59U-107 Series John Crane 59u Mechanical Seal for Ebara Pump for Water Pump for sale

59U-107 Series John Crane 59u Mechanical Seal for Ebara Pump for Water Pump

Price Negotiable

Price: consult

MOQ: 15/PCS

Delivery Time: 5-8 word days

Brand: YUE MI

Product Description

DETAILS

Performance Capabilities	Materials combination
Temperature: -50°C to 500°C, dependent on the o-ring material	Face: Carbon, SiC, TC
Pressure: Up to 10bar (unbalance type)	Seat: Ceramic,SiC, TC
Speed: Up to 20 m/s	O-ring: PTFE
End play/axial float allowance: ±0.1mm	Spring: SS316,SS304, hastelloy C
Size: 1" TO 4"	Metal parts: SS316,SS304

Model	Parameter			Operating Condition	Material
Model	Temperature	Pressure	Speed	Operating Condition	Rotary Ring	Stationary Ring	Auxiliary Seal	Spring & Other parts
58U	-20 to 200ºC	<=1.7MPa	<=25m/sec	Used in different pumps, mixers, and other rotating equipments	Sic/TC	Machined Carbon/SIC/ TC	PTFE/ PTFE+Viton	SUS 304/ 316

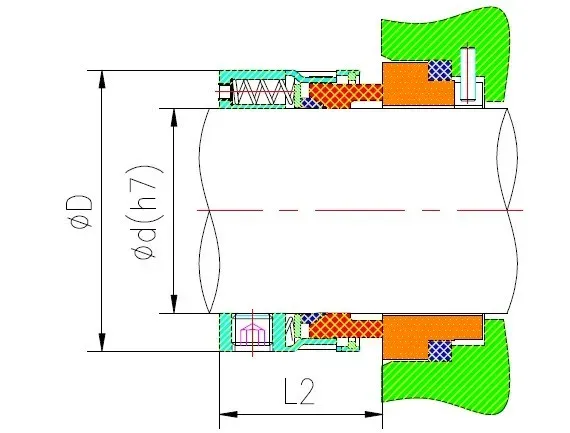

Model	D1	D3	D4	D6	D7	D8	D35	L	L3	L4	L5	L6	L7	L8	L9	L10
YM 58U-14	14	24	26	21	25	2	6.5	35	23	12	1.5	4	8.5	12.5	4	18
YM 58U-16	16	26	28	23	27	2	6.5	35	23	12	15	4	8.5	12.5	4	18
YM 58U-18	18	32	34	27	35	3	6.5	37.5	24	13.5	2	5	9	14.5	5	20
YM 58U-20	20	34	36	29	35	3	6.5	37.5	24	13.5	2	5	9	14.5	5	20
YM 58U-22	22	36	38	31	37	3	6.5	37.5	24	13.5	2	5	9	14.5	5	20
YM 58U-24	24	38	40	33	39	3	6.5	40	26.7	13.3	2	5	9	14.5	5.7	19.8
YM 58U-25	25	39	41	34	40	3	6.5	40	27	13	2	5	9	14	5	19.5
YM 58U-28	28	42	44	37	43	3	6.5	42.5	30.5	12	2	5	9	13.5	7.5	19
YM 58U-30	30	44	46	39	45	3	6.5	42.5	30.5	12	2	5	9	13	7.5	18.5
YM 58U-32	32	46	48	42	48	3	6.5	42.5	30.5	12	2	5	9	13	7.5	18.5
YM 58U-33	33	47	49	42	48	3	6.5	42.5	30.5	12	2	5	9	13	6.5	18.5
YM 58U-35	35	49	51	44	50	3	6.5	42.5	30.5	12	2	5	9	13	6.5	18.5
YM 58U-38	38	54	58	49	56	4	6.5	45	32	13	2	6	9	14	8	19.5
YM 58U-40	40	56	60	51	58	4	6.5	45	32	13	2	6	9	14	8	19.5
YM 58U-43	43	50	63	54	61	4	6.5	45	32	13	2	6	9	14	8	19.5
YM 58U-45	45	61	65	56	63	4	6.5	45	32	13	2	6	9	14	8	19.5
YM 58U-48	48	64	68	59	66	4	6.5	45	32	13	2	6	9	14	5.5	19.5
YM 58U-50	50	66	70	62	70	4	6.5	47.5	34	13.5	2.5	6	9	14	5.5	20
YM 58U-53	53	69	73	65	73	4	6.5	47.5	34	13.5	2.5	6	9	14.5	5.5	20
YM 58U-55	55	71	75	67	75	4	6.5	47.5	34	13.5	2.5	6	9	14.5	5.5	20
YM 58U-58	58	78	83	70	78	4	6.5	52.5	39	13.5	2.5	6	9	14.5	7.5	20
YM 58U-60	60	80	85	72	80	4	6.5	52.5	39	13.5	2.5	6	9	14.5	7.5	20
YM 58U-63	63	83	88	75	83	4	6.5	52.5	39	13.5	2.5	6	9	14.5	7.5	20
YM 58U-65	65	85	90	77	85	4	6.5	52.5	39	13.5	2.5	6	9	14.2	7.5	20
YM 58U-68	68	88	93	81	90	4	6.5	52.5	39	13.5	2.5	7	9	14.2	7.5	20
YM 58U-70	70	90	95	83	92	4	6.5	60	45.5	14.5	2.5	7	9	15.2	7.5	21
YM 58U-75	75	95	104	88	97	4	6.5	60	45.5	14.5	2.5	7	9	15.2	7.8	21
YM 58U-80	80	104	109	95	105	4	9.5	60	45	15	3	7	9	15.7	7.8	21.5
YM 58U-85	85	109	114	100	110	4	9.5	60	45	15	3	7	9	15.7	7.8	21.5
YM 58U-90	90	114	112	105	115	4	9.5	65	50	15	3	7	9	157	7.8	21.5
YM 58U-95	95	119	124	110	120	4	9.5	65	50	15	3	7	9	15.7	7.8	21.5
YM 58U-100	100	124	129	115	125	4	9.5	65	50	15	3	7	9	15.7	7.8	21.5
