Imo Pump Ace Acg Mechanical Seal 194030 ,190497,for Chemical Water Pump Coil Spring Seal
Price:
consult
MOQ:
15/PCS
Delivery Time:
5-8 word days
Brand:
YUE MI
Product Description
pump mechanical seal parts-22mm
triple rotors screw pump
fuel oil supply system for ship in marine
ACE ACG series
high temp. mechanical seals.
Imo pump mechanical seal parts-22mm
1. IMO ACE025L3 pump to suit mechanical shaft seal 195C-22mm, Imo 190495 (wave spring)
2. IMO-190497 ACE pump mechanical seal for marine industry, Imo 190497 (coil spring)
3. IMO ACE 3 pump spare parts shaft seal 194030, Imo 194030 (coil spring)

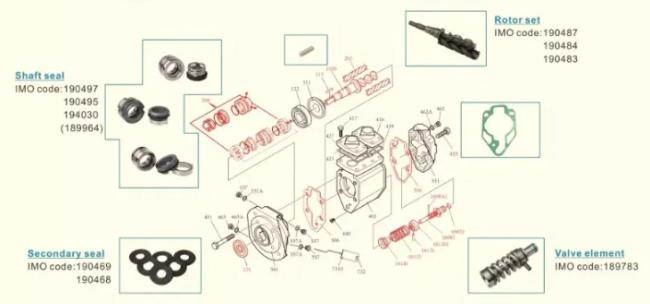

We can provide follow IMO ACE 3 gereration pump spare parts.
Code: 190497,190495,194030,190487,190484,190483,189783.
IMO ACE 3 pump spare parts secondary seal 190468,190469.
|
22mm Lidering mechanical seal 190497 for IMO Pump ACE 3
|
||
|
Operational Condtions
|
Size
|
Material
|
|
Temperature: -40ºC to 220ºC dependent on the elastomer
|
22MM
|
Face: SS304,SS316
|
|
Pressure: Up to Up to 25 bar
|
Seat: Carbon
|
|
|
Speed:Up to 25 m/s
|
O-rings: NBR, EPDM, VIT, Aflas, FEP, Kalrez, Chemraz etc.
|
|
|
End Play /axial float Allowance:±1.0mm
|
Metal parts: SS304,SS316, hastelloy C, AM350
|
|
