Flygt Pump Ready 24/2066/3080 Mechanical Seal Spare Parts for Flygt Pumps
Price:
consult
MOQ:
10/PCS
Delivery Time:
5-8 work days
Brand:
YUE MI
Product Description
Operating Parameters
The working pressure is ≤ 1.2 MPa.
Linear velocity (V): The maximum allowed linear velocity is generally ≤ 10 m/s.
The applicable temperature range is typically between -30°C and 180°C.
Rotating ring: Graphite / Silicon carbide / Tungsten carbide
Stationary ring: Ceramic / Silicon carbide / Tungsten carbide
Auxiliary seal: Nitrile rubber / Ethylene propylene diene monomer (EPDM) rubber / Fluorine rubber
Spring and other components: Stainless steel (SS304 / SS316)
Linear velocity (V): The maximum allowed linear velocity is generally ≤ 10 m/s.
The applicable temperature range is typically between -30°C and 180°C.
Rotating ring: Graphite / Silicon carbide / Tungsten carbide
Stationary ring: Ceramic / Silicon carbide / Tungsten carbide
Auxiliary seal: Nitrile rubber / Ethylene propylene diene monomer (EPDM) rubber / Fluorine rubber
Spring and other components: Stainless steel (SS304 / SS316)
Mainly used in water, sewage, oils, and other weakly corrosive liquids.
Wear-resistant and corrosion-resistant: The selected material combination ensures a long service life for the sealing element.
Easy installation: The standardized design makes the installation process relatively simple.
Easy installation: The standardized design makes the installation process relatively simple.
DETAILS
| For Flygt pump | ready24/2024/21012075/2066/3065/3080. |
| Shaft Size | 20mm |
| Material | TC/TC/VIT |
|

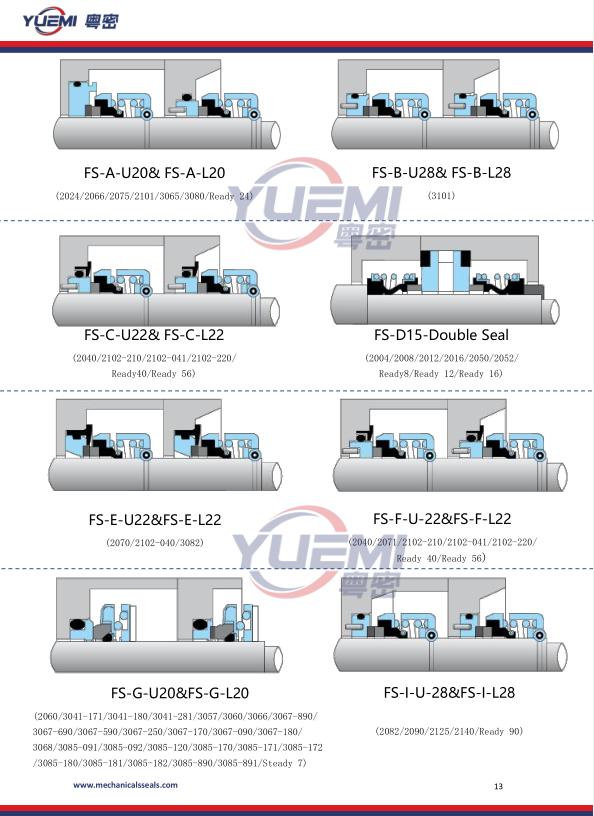

FAU20/FAL20 Instead of Original FLYGT Pump Ready 24/2066/2075/2101/3065/3080 Mechanical Seals
|
||
|
Operational Condtions
|
Size
|
Material
|
|
Temperature:
-30ºC to 200ºC dependent on the elastomer
|
20mm
|
Face: Carbon, SiC, TC
|
|
Pressure:Up to 12 bar
|
Seat: Ceramic, SiC, TC
|
|
|
Speed:Up to 12 m/s
|
Elastomer:NBR, EPDM, FKM, Aflas, FEP, FFKM
|
|
|
End Play /axial float Allowance:±0.1mm
|
Other Metal Parts : SS304, SS316
|
|
