Premium Type 1 Mechanical Pump Seal for Industrial Use Mission Pump Seal
Price:
consult
MOQ:
10/PCS
Delivery Time:
20 work days
Brand:
YUE MI
Product Description

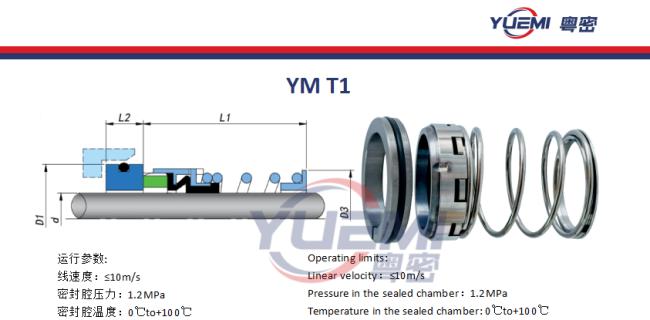

| d(mm) | d | D1 | D3 | L1 | L2 |
| 2.500 | 63.50 | 87.73 | 80.95 | 63.50 | 14.27 |
| 3.500 | 88.90 | 111.13 | 111.00 | 79.38 | 19.84 |
Type1 Mechanical Seal Key Parameters
| Parameter Category | Specifications | |
|---|---|---|
| Model | Type1 (Single-End Non-Balanced, Elastomer Bellows Design) | |
| Shaft Diameter Range | Customizable for non-standard sizes | |
| Pressure Limit | ≤1.2 MPa (Standard) | |
| Temperature Range | -20°C to 200°C (Depends on elastomer: NBR/FKM/EPDM) | |
| Face Materials | Silicon Carbide (SiC) / Tungsten Carbide (WC) / Alumina Ceramic (AlO) | |
| Secondary Seals | Nitrile (NBR) / Fluorocarbon (FKM) / Ethylene Propylene (EPDM) | |
| Compatible Media | Water, Oil, Mildly Corrosive Liquids (Requires flushing for abrasive media) | |
| Key Design Features | - Elastomer bellows for axial flexibility - Spring-driven, bidirectional rotation support |
|
| Installation Requirements | - Shaft radial runout ≤0.04 mm - Clean sealing chamber - Avoid dry running |
Pump Compatibility Chart
| Pump Type | Compatible Type1 Models | Application Scenarios |
|---|---|---|
| Centrifugal Pumps | Type1-25, Type1-30, Type1-35 | Water supply, chemical transfer |
| Submersible Pumps | Type1-38, Type1-50 | Wastewater treatment, marine applications |
| Chemical Process Pumps | Type1-1.125", Type1-1.5" (Custom sizes) | Acid/alkali handling, reactors |
| API-Compliant Pumps | Type1-2100 Series (e.g., 2100-25, 2100-40) | Oil refineries, high-pressure systems |
| Boiler Feed Pumps | Type1-65, Type1-70 | Power plants, steam systems |
Product Description
| Parameter | Value/Description | Unit/Note |
|---|---|---|
| Model | YM-TYPE1 | - |
| Seal Type | Single Mechanical Seal | Spring-loaded unbalanced design |
| Face Materials | - Primary: Carbon Steel (Hardened) - Secondary: Graphite |
Hardness: ≥200 HB (Primary) |
| Housing Material | Cast Iron | Cost-effective for non-corrosive media |
| Pressure Range | 0 - 0.6 | MPa |
| Suitable for small to medium shafts | ||
| Maximum Rotational Speed | 2800 | RPM |
| Leakage Rate | ≤8.0 | ml/h |
| Media Compatibility | Water, Light Oils, Non-Corrosive Liquids | Not for abrasive or high-temperature applications |
| Installation Type | Split-Style | Tool-free field installation |
| Basic industrial sealing requirements |
